Hydraulic Hoses, Push Button Shift Transmission, HillMaster™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1031	1	Tee Fitting	-
2	T77857	15	O-Ring	-
3	38H1323	4	Elbow Fitting	-
4	38H1393	2	Elbow Fitting	-
5	T77613	7	O-Ring	-
6	H77698	3	Tie Band	-
7	T78716	5	Nut	-
8	38H1532	1	Tee Fitting	-
9	T77858	1	O-Ring	-
10	14M7303	3	Flange Nut	M6
11	19M7866	4	Screw	M8 X 20
12	AXE42683	1	Oil Line	-
13	38H1205	1	Tee Fitting	-
14	HXE59900	3	Cover	-
15	19M7865	4	Screw	M8 X 16
16	HXE57315	2	Cover	-
17	19M7796	3	Screw	M6 X 30
18	HXE57312	4	Clamp	-
19	19M7799	2	Screw	M8 X 45
20	HXE59899	6	Clamp	-
21	38H1275	1	Adapter Fitting	-
22	37M7092	1	Screw	M8 X 16
23	14M7298	8	Flange Nut	M8
24	H75541	1	Clamp	-
25	19M8317	3	Screw	M8 X 40
26	N61709	2	Bushing	-
27	AXE56028	1	Hydraulic Hose	LGTH = 3000 mm
28	AXE37987	4	Hydraulic Hose	LGTH = 340 mm
29	AXE43549	1	Hydraulic Hose	LGTH = 5620 mm
30	AXE43548	1	Hydraulic Hose	LGTH = 5120 mm
31	AH97280	5	Clip	-
32	AXE43712	1	Hydraulic Hose	LGTH = 670 mm
33	AXE56027	1	Hydraulic Hose	LGTH = 3505 mm
34	AXE57354	1	Hydraulic Hose	LGTH = 2940 mm
35	AXE37983	1	Hydraulic Hose	LGTH = 2325 mm
36	AXE42686	1	Hydraulic Hose	LGTH = 2090 mm
37	AXE37984	1	Hydraulic Hose	LGTH = 2430 mm
38	AXE57356	1	Hydraulic Hose	LGTH = 1950 mm
39	AXE37988	2	Hydraulic Hose	LGTH = 440 mm
40	AH96317	1	Clip	-
41	AH77884	1	Clip	-
42	R50454	4	Clamp	-
43	T81029	2	Nut	-
44	AXE48779	1	Oil Line	-
45	AXE48777	1	Oil Line	-
46	AXE48776	1	Oil Line	-
47	AXE48819	1	Oil Line	-
48	AXE48818	1	Oil Line	-
49	H168854	3	Clamp	-
50	R49921	5	Clamp	-
51	HXE30219	2	Spacer	-
52	03M7221	2	Bolt	M6 X 16
53	H224073	1	Tie Band	-
54	03M7091	1	Bolt	M6 X 40
55	Z40677	1	Guard	-
56	H159104	1	Washer	-
57	19M7868	1	Screw	M8 X 30

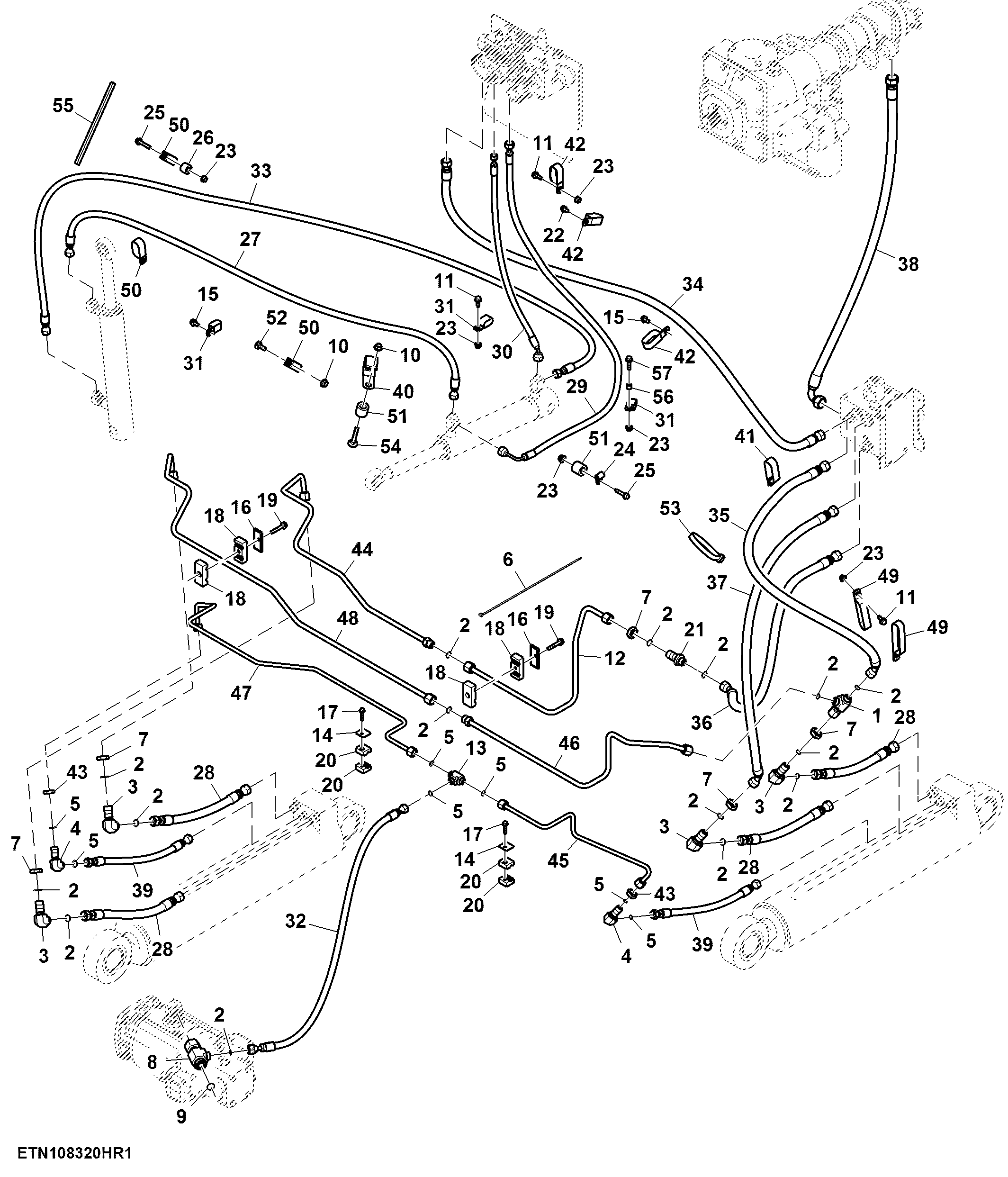

Hydraulic Hoses, Push Button Shift Transmission, HillMaster™
