Открытый узел

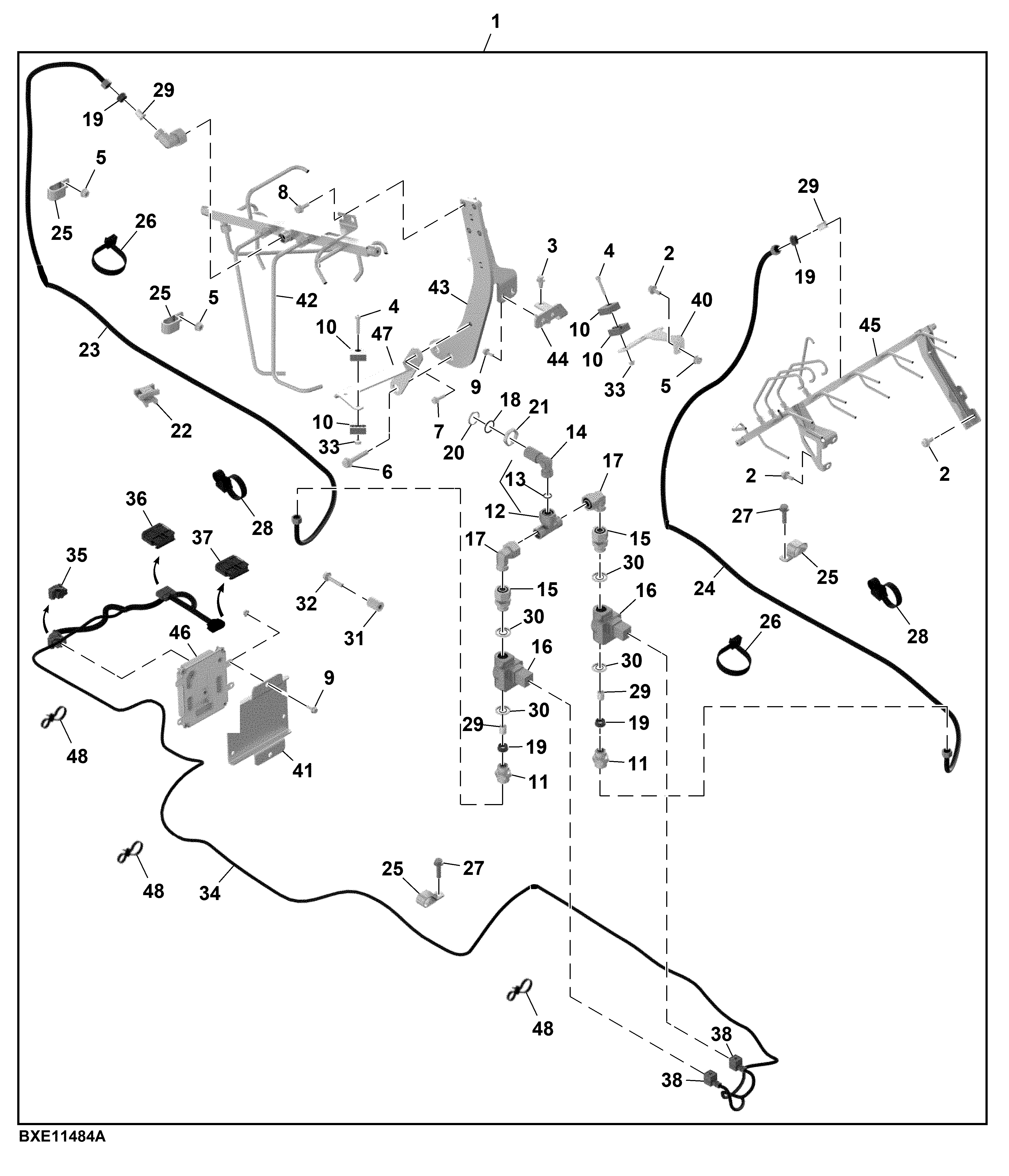

Active Air Cleaning System, Engine, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE11484	1	Device Kit	-
2	19M7865	5	Screw	M8 X 16
3	37M7092	2	Screw	M8 X 16
4	19M8263	5	Screw	M6 X 30
5	14M7298	3	Flange Nut	M8
6	19M10175	2	Screw	M14 X 70
7	19M7862	1	Screw	M6 X 20
8	19M7866	4	Screw	M8 X 20
9	19M7775	6	Screw	M6 X 16
10	HXE156336	10	Clamp	-
11	HXE174421	2	Adapter Fitting	-
12	WY22074	1	Tee Fitting	-
13	WY11862	1	O-Ring	-
14	L116495	1	Fitting	-
15	HXE174423	2	Adapter Fitting	-
16	AXE90230	2	Pneumatic Control Valve	-
17	HXE69105	3	Elbow Fitting	-
18	L53827	1	Ring	-
19	Z51242	4	Sleeve Fitting	-
20	L80376	1	Thrust Washer	-
21	14M7493	1	Nut	M22
22	AN209168	2	Swivel	-
23	HXE175486	1	Hose	LGTH = 4300 mm
24	HXE175485	1	Hose	LGTH = 4000 mm
25	AH97280	6	Clip	-
26	H224073	4	Tie Band	-
27	19M7868	3	Screw	M8 X 30
28	R213663	2	Clamp	-
29	HXE177108	4	Adapter Fitting	-
30	WZ1443003	4	Sealing Washer	-
31	H130269	1	Spacer	-
32	19M8317	1	Screw	M8 X 40
33	H137327	9	Lock Nut	-
34	AXE91152	1	Wiring Harness	Active Air Cleaning System
35	57M10613	1	Elec. Connector Housing	-
35	57M10334	4	Elec. Connector Cavity Plug	Cavity L3, M2, M3, M4
35	57M10333	35	Elec. Connector Cavity Plug	Cavity A2, A3, A4, B2, B3, B4, C1, C2, C3, C4, D1, D2, D3, D4, E1, E2, E3, E4, F1, F2, F3, G1, G2, G4, H1, H2, H3, H4, J1, J2, J3, J4, K1, K2, K3
35	57M10330	3	Elec. Connector Terminal	Cavity F4, G3, K4
35	57M10514	2	Elec. Connector Terminal	Cavity A1, B1
35	57M10615	1	Elec. Connector Housing	M50
35	57M10617	4	Elec. Connector Housing	Cavity L1, L2, L4, M1
36	57M8323	4	Elec. Connector Terminal	Cavity G, H, K, P
36	57M11996	1	Elec. Connector Accessory	-
36	57M9446	1	Elec. Connector Seal	Cavity L
36	57M8329	2	Electrical Connector Assy	Cavity A, J
36	57M9223	8	Elec. Connector Seal	Cavity B, C, D, E, F, M, N, R
36	57M8324	1	Elec. Connector Terminal	Cavity S
36	57M9539	4	Elec. Connector Terminal	Cavity B, C, M, N
36	57M8309	1	Elec. Connector Terminal	Cavity S
36	57M8307	1	Elec. Connector Terminal	Cavity H
36	57M8301	2	Elec. Connector Terminal	Cavity G, P
36	57M11366	1	Elec. Connector Terminal	Cavity K
36	57M10794	4	Elec. Connector Terminal	Cavity D, E, F, R
36	57M8281	1	Elec. Connector Housing	-
37	57M8613	4	Elec. Connector Terminal	Cavity G, H, K, R
37	57M11996	1	Elec. Connector Accessory	-
37	57M9446	1	Elec. Connector Seal	Cavity L
37	57M8329	2	Electrical Connector Assy	Cavity A, J
37	57M9223	7	Elec. Connector Seal	Cavity B, C, D, E, F, M, N
37	57M8603	5	Elec. Connector Seal	Cavity G, H, K, P, R
37	57M8618	4	Elec. Connector Terminal	Cavity E, F, M, N
37	57M8602	1	Elec. Connector Terminal	Cavity P
37	57M8560	3	Elec. Connector Terminal	Cavity B, C, D
37	57M8304	1	Elec. Connector Terminal	Cavity S
37	57M8156	1	Elec. Connector Housing	-
37	57M8324	1	Elec. Connector Terminal	Cavity S
38	57M10890	1	Elec. Connector Housing	Ventil 1
38	57M13059	1	Elec. Connector Accessory	-
39	57M13059	1	Elec. Connector Accessory	-
39	57M10890	1	Elec. Connector Housing	Ventil 2
40	HXE178638	1	Support	-
41	HXE180438	1	Bracket	-
42	AXE92782	1	Air Duct	-
43	AXE92784	1	Support	-
44	AXE92786	1	Support	-
45	AXE92690	1	Air Duct	-
46	AXE92716	1	Electronic Control Unit	-
47	HXE179568	1	Support	-
48	57M10421	1	Elec. Connector Accessory	-

Active Air Cleaning System, Engine, Attachment

Нет текстового описания
