Открытый узел

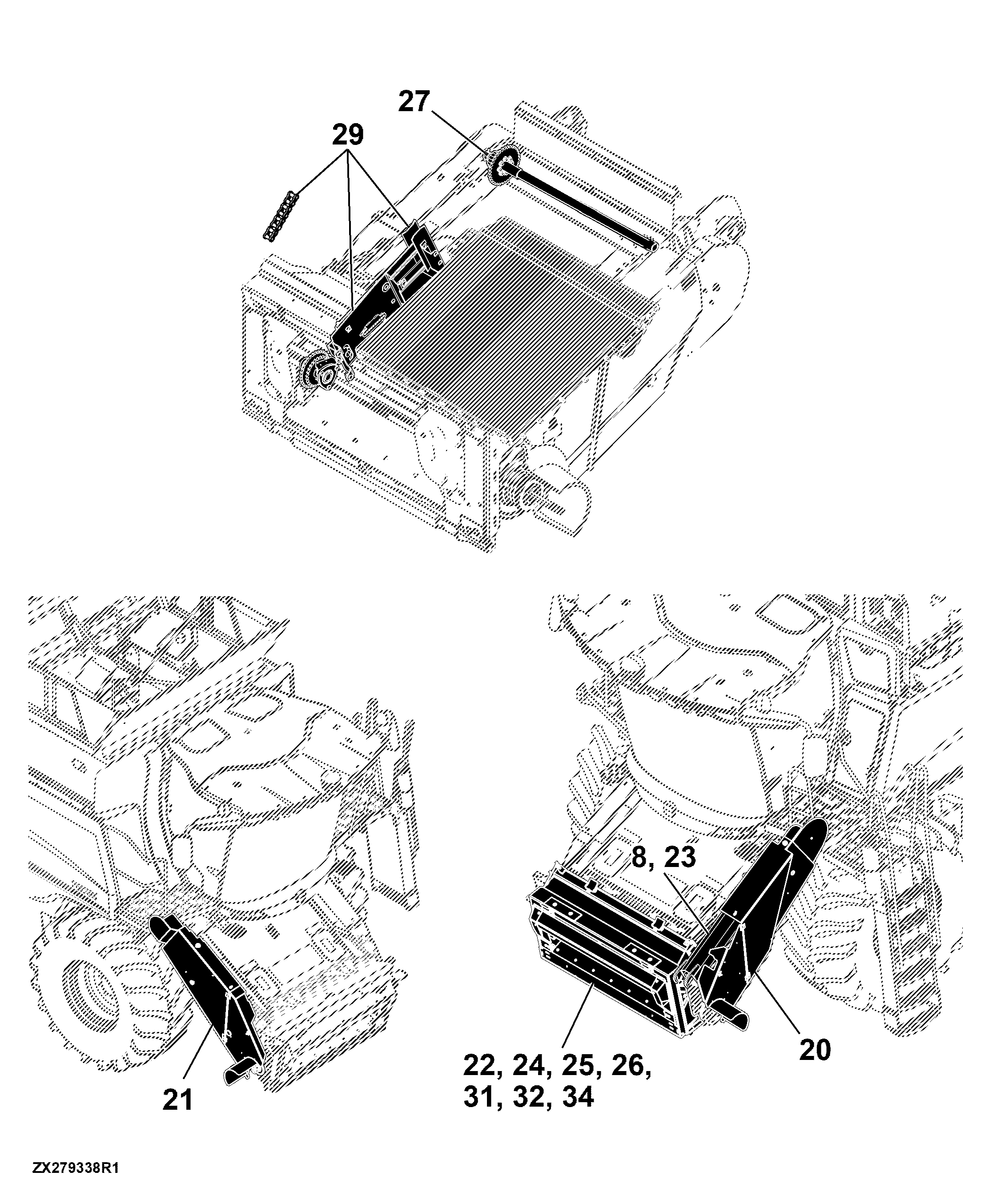

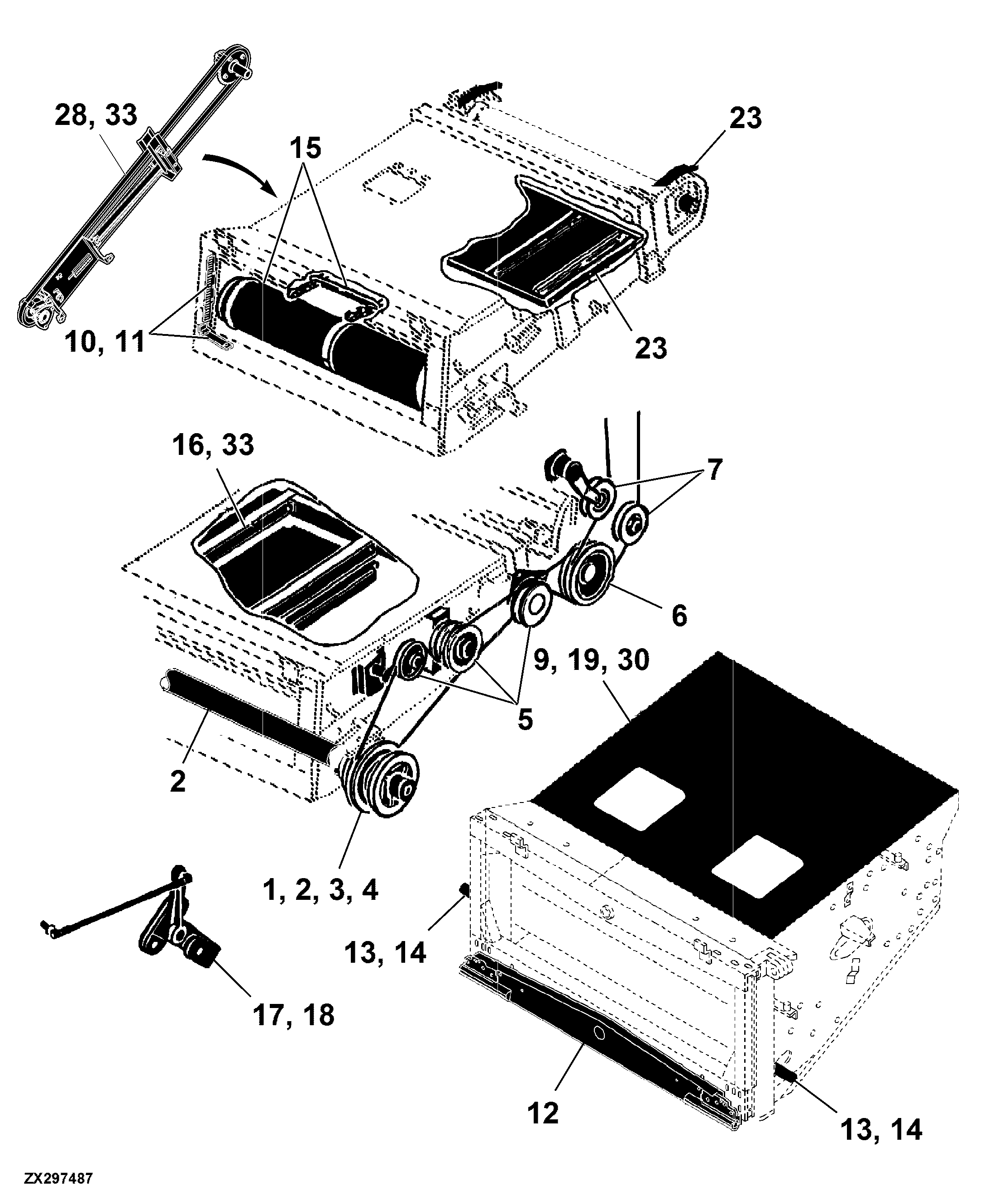

110 Feeder House Combine W650 - MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Reverser Transmission Housing	-
-	-	1	Frame, Deflector, Lateral Tilt	-
-	-	1	Lateral Tilt Sensor	-
-	-	1	Left Hand Drive Shield	-
-	-	1	Mat, Anti-Skid Pad, Feeder House	-
-	-	1	Mounting Parts For Central Locking On Feeder House, Lateral Tilt	-
-	-	1	Mounting Parts For Central Locking On Feeder House, Standard Version	-
-	-	1	Pulley and Reverser Transmission Mounting Parts, Heavy-Duty	-
-	-	1	Reverser Transmission	-
-	-	1	Reverser Transmission and Lower Feeder House Shaft	-
-	-	1	Fixed Speed Feeder House Drive Tightener	-
-	-	1	Right Hand Drive Shield	-
-	-	1	Safety Decals And Locations	-
-	-	1	Seal, Bracket on Feeder House for Lateral Tilt	-
-	-	1	Seal, Conveyor Drum Brush On Feeder House	-
-	-	1	Seal, Conveyor Drum Brush On Feeder House For Lateral Tilt	-
-	-	1	Shield, Road Drive	-
-	-	1	Shield, Road Drive, Attachment	-
-	-	1	Upper Feeder House Frame, Shaft, Sheave and Bearing	-
-	-	1	Upper Feeder House Shaft And Slip Clutch	-
-	-	1	Feeder House Floor and Latch Handle	-
-	-	1	Feeder Conveyor Drive Chain And Idler Bracket	-
-	-	1	Feeder Conveyor Idler Shaft, Drum and Chain	-
-	-	1	Feeder House - Deflector Sheet and Stripper, Standard	-
-	-	1	Feeder House - Mechanical Lock	-
-	-	1	Feeder House Drive Shield, LH (For Russia)	-
-	-	1	Feeder House Drive Shield, RH (For Russia)	-
-	-	1	Feeder House Drive Tightener	-
-	-	1	Feeder House Drives, RH	-
-	-	1	Feeder House Drives, RH, HillMaster™	-
-	-	1	Attachment, Perforated Feeder House Bottom Plate	-
-	-	1	Feeder House Frame	-
-	-	1	Feeder House Frame	-
-	-	1	Feeder House Frame, Tilt Control	-
-	-	1	Feeder House Position Sensor	-
-	-	1	Feeder House Ram Stop, Heavy Duty	-
-	-	1	Feeder House Ram Stop, Heavy Duty	-
-	-	1	Feeder House Return Floor	-
-	-	1	Feeder House Top Inspection Door	-

110 Feeder House Combine W650 - MY14

Нет текстового описания
