Открытый узел

Chopper Drives, Front

Chopper Drives, Front

Chopper Drives, Front

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

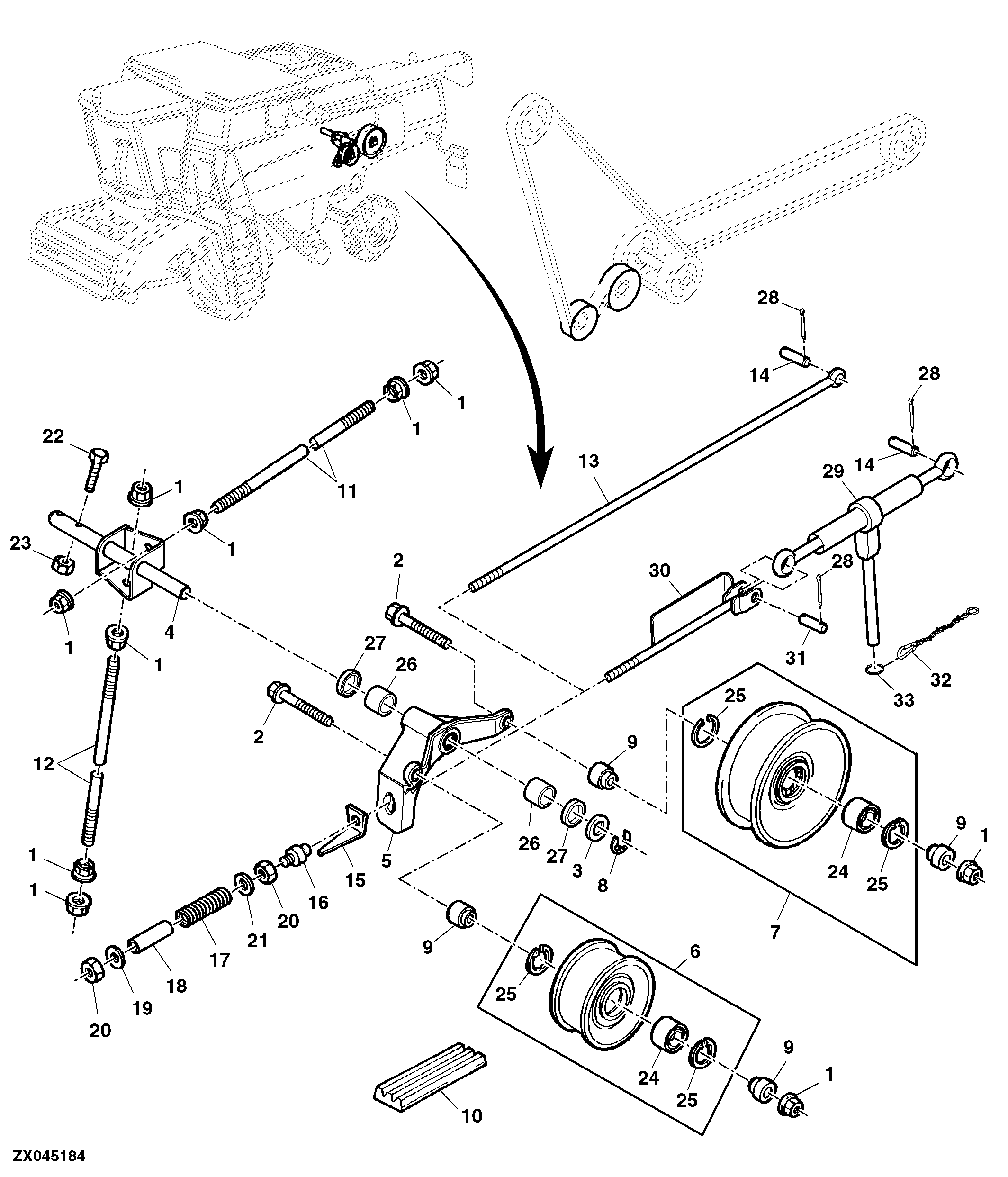

Chopper Drives, Front

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7291	1	Flange Nut	(For Dual Speed Straw Chopper Drive) M16
2	19M8610	2	Screw	(For Dual Speed Straw Chopper Drive) M16 X 110
3	24M7091	1	Washer	(For Dual Speed Straw Chopper Drive) 26 X 44 X 4 mm
4	AXE14380	1	Pin	(For Dual Speed Straw Chopper Drive)
5	AXE16429	1	Arm	(For Dual Speed Straw Chopper Drive)
6	AH173903	1	Idler	(For Dual Speed Straw Chopper Drive)
7	AZ53024	1	Idler	(For Dual Speed Straw Chopper Drive)
8	P46402	1	Snap Ring	(For Dual Speed Straw Chopper Drive)
9	Z69591	4	Spacer	(For Dual Speed Straw Chopper Drive)
10	H177177	1	V-Belt	(For Dual Speed Straw Chopper Drive) LGTH = 4640 MM
11	H202763	1	Rod	(For Dual Speed Straw Chopper Drive)
12	H176272	1	Rod	(For Dual Speed Straw Chopper Drive)
13	HXE23874	1	Eyebolt	(For Dual Speed Straw Chopper Drive)
14	HXE18869	1	Pin Fastener	(For Dual Speed Straw Chopper Drive) 18 X 64 mm (0.709" X 2.520")
15	Z59291	1	Pointer	(For Dual Speed Straw Chopper Drive)
16	H173900	1	Pivot	(For Dual Speed Straw Chopper Drive)
17	Z59288	1	Compression Spring	(For Dual Speed Straw Chopper Drive)
17	H86783	1	Compression Spring	(For Dual Speed Straw Chopper Drive)
18	H161813	1	Hose	(For Dual Speed Straw Chopper Drive)
19	24H1106	1	Washer	(For Dual Speed Straw Chopper Drive) 11/16" X 1-3/4" X 0.134"
20	14M7276	1	Nut	(For Dual Speed Straw Chopper Drive) M16
21	24M7053	1	Washer	(For Dual Speed Straw Chopper Drive) 17 X 30 X 3 mm
22	19M8292	1	Screw	(For Dual Speed Straw Chopper Drive) M10 X 50
23	14M7296	1	Flange Nut	(For Dual Speed Straw Chopper Drive) M10
24	AZ49176	1	Ball Bearing	(For Dual Speed Straw Chopper Drive)
25	40M1865	1	Snap Ring	(For Dual Speed Straw Chopper Drive)
26	H171061	2	Bushing	(For Dual Speed Straw Chopper Drive)
27	AA5607R	2	Seal	(For Dual Speed Straw Chopper Drive)
28	11M7023	1	Cotter Pin	(For Dual Speed Straw Chopper Drive) 4 X 32 mm
29	AXE11883	1	Adjuster	(For Dual Speed Straw Chopper Drive)
30	AXE11885	1	Rod	(For Dual Speed Straw Chopper Drive)
31	HXE13455	1	Pin Fastener	(For Dual Speed Straw Chopper Drive)
32	AZ100116	1	Safety Chain	(For Dual Speed Straw Chopper Drive)
33	H174818	1	Ring	(For Dual Speed Straw Chopper Drive)
