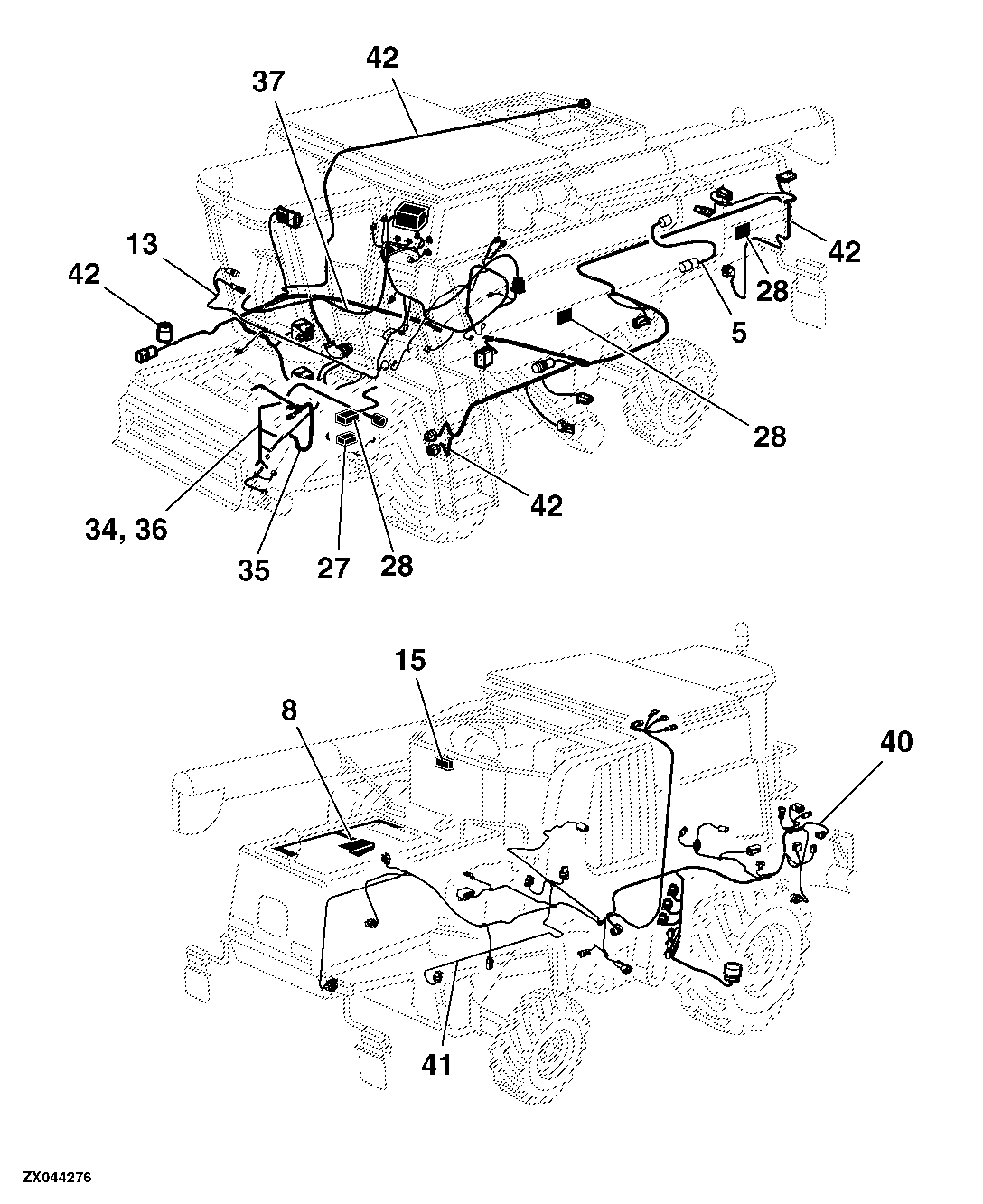

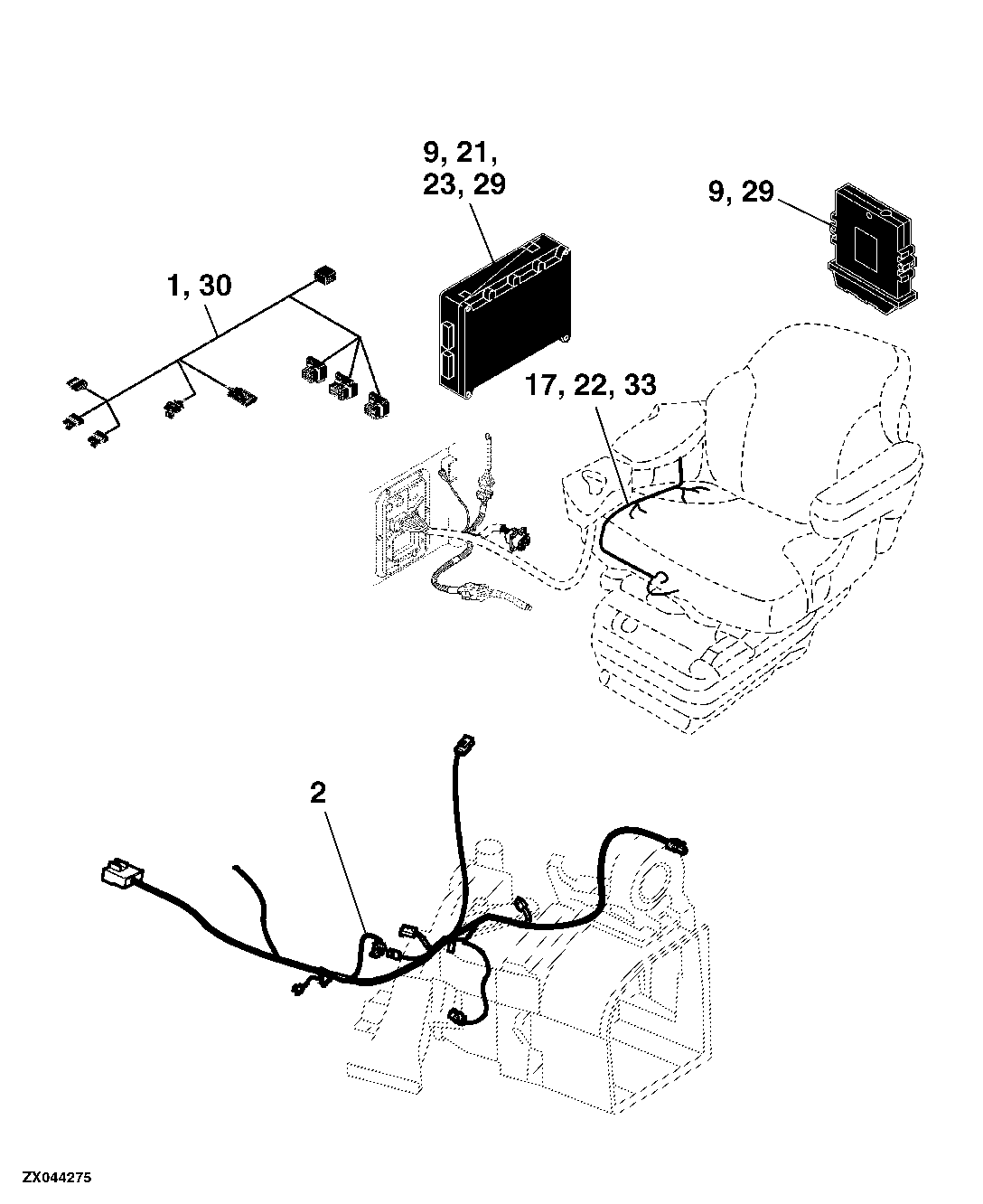

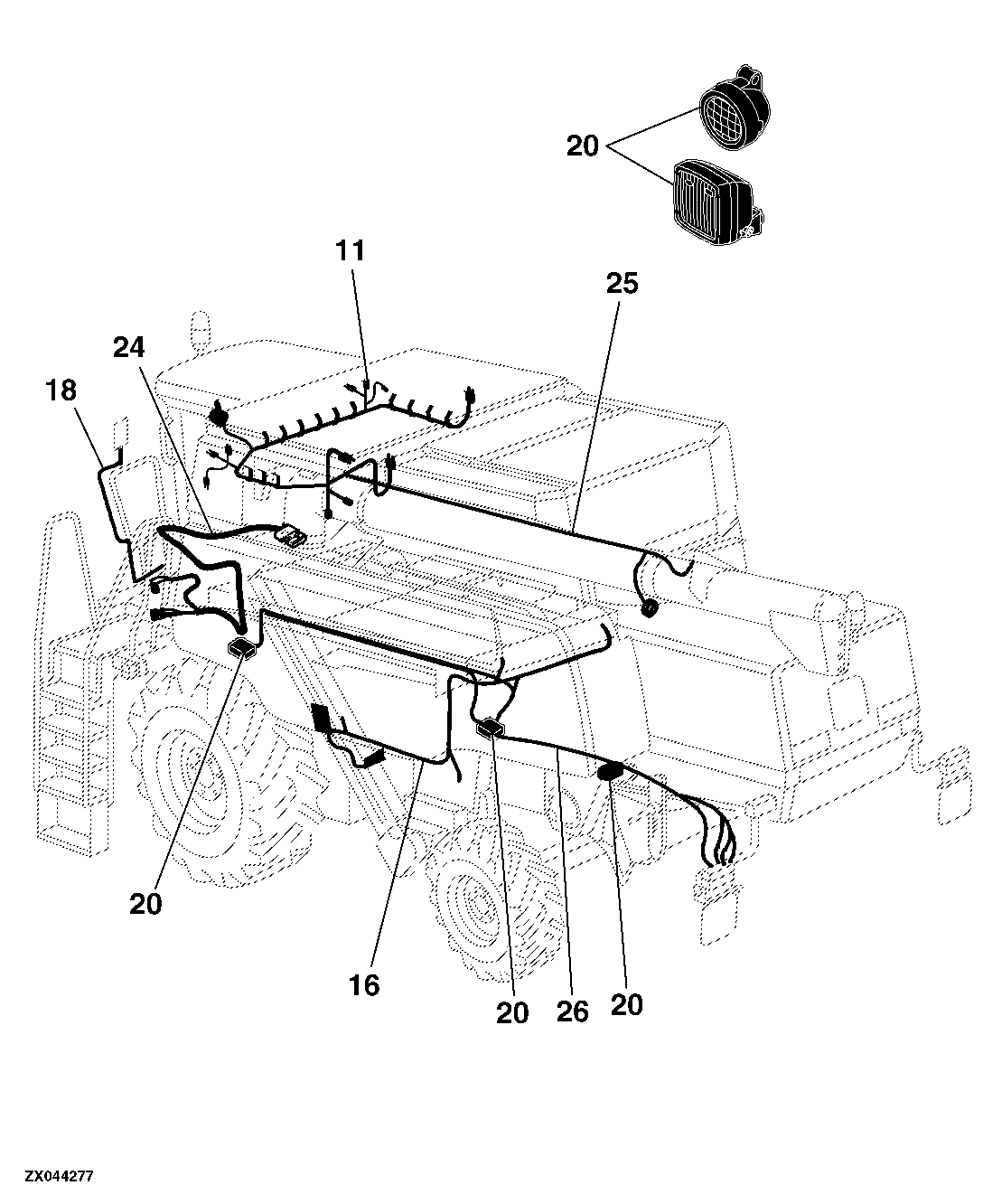

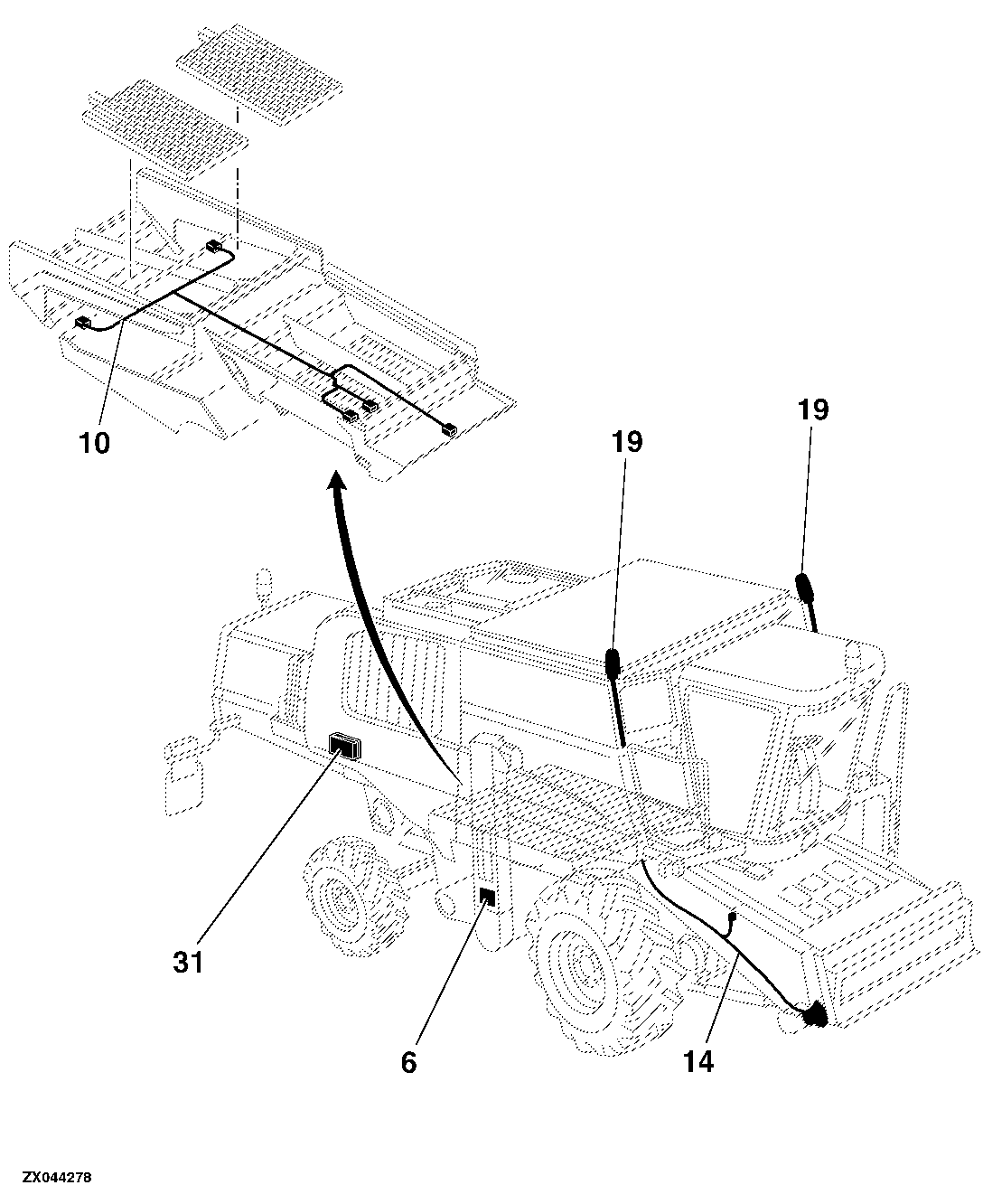

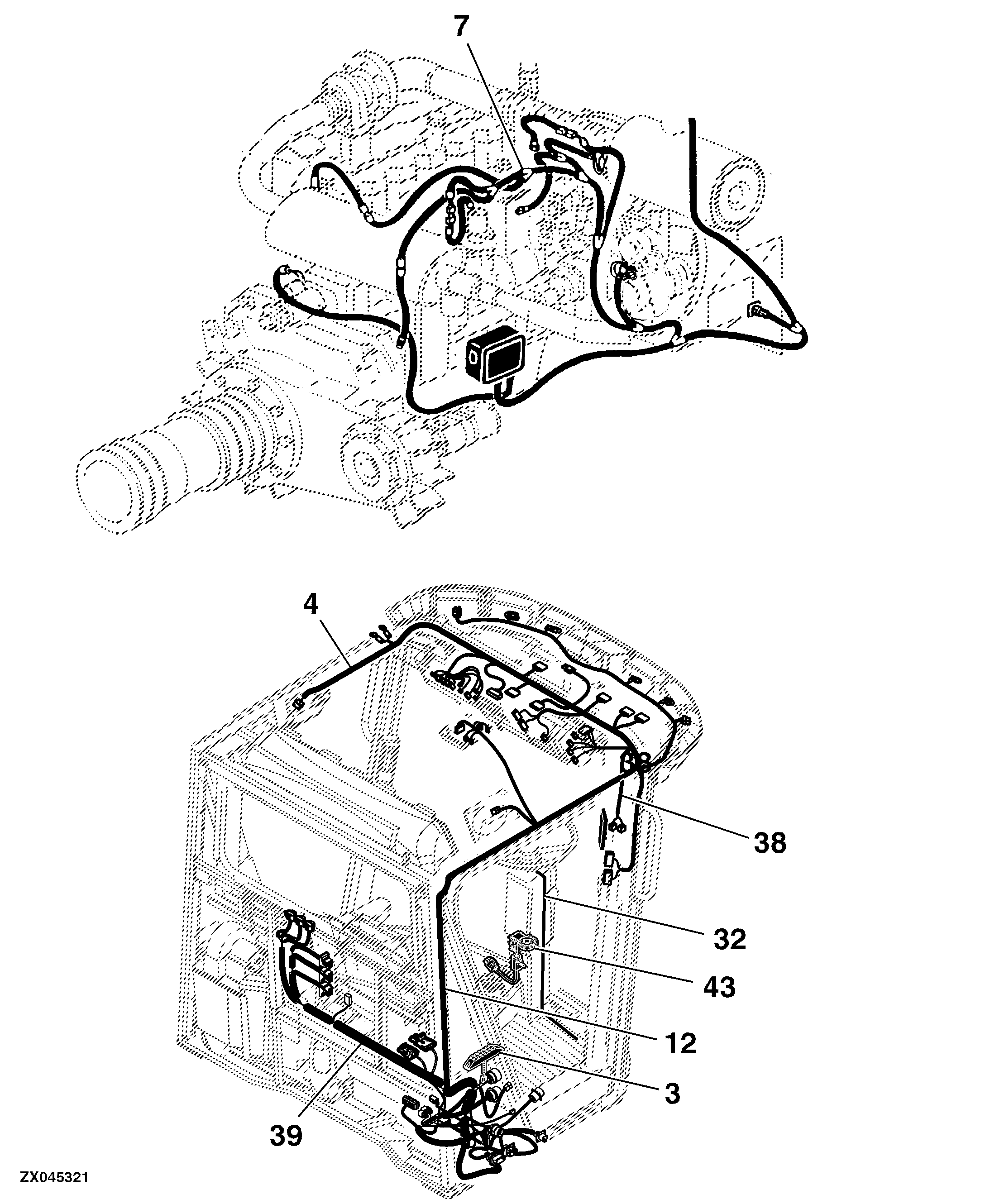

45 Electrical Equipment - CommandCenter Combine W650

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	STRAW CHOPPER (LSSM COMPONENTS)	-
-	-	1	MAIN CAB WIRING HARNESS (1/2)	-
-	-	1	MAIN CAB WIRING HARNESS (2/2)	-
-	-	1	ProDrive - Wiring Harness	-
-	-	1	PRODRIVE - WIRING HARNESS AND CONTROL UNIT	-
-	-	1	R.H. MAIN WIRING HARNESS - FRONT	-
-	-	1	R.H. MAIN WIRING HARNESS - REAR	-
-	-	1	RIGHT CONTROL UNIT CONTROLLER	-
-	-	1	SENSORS AND CONNECTORS AT TRANSMISSION	-
-	-	1	STEERING COLUMN WIRING HARNESS	-
-	-	1	Steering Input Sensor And Wiring Harness	-
-	-	1	LOW SHAFT SPEED SENSORS AND BRACKETS	-
-	-	1	TAILINGS ELEVATOR MATERIAL SENSOR	-
-	-	1	TWO-SPEED FOUR WHEEL DRIVE WIRING HARNESS	-
-	-	1	VCM AND PRODRIVE WIRING HARNESS	-
-	-	1	VCM CONTROL UNIT	-
-	-	1	WIRING HARNESS - GRAIN TANK WITH LIMIT SWITCH AND MONITORING OF FILLING LEVEL	-
-	-	1	WIRING HARNESS - GRAIN TANK WITH LIMIT SWITCH AND MONITORING OF FILLING LEVEL	-
-	-	1	WIRING HARNESS AT REAR HOOD FOR SEPARATOR PLUGGED SENSOR	-
-	-	1	WIRING HARNESS FOR ELECTRICALLY ADJUSTABLE OUTSIDE MIRRORS AND MIRROR HEATER	-
-	-	1	Wiring Harness System For Grain Loss Monitoring (Wide Body)	-
-	-	1	WIRING HARNESS, GROUND SPEED	-
-	-	1	FRONT BEACON LIGHTS WITH SUPPORT	-
-	-	1	ARMREST DISPLAY EXTENSION WIRING HARNESS	-
-	-	1	ARMREST WIRING HARNESS	-
-	-	1	AUTOTRAC WIRING HARNESS	-
-	-	1	AUXILIARY ARMREST WIRING HARNESS	-
-	-	1	CAB ROOF LIGHT EXTENSION WIRING HARNESS	-
-	-	1	CONTROLLER AND HARNESS	-
-	-	1	ENGINE WIRING HARNESS	-
-	-	1	FEEDER HOUSE DRIVE SHAFT SPEED SENSOR	-
-	-	1	FIELD LIGHTS - ADDITIONAL LIGHTS	-
-	-	1	FIELD LIGHTS - ADDITIONAL LIGHTS	-
-	-	1	AIR CONDITIONING WIRING HARNESS	-
-	-	1	FRONT FLASH/TURN SIGNAL WIRING HARNESS	-
-	-	1	GEAR SHIFT MONITOR WIRING HARNESS	-
-	-	1	Grain Loss Monitor System	-
-	-	1	GRAIN TANK WIRING HARNESS	-
-	-	1	Harness For Remote Shoe Adjust	-
-	-	1	L.H. AND R.H. MAIN AND ADAPTER WIRING HARNESSES	-
-	-	1	L.H. MAIN WIRING HARNESS - REAR	-
-	-	1	LC1 CONTROL UNIT, POWER MODULE AND FUSE BOX	-
-	-	1	LCU2 VEHICLE CONTROLLER	-

45 Electrical Equipment - CommandCenter Combine W650

Нет текстового описания
