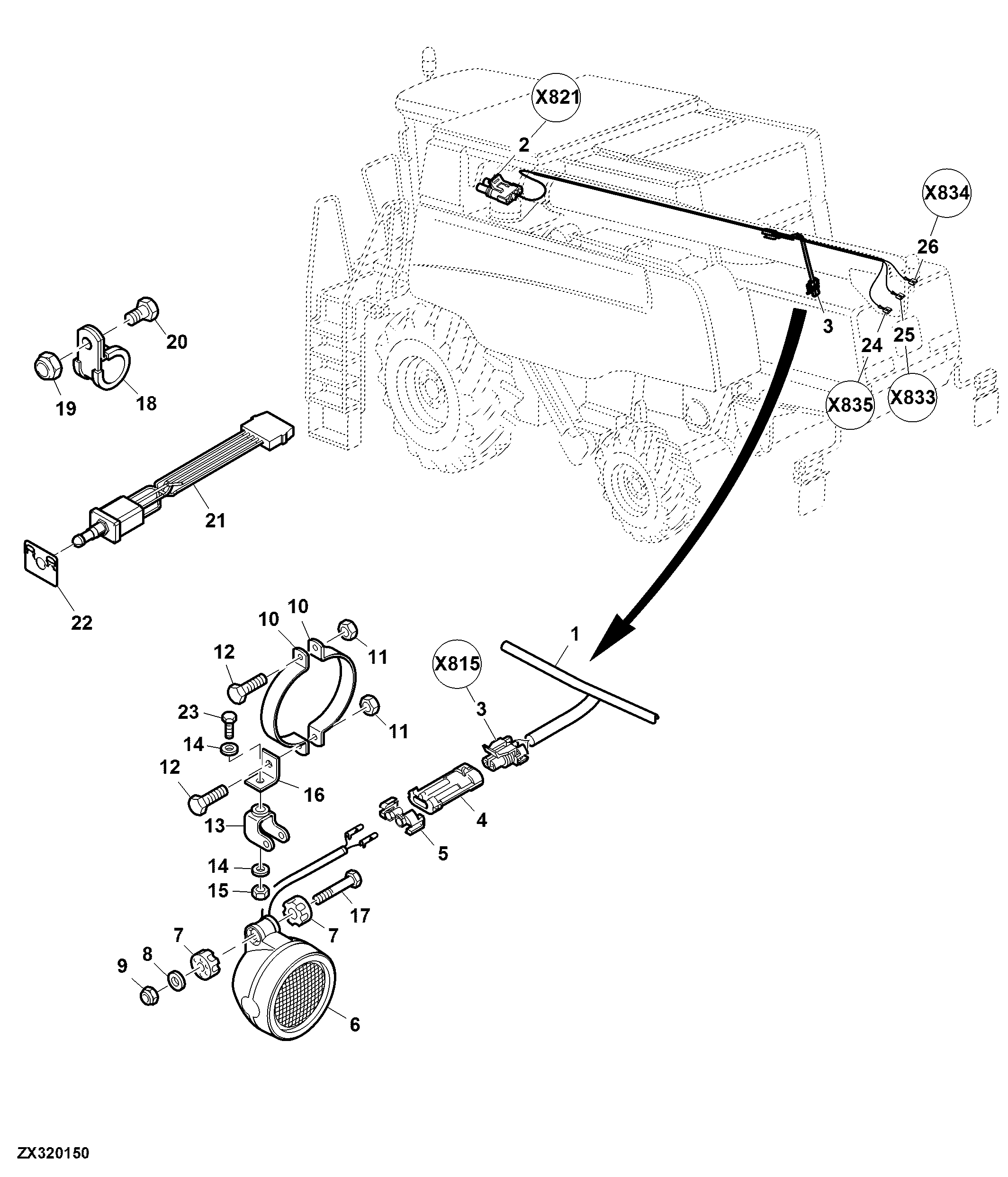

Unloading Auger Warning Light Wiring Harness, 23.5 inch, 1 / 2

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE38701	1	Wiring Harness	SUB FOR AXE16965
2	57M9789	1	Elec. Connector Housing	ORDER W/ (5) 57M10603, 57M9841
3	57M7254	1	Elec. Connector Housing	ORDER W/ (2) 57M7258, (2) 57M9541, 57M9712
4	57M7256	1	Elec. Connector Housing	ORDER W/ 57M7316
5	57M7289	2	Elec.Connect Locking Device	-
6	RE219708	1	Floodlamp	INCLUDES AT130104
7	L114825	2	Spacer	-
8	12M5442	1	Washer	8.400 X 15 X 0.800 mm
9	14M7166	1	Lock Nut	M8
10	AH211837	2	Bracket	-
11	H137328	2	Lock Nut	-
12	19M7800	2	Screw	M8 X 50
13	R106555	1	Support	-
14	-	1	Part 14	-
15	14M7298	1	Flange Nut	M8
16	Z61852	1	Angle	-
17	19M7269	1	Cap Screw	M8 X 50
18	AH89557	1	Clip	-
19	14M7400	1	Lock Nut	M10
20	19M7835	1	Screw	M10 X 35
21	AH168430	1	Toggle/Rocker Switch	(For 8,000 And 9,000 Liters Grain Tank)
22	H164651	1	Label	(For 8,000 And 9,000 Liters Grain Tank)
23	19M7867	1	Screw	M8 X 25
24	57M7044	1	Elec. Connector Terminal	Ground
25	57M7044	1	Elec. Connector Terminal	Brake Lamp
26	57M7044	1	Elec. Connector Terminal	Tail Lamp

Unloading Auger Warning Light Wiring Harness, 23.5 inch, 1 / 2

Нет текстового описания
