Открытый узел

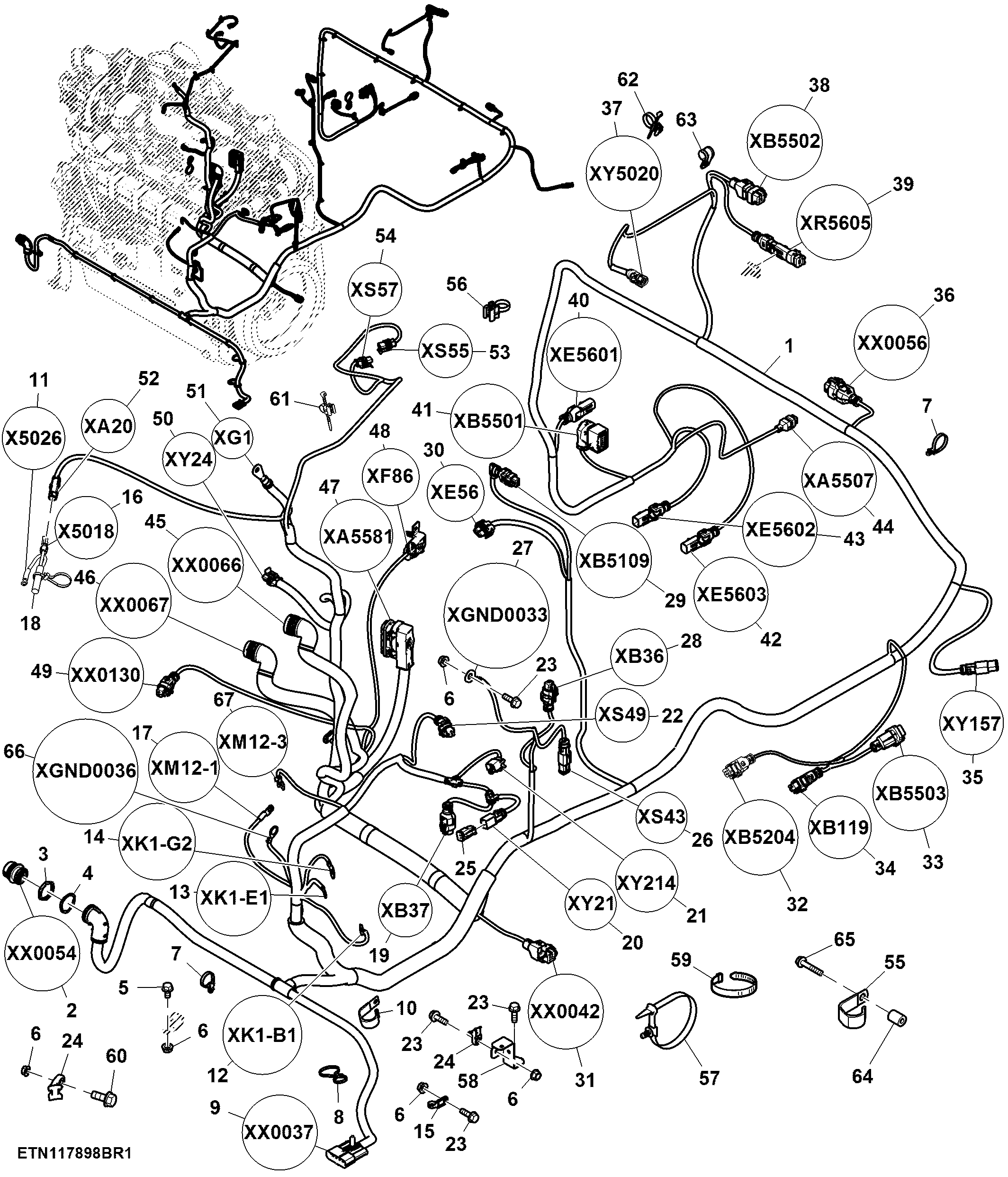

Engine Wiring Harness, 6.8 L, Final Tier 4

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE54886	1	Wiring Harness	-
2	57M9512	1	Elec. Connector Housing	ORDER W/ (5) 57M9525, (12) 57M9812, (2) 57M8262, (4) 57M8164, (8) R78069 AND 57M8704
3	57M8035	1	Nut	-
4	57M9061	1	Elec.Connect Locking Device	-
5	19M7865	1	Screw	M8 X 16
6	14M7298	6	Flange Nut	M8
7	57M10233	44	Tie Band	-
8	57M10421	4	Elec. Connector Accessory	-
9	57M8274	1	Elec. Connector Housing	ORDER W/ (4) 57M7286, (4) 57M9217, 57M8910 AND 57M7300
10	AH117301	1	Clamp	-
11	57M8888	1	Elec. Connector Terminal	-
12	57M8867	1	Elec. Connector Terminal	-
13	57M8875	1	Elec. Connector Terminal	-
14	57M8867	1	Elec. Connector Terminal	-
15	57M10528	2	Elec. Connector Accessory	-
16	RE12362	1	Electrical Connector Assy	ORDER W/ 57M7883, 57M9218 AND 57M10421
17	57M11441	1	Elec. Connector Terminal	-
18	AXE17012	1	Wiring Harness	-
19	57M9773	1	Elec. Connector Housing	ORDER W/ (2) 57M9808, 57M9837
20	57M10517	1	Elec. Connector Housing	ORDER W/ (2) 57M8165, 57M10337 AND 57M8022
21	57M8924	1	Elec. Connector Housing	ORDER W/ (2) 57M8602, (2) 57M8321 AND 57M11380
22	57M9773	1	Elec. Connector Housing	ORDER W/ (2) 57M9808, 57M9837
23	19M7867	6	Screw	M8 X 25
24	N380408	3	Clamp	-
25	AZ61547	2	Elec. Connector Housing	-
26	57M10517	1	Elec. Connector Housing	ORDER W/ 57M10337 AND 57M8022
27	57M8867	1	Elec. Connector Terminal	-
28	57M9773	1	Elec. Connector Housing	ORDER W/ (2) 57M9808, 57M9837
29	57M9780	1	Elec. Connector Housing	ORDER W/ (2) 57M9808, 57M9847
30	57M7344	1	Elec. Connector Housing	ORDER W/ (2) 57M7491, (2) 57M9218, 57M7371
31	57M9786	1	Elec. Connector Housing	ORDER W/ (6) 57M9808, 57M9841
32	57M9817	1	Elec. Connector Housing	ORDER W/ (2) 57M9808, (2) 57M10321 AND 57M9848
33	57M9787	1	Elec. Connector Housing	ORDER W/ (4) 57M9808, (2) R78069 AND 57M10230
34	57M9774	1	Elec. Connector Housing	ORDER W/ (2) 57M9808, 57M9837
35	57M10517	1	Elec. Connector Housing	ORDER W/ (2) 57M8165, 57M10337, 57M8022
36	57M9817	1	Elec. Connector Housing	ORDER W/ 57M10321, 57M9808, (2) 57M10631 AND 57M9839
37	57M10315	1	Elec. Connector Housing	ORDER W/ (2) 57M9149
38	57M9787	1	Elec. Connector Housing	ORDER W/ (5) 57M9808, R78069 AND 57M9841
39	57M9776	1	Elec. Connector Housing	ORDER W/ (2) 57M9812, 57M9940 AND 57M11134
40	57M9731	1	Elec. Connector Housing	ORDER W/ (2) 57M11742, 57M9837 AND 57M9940
41	57M10958	1	Elec. Connector Housing	ORDER W/ (10) 57M10557, (2) 57M7402, (8) 57M8241, (2) 57M7403, 57M11439 AND R44302
42	57M9732	1	Elec. Connector Housing	ORDER W/ (2) 57M11742, 57M9846 AND 57M9940
43	57M9730	1	Elec. Connector Housing	ORDER W/ (2) 57M11742, 57M9846 AND 57M9940
44	57M9788	1	Elec. Connector Housing	ORDER W/ (4) 57M10321, 57M9808, 57M10336 AND 57M9841
45	57M9514	1	Elec. Connector Housing	ORDER W/ (6) 57M9526, 57M8165, R78069 and 57M8704
46	57M11358	1	Elec. Connector Housing	ORDER W/ (11) R78069, 57M10429
47	RE538505	1	Elec. Connector Accessory	ORDER W/ (3) 57M9808, (6) 57M10319, (5) 57M10321, (40) 57M10336 and R528122
48	57M8267	1	Elec. Connector Housing	ORDER W/ (2) R104571, 57M9555 and 57M8487
49	57M9774	1	Elec. Connector Housing	ORDER W/ (2) 57M10663, 57M9837
50	57M7309	1	Elec. Connector Housing	ORDER W/ (2) 57M7491, (2) 57M9218, 57M10477
51	57M9548	1	Elec. Connector Terminal	-
52	R78052	1	Electrical Connector Assy	-
53	57M10497	1	Elec. Connector Housing	-
54	57M10497	1	Elec. Connector Housing	-
55	AH90990	8	Clip	-
56	AH225364	4	Clip	-
57	AFH203668	4	Tie Band	-
58	HXE78444	2	Bracket	-
59	R44302	2	Tie Band	-
60	19M7866	3	Screw	M8 X 20
61	AH225363	2	Clip	-
62	AH225365	1	Clip	-
63	AXE38705	1	Clamp	-
64	H130269	2	Spacer	-
65	19M8318	1	Screw	M8 X 45
66	57M10244	1	Elec. Connector Terminal	-
67	-	1	Part 67	-

Engine Wiring Harness, 6.8 L, Final Tier 4

Нет текстового описания
