Rear Wheel Motor Valve, C Frame and Pivot, 2096 cm³

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH219803	2	Seal Kit	-
2	H175439	6	Screw	-
3	H175441	4	Screw	-
4	T77613	4	O-Ring	-
5	AH169194	1	Plug	-
6	AH169195	1	Valve Spool	-
7	JD7806	2	Lubrication Fitting	-
8	AN272711	1	Seal Kit	USE WITH AH219807
8	AH209121	1	Seal Kit	USE WITH AXE46088
9	AH219807	1	Valve	ORDER AXE46088
10	AXE45240	1	Solenoid Valve Coil	SUB FOR AH219822
11	AXE46088	1	Valve	SUB FOR AH219807
12	19M8513	4	Screw	M6 X 40
13	AH169205	1	Seal Kit	-
14	AH169200	2	Oil Tube	-
15	AH169201	2	Oil Tube	-
16	19M8532	8	Screw	M6 X 35
17	AH169197	1	Pivot	-
18	AH169198	1	Pivot	Without Sensor
18	HXE18195	1	Pivot	With Sensor
19	19M8440	9	Screw	M10 X 25
20	AXE12311	2	Seal	-
21	H240141	1	Steering Arm	LH
21	H240140	1	Steering Arm	RH
22	19M8147	2	Cap Screw	M20 X 90
23	H175446	1	Valve Cover	-
24	19M7946	2	Cap Screw	M20 X 40
25	H75423	4	Pin Fastener	-
26	H174025	8	Spacer	-
27	19M8224	8	Cap Screw	M20 X 60
28	38H1163	1	Adapter Fitting	-
29	38H1329	1	Adapter Fitting	-
30	38H1161	1	Adapter Fitting	-
31	U12547	2	O-Ring	-
32	R26375	1	O-Ring	-
33	T77858	1	O-Ring	-
34	T77932	1	O-Ring	-
35	HXE14302	1	Yoke	-
36	HXE88668	1	Bracket	-
37	T77857	1	O-Ring	-
38	19M7790	1	Screw	M12 X 35
39	L174640	1	Sleeve	-
40	24M7180	2	Washer	13 X 37 X 3 mm
41	AXE11478	1	Sensor	-
42	19M9326	1	Screw	M4 X 30
43	P48347	1	O-Ring	-
44	N375368	1	Seal	-
45	P45750	1	O-Ring	-
46	12M7084	2	Lock Washer	4.300 mm
47	N375367	1	Bushing	-
48	H35226	1	Snap Ring	-
49	AXE15775	1	Shield	-
50	AXE50336	1	Shield	SUB FOR APPL AXE15775
51	AN278367	1	Detent	-
52	R126814	1	Drive Shaft	-
53	34H227	1	Spring Pin	3/32" X 1/2"
54	19M7783	2	Screw	M10 X 16
55	24H1452	1	Washer	1-1/32" X 1-3/4" X 0.105"
56	N375572	1	Bolt	-
57	AXE18859	1	Shaft	-

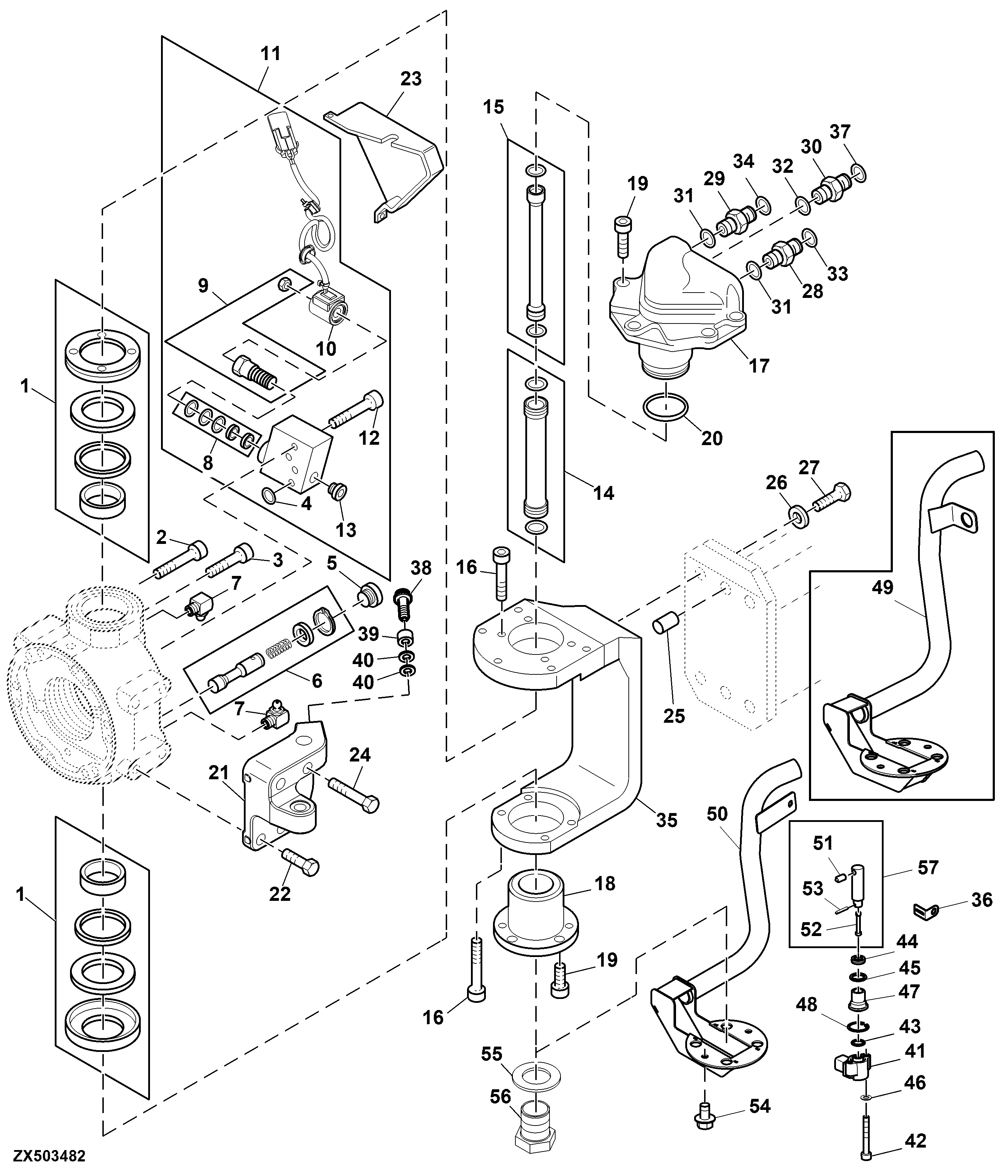

Rear Wheel Motor Valve, C Frame and Pivot, 2096 cm³
