LC1 Main Wiring Harness, Front

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE41422	1	Wiring Harness	-
2	57M11372	1	Elec. Connector Housing	ORDER WITH (5) 57M8569, (5) 57M8593, 57M8704, (6) R78069
3	57M9656	1	Elec. Connector Terminal	ORDER WITH (3) 57M8593, 57M8569, 57M10429, R78069
4	57M10721	1	Elec. Connector Housing	ORDER WITH (3) 57M8593, 57M8704, Z78007, (4) R78069
5	57M11371	1	Elec. Connector Housing	ORDER WITH (11) 57M8165, 57M8009, R78069
6	57M9792	1	Elec. Connector Housing	ORDER WITH (6) 57M9808, 57M9796, 57M9843, (2) 57M10336, 57M9939
7	57M8867	2	Elec. Connector Terminal	-
8	57M8746	1	Elec. Connector Housing	ORDER WITH (6) 57M8165, 57M9526, 57M11288, R78069
9	57M9800	1	Elec. Connector Housing	ORDER WITH 57M9844, 57M10663, (3) 57M9809, (4) 57M9808, (2) 57M10631, (2) 57M10336
10	57M9802	1	Elec. Connector Housing	ORDER WITH 57M9808, (6) 57M10321, (4) 57M10631, 57M9825, 57M9939, 57M9844, 57M10336
11	57M9803	1	Elec. Connector Housing	ORDER WITH 57M10336, (11) 57M9809, 57M9826, 57M9939, 57M9844
12	57M11370	1	Elec. Connector Housing	ORDER WITH (29) 57M11368, (2) 57M11367
13	57M10207	1	Elec. Connector Housing	ORDER WITH 57M10642, (6) 57M8165, 57M8011, (2) R78069
14	57M10606	1	Elec. Connector Housing	ORDER WITH (8) 57M10590, (11) 57M10488, (5) 57M10331, (2) 57M10617, 57M10617, 57M10604, R44302, 57M10334, (5) 57M10333
15	57M10420	1	Elec. Connector Housing	ORDER WITH (2) 57M10488, (13) 57M10590, (2) 57M10617, (5) 57M10331, 57M10613, R44302, (12) 57M10330, 57M10334, (13) 57M10333
16	57M10612	1	Elec. Connector Housing	ORDER WITH (11) 57M10590, (8) 57M10488, (3) 57M10331, (5) 57M10333, (4) 57M10617, 57M10604, R44302, 57M10334
17	57M8985	1	Elec. Connector Housing	ORDER WITH (4) 57M7491, 57M7298, 57M7299, (2) 57M8294, 57M9083, (4) 57M9216, 57M9218, 57M9217, (2) 57M7368
18	57M8983	1	Elec. Connector Housing	ORDER WITH (5) 57M7299, 57M8294, 57M9083, (5) 57M9217, 57M9219, (2) R78064
19	57M8986	1	Elec. Connector Housing	ORDER WITH (2) 57M7491, (2) 57M7299, (2) 57M7298, 57M9083, (2) 57M9216, (2) 57M9217, (2) 57M9218, 57M9219, R78064, 57M9547
20	57M9817	1	Elec. Connector Housing	ORDER WITH (4) 57M9808, 57M9821, 57M9939, 57M9840
21	57M7808	1	Elec. Connector Housing	ORDER WITH (4) 57M7299, (4) R78063, 57M7807, 57M7810, 57M8910
22	57M10301	1	Elec. Connector Housing	ORDER WITH (5) 57M8565, 57M8572
23	AXE22034	1	Electrical Connector Assy	ORDER WITH (10) 57M8543
24	57M11444	3	Elec. Connector Terminal	ORDER WITH HXE33857
25	57M10297	1	Elec. Connector Housing	ORDER WITH (4) 57M8572, (10) 57M8565
26	-	1	Part 26	ORDER WITH (2) 57M8572, (12) 57M8565
27	-	1	Part 27	ORDER WITH (2) 57M8572, (12) 57M8565
28	57M7696	1	Elec. Connector Housing	ORDER WITH 57M7494, (2) 57M7588, 57M9214, (2) 57M7706, 57M7697, 57M7698, H224545, (4) 57M7259
29	57M7260	1	Elec. Connector Housing	ORDER WITH (4) 57M7494, (2) 57M7259, 57M7291, (4) RE207311, 57M9214
30	57M9513	1	Elec. Connector Housing	ORDER WITH (8) R78069, (2) 57M7546, (3) R78065, 57M9526, (3) 57M8165, (2) 57M8593, 57M8704
31	RE12363	1	Electrical Connector Assy	ORDER WITH (2) R78060, (2) 57M9219
32	57M10517	1	Elec. Connector Housing	ORDER WITH (2) 57M8165, 57M8022
33	57M9784	1	Elec. Connector Housing	ORDER WITH (3) 57M9813, 57M9939, 57M9838
34	57M7254	1	Elec. Connector Housing	ORDER WITH(2) 57M9215, 57M9712
35	R77476	1	Electrical Connector Assy	ORDER WITH 57M9200, 57M9199
36	57M7369	1	Elec. Connector Housing	ORDER WITH 57M7527, 57M7277, 57M9216, 57M9218, 57M10422
37	57M11339	2	Elec. Connector Housing	ORDER WITH (7) 57M8165, 57M9526, 57M8011, 57M9552
38	14M7298	1	Flange Nut	M8
39	19M7866	1	Screw	M8 X 20
40	19M7865	2	Screw	M8 X 16
41	AH130222	3	Clamp	-
42	AH89557	1	Clip	-
43	H137328	3	Lock Nut	-
44	R44302	4	Tie Band	-
45	AH117301	1	Clamp	-
46	AXE22033	1	Electrical Connector Assy	-
47	N198631	3	Clamp	-
48	H175881	1	Snap Ring	-
49	57M9817	2	Elec. Connector Housing	ORDER WITH (4) 57M10321, 57M9840, 57M9821,
50	57M8267	1	Elec. Connector Housing	ORDER WITH (2) R104933, 57M8487, 57M8638,
51	57M10421	2	Elec. Connector Accessory	-
52	AXE43543	1	Electrical Connector Cap	-

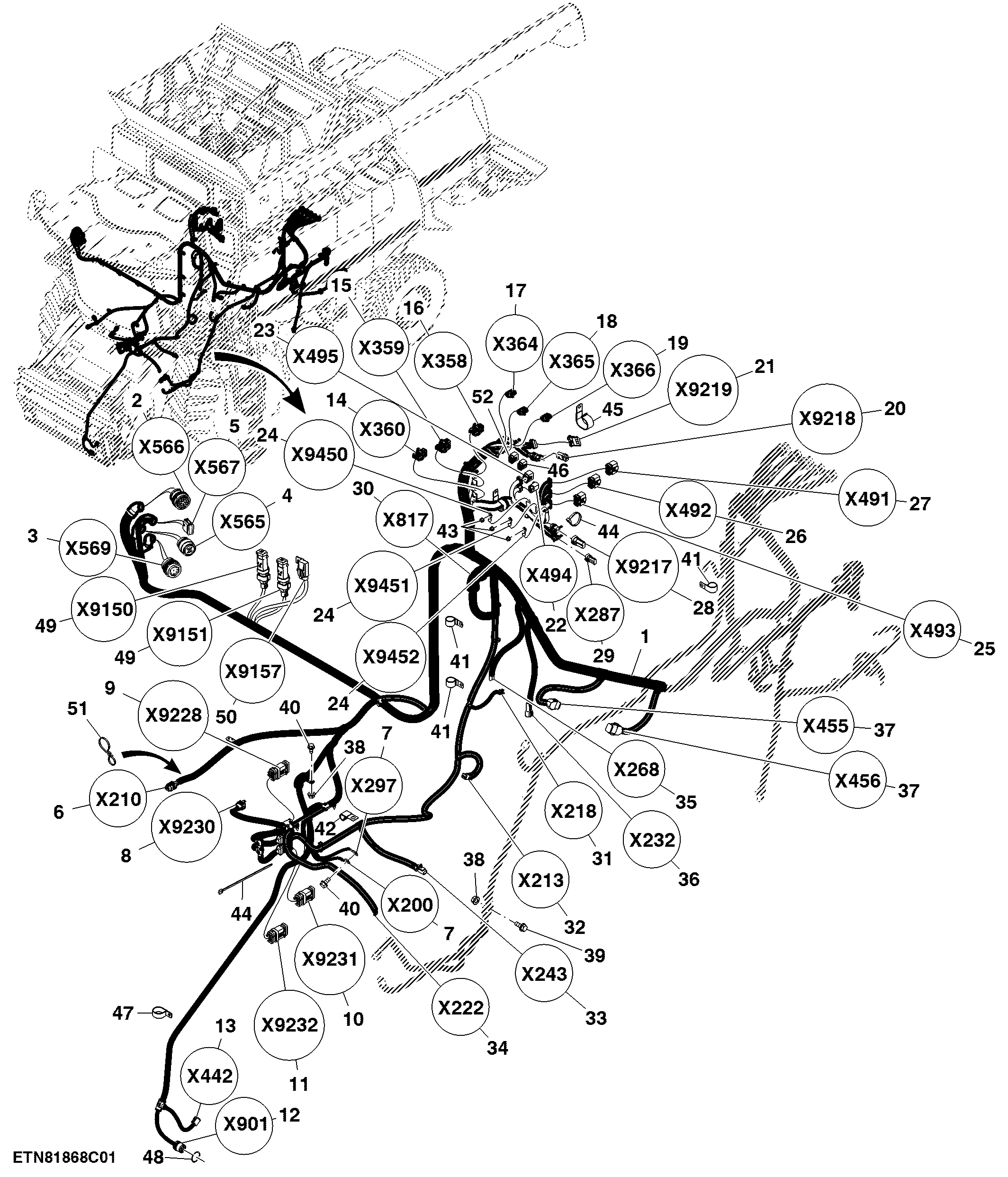

LC1 Main Wiring Harness, Front
