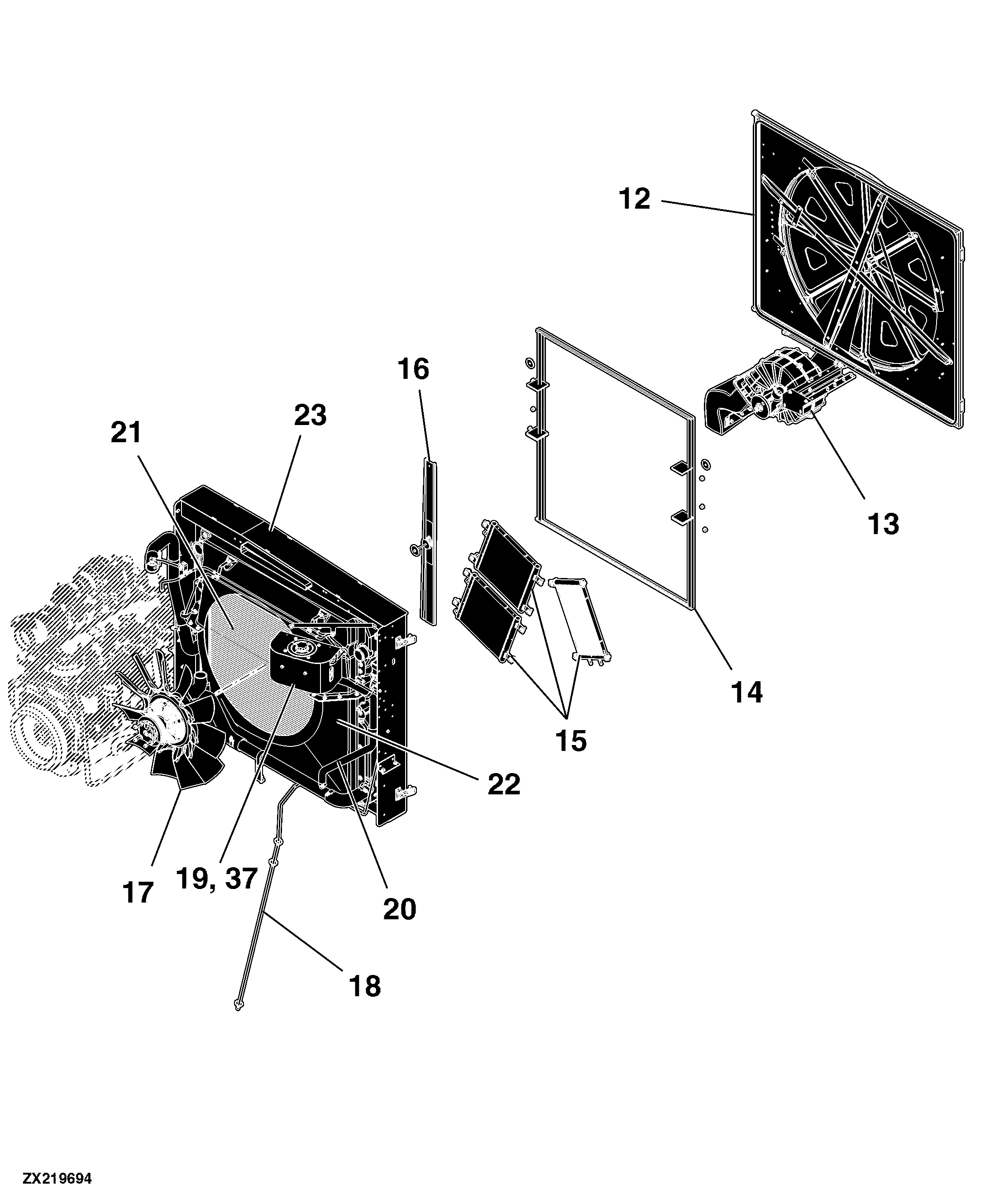

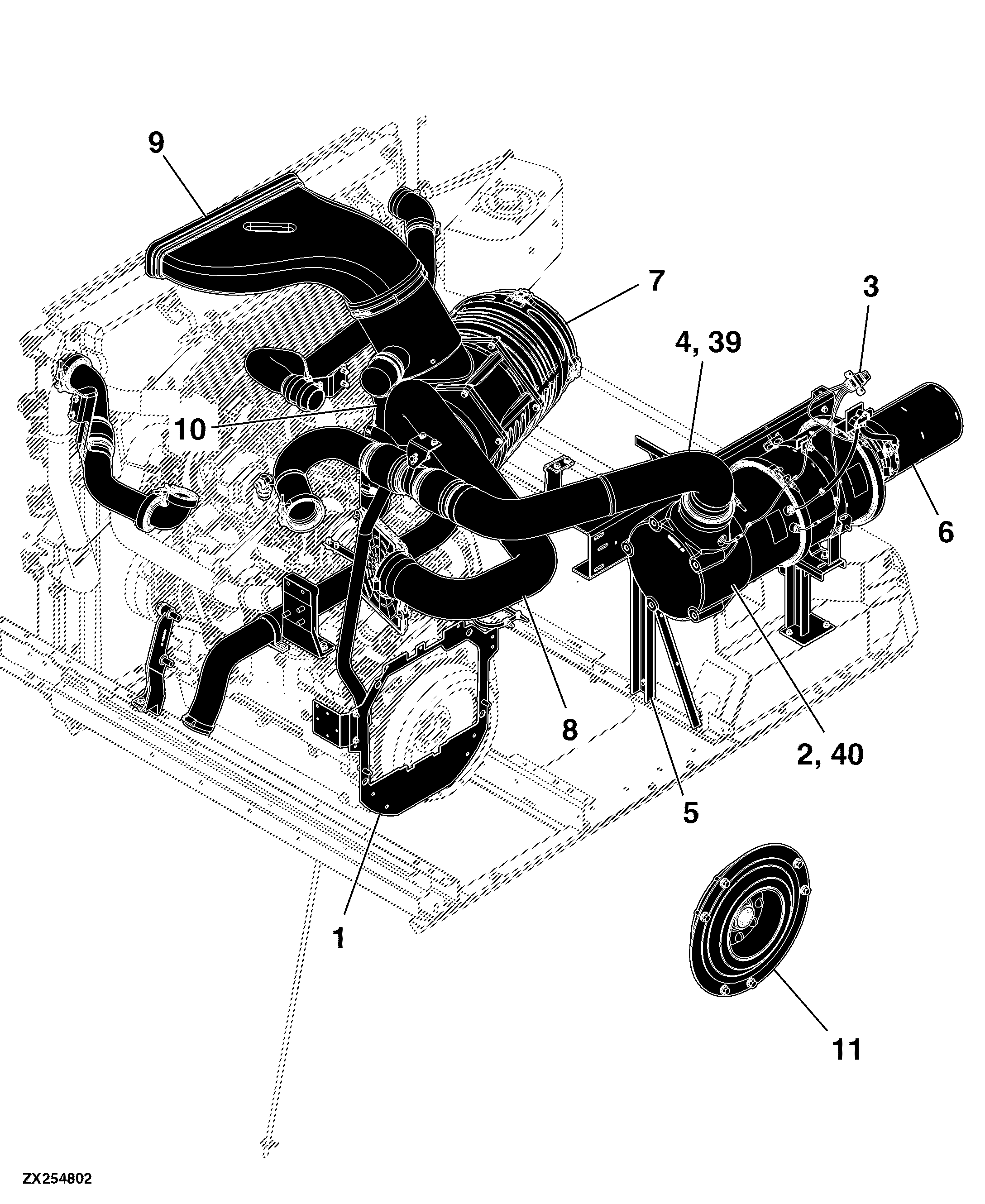

30 Engine Auxiliaries, Tank, Air System, IT4 W540 - For Engine 6068HZ491 - MY14

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Oil Drain Hose	-
-	-	1	Fan Drive, Interim Tier 4	-
-	-	1	Fan, Cooling, Interim Tier 4	-
-	-	1	Front Engine Drives, Interim Tier 4	-
-	-	1	Fuel Filter, 800 L Tank, Optional	-
-	-	1	Fuel Line, Interim Tier 4	-
-	-	1	Fuel Tank and Fittings, 800 L	-
-	-	1	Heater Hoses, Interim Tier 4	-
-	-	1	Idler Arms, Rotary Screen Drive , Interim Tier 4	-
-	-	1	Jackshaft Drive, Rotary Screen, Interim Tier 4	-
-	-	1	Expansion Tank, Interim Tier 4	-
-	-	1	Outlet Exhaust Pipe, Interim Tier 4 (For Foldable Auger)	-
-	-	1	Outlet Exhaust Pipe, Interim Tier 4 (For Rigid Auger)	-
-	-	1	Plate, Cooling Core, Interim Tier 4	-
-	-	1	Primary Fuel Filter	-
-	-	1	Rotary Screen Door and Screen, Interim Tier 4	-
-	-	1	Rotary Screen Drive, Interim Tier 4	-
-	-	1	Shroud and Radiator Hoses, Interim Tier 4	-
-	-	1	Torsional Damper	-
-	-	1	Vapor Condensers and Fuel Cooler, Interim Tier 4	-
-	-	1	DOC and DPF Sensors, Exhaust System, Interim Tier 4	-
-	-	1	Air Intake and Intercooler Hoses, Interim Tier 4	-
-	-	1	Air Intake Aspiration Hose, Interim Tier 4	-
-	-	1	Air Intake Duct, Interim Tier 4	-
-	-	1	Blade, Cooling Core Propeller, Interim Tier 4	-
-	-	1	Blower Fan and Vacuum Fan, Interim Tier 4	-
-	-	1	Blower Fan Drive, Interim Tier 4	-
-	-	1	Cooling Package Frame, Interim Tier 4	-
-	-	1	Cooling Package Seal, Interim Tier 4	-
-	-	1	Cooling Package, Interim Tier 4	-
-	-	1	Air Cleaner And Intake Tubes, Long Filter, Interim Tier 4	-
-	-	1	Engine Mounting and Support Brackets, Interim Tier 4	-
-	-	1	Exhaust Pipe and Mounts, Diesel Oxidation Catalyst and Diesel Particulate Filter, Interim Tier 4 ( - 094131)	-
-	-	1	Exhaust Pipe and Mounts, Diesel Oxidation Catalyst and Diesel Particulate Filter, Interim Tier 4 (094132 - )	-
-	-	1	Exhaust Pipe, From Turbocharger, Interim Tier 4	-
-	-	1	Exhaust Pipe, From Turbocharger, Interim Tier 4	-
-	-	1	Exhaust Support Brackets, Interim Tier 4	-
-	-	1	Expansion Tank Hoses, Interim Tier 4	-
-	-	1	Expansion Tank, Interim Tier 4	-

30 Engine Auxiliaries, Tank, Air System, IT4 W540 - For Engine 6068HZ491 - MY14

Нет текстового описания
