Fixed Speed Feeder House Drive Tightener

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

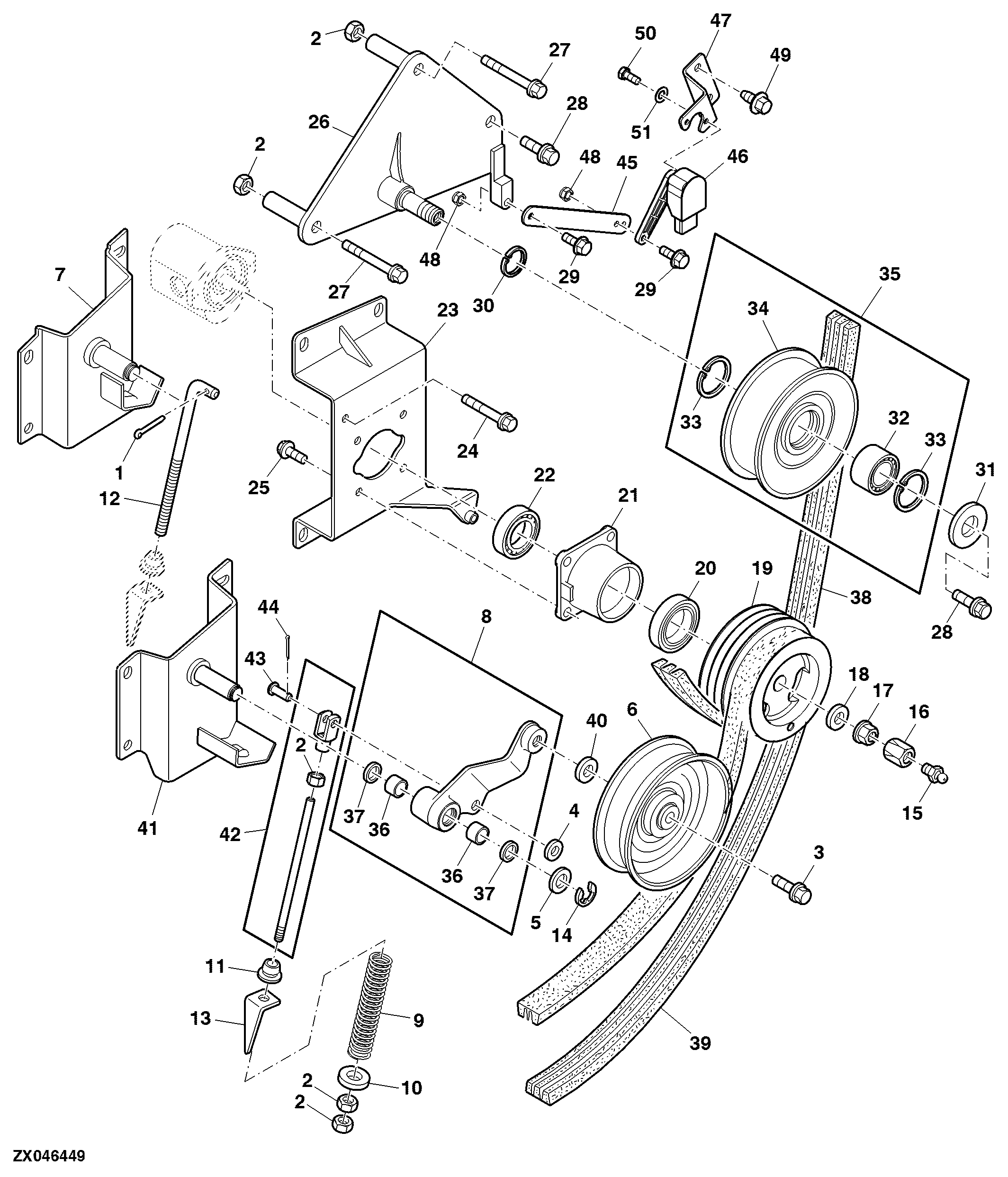

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	28316	1	Spring Locking Pin	-
2	14M7275	1	Nut	M12
3	19M7826	1	Screw	M16 X 70
4	24M7047	1	Washer	13 X 24 X 2.500 mm
5	24M7091	1	Washer	26 X 44 X 4 mm
6	AH204389	1	Idler	-
7	AH205903	1	Bracket	-
8	AH201133	1	Arm	-
9	R56709	1	Compression Spring	-
10	H33456	1	Washer	-
11	H129207	1	Pivot	-
12	H156569	1	Hook Bolt	-
13	H155062	1	Gauge	-
14	P46402	1	Snap Ring	-
15	JD7769	1	Lubrication Fitting	-
16	15H629	1	Pipe Bushing	1/4"
17	14M7149	1	Nut	M12
18	24M7429	1	Washer	13 X 24 X 2.500 mm
19	H205183	1	Pulley	(With 2 Groove Belt Drive)
20	AZ100641	1	Ball Bearing	-
21	H176474	1	Hub	-
22	JD10312	1	Ball Bearing	-
23	AH170485	1	Bracket	-
24	19M7979	1	Screw	M8 X 55
25	19M7784	1	Screw	M10 X 20
26	AXE11364	1	Support	-
27	19M7820	2	Screw	M12 X 100
28	19M7789	1	Screw	M12 X 30
29	14M7299	2	Flange Nut	M12
30	40M7259	1	Snap Ring	-
31	24M7102	1	Washer	13.500 X 44 X 4 mm
32	AZ64070	1	Ball Bearing	-
33	40M1865	2	Snap Ring	-
34	-	1	Part 34	-
35	AXE41595	1	Idler	SUB FOR AZ53024
36	H171061	2	Bushing	-
37	AA5607R	2	Seal	-
38	H176765	1	V-Belt	(With 2 Groove Belt Drive)
39	H176766	1	V-Belt	(For LL / Lateral Tilt Type) (With 2 Groove Belt Drive)
39	H202821	1	V-Belt	(For Hillmaster Only) (With 2 Groove Belt Drive)
40	24M7053	1	Washer	17 X 30 X 3 mm
41	AXE10298	1	Bracket	-
42	AXE10297	1	Yoke Link End	-
43	45M7084	1	Pin Fastener	12 X 35 mm
44	11M7015	1	Cotter Pin	3.200 X 25 mm
45	HXE12420	1	Strap	-
46	AZ103129	1	Sensor	-
47	HXE12419	1	Holder	-
48	14M7165	2	Lock Nut	M6
49	37M7092	2	Screw	M8 X 16
50	19M7640	2	Cap Screw	M5 X 12
51	12M7112	2	Lock Washer	5.300 mm

Fixed Speed Feeder House Drive Tightener
