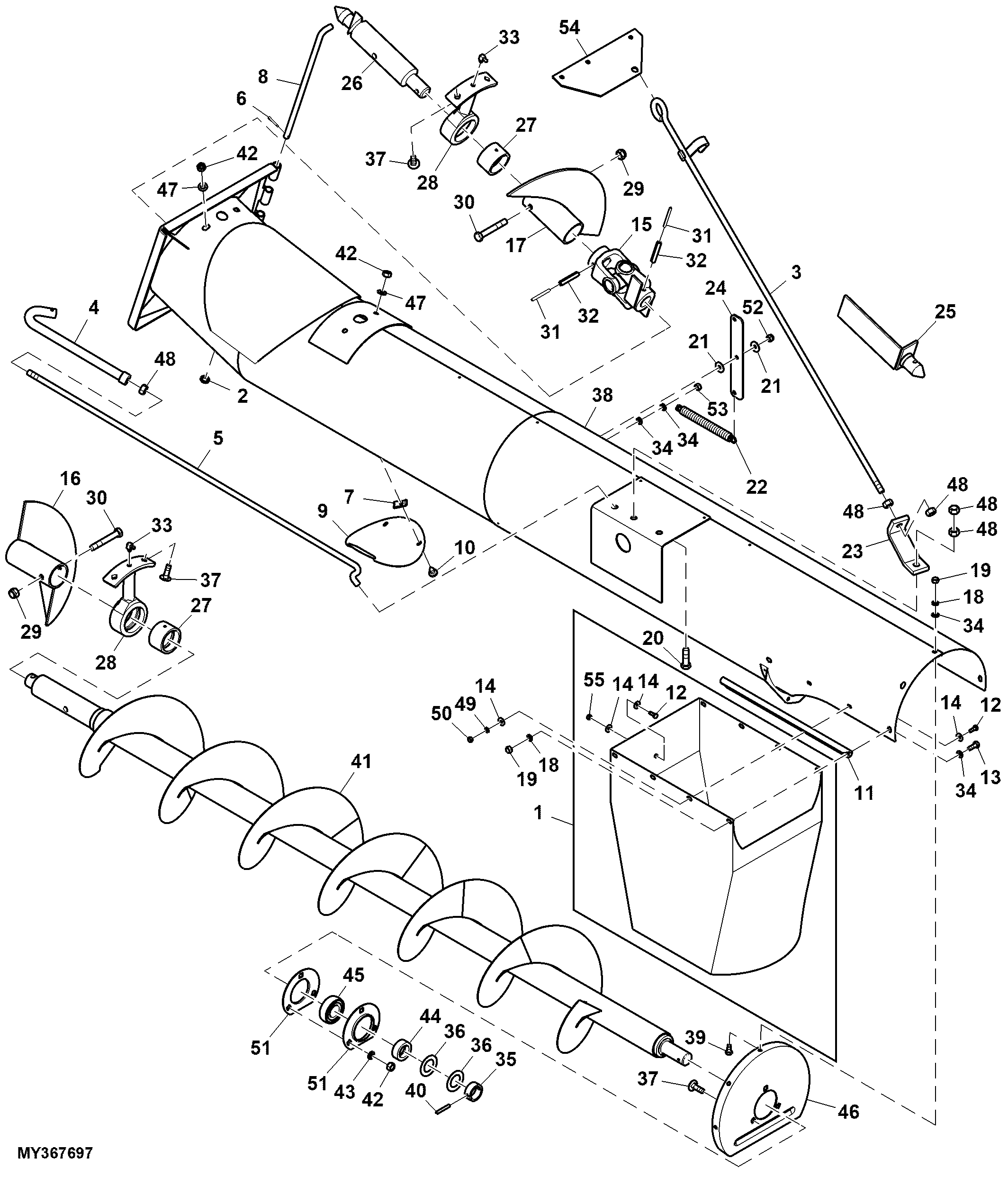

Unloading Auger Tube and Supporting Cables

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AYC21479	1	Limit Curtain	-
2	24M7044	1	Washer	13 X 20 X 2 mm
3	AYC11922	1	Cradle	-
4	AYC19969	1	Hook	-
5	YC13391	1	Rod	-
6	YC20419	1	Cotter Pin	-
7	Z20443	2	NUT	-
8	DX11383	1	Pin Fastener	-
9	Z22294	1	COVER	-
10	37M7440	2	Screw	-
11	Z38539	2	REINFORCEMENT	-
12	19M10106	9	Screw	M6 X 16
13	19M7139	4	Cap Screw	M8 X 20
14	24M7139	12	Washer	6.400 X 18 X 1.600 mm
15	ADX13692	1	Universal Joint	SUB FOR AYC12019
16	AYC12020	1	Flight	-
17	AYC12021	1	Flight	-
18	12M7065	7	Lock Washer	8 mm
19	14M7273	7	Nut	M8
20	19M7387	1	Cap Screw	M12 X 40
21	24M7207	2	Washer	8.400 X 24 X 2 mm
22	L12259	1	Spring	-
23	YC13392	1	Holder	-
24	YC22397	1	Angle Kit	-
25	AYC19222	1	Angle	-
26	YC12715	1	Drive	-
27	YC16738	2	Bushing	-
28	Z11095	2	Bearing	-
29	14M7168	2	Lock Nut	M12
30	19M7189	2	Cap Screw	M12 X 80
31	34M3871	2	Spring Pin	6 X 55 mm
32	34M5477	2	Spring Pin	10 X 55 mm
33	58M5574	2	Lubrication Fitting	-
34	24M7055	2	Washer	8.400 X 16 X 1.600 mm
35	YC10277	1	Bushing	-
36	YC23874	2	Washer	-
37	03M7085	7	Bolt	M10 X 30
38	ADX10770	1	Tube	-
39	19M7162	3	Cap Screw	M8 X 16
40	34M7042	1	Spring Pin	6 X 40 mm
41	ADX11097	1	Auger	-
42	14M7274	7	Nut	M10
43	12M7066	3	Lock Washer	10 mm
44	ADX11299	1	Eccentric Locking Collar	-
45	ADX11295	1	Ball Bearing	-
46	DX13476	1	Cover	-
47	24M7028	4	Washer	10.500 X 20 X 2 mm
48	14M7031	8	Nut	M12
49	12M7006	4	Lock Washer	6 mm
50	14M7272	6	Nut	M6
51	Z38395	2	PRESSED FLANGED HOUSING	-
52	14M7452	1	Lock Nut	M8
53	14M7029	1	Nut	M8
54	AYC21924	1	Load Rated Hook	-

Unloading Auger Tube and Supporting Cables

Нет текстового описания
