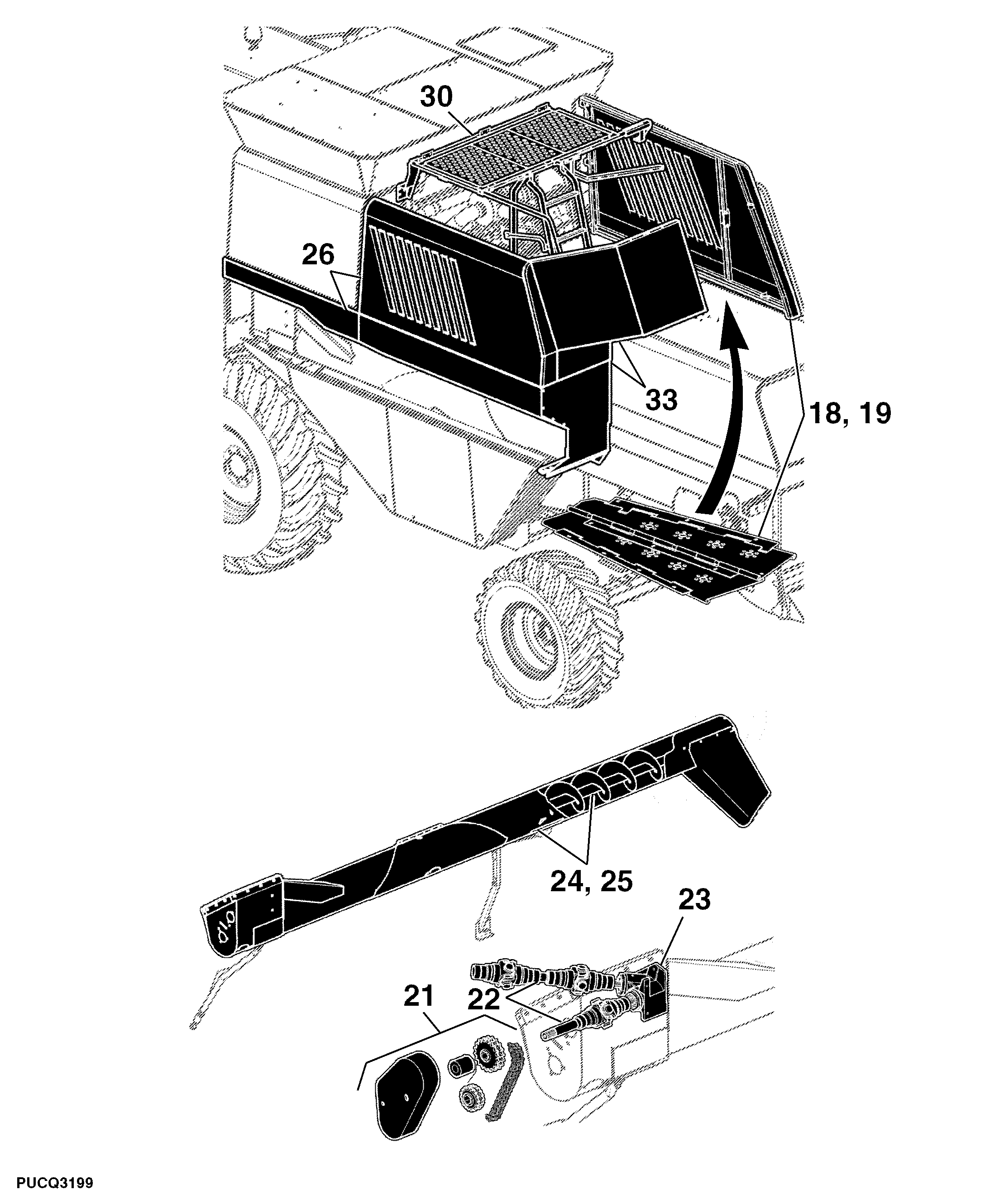

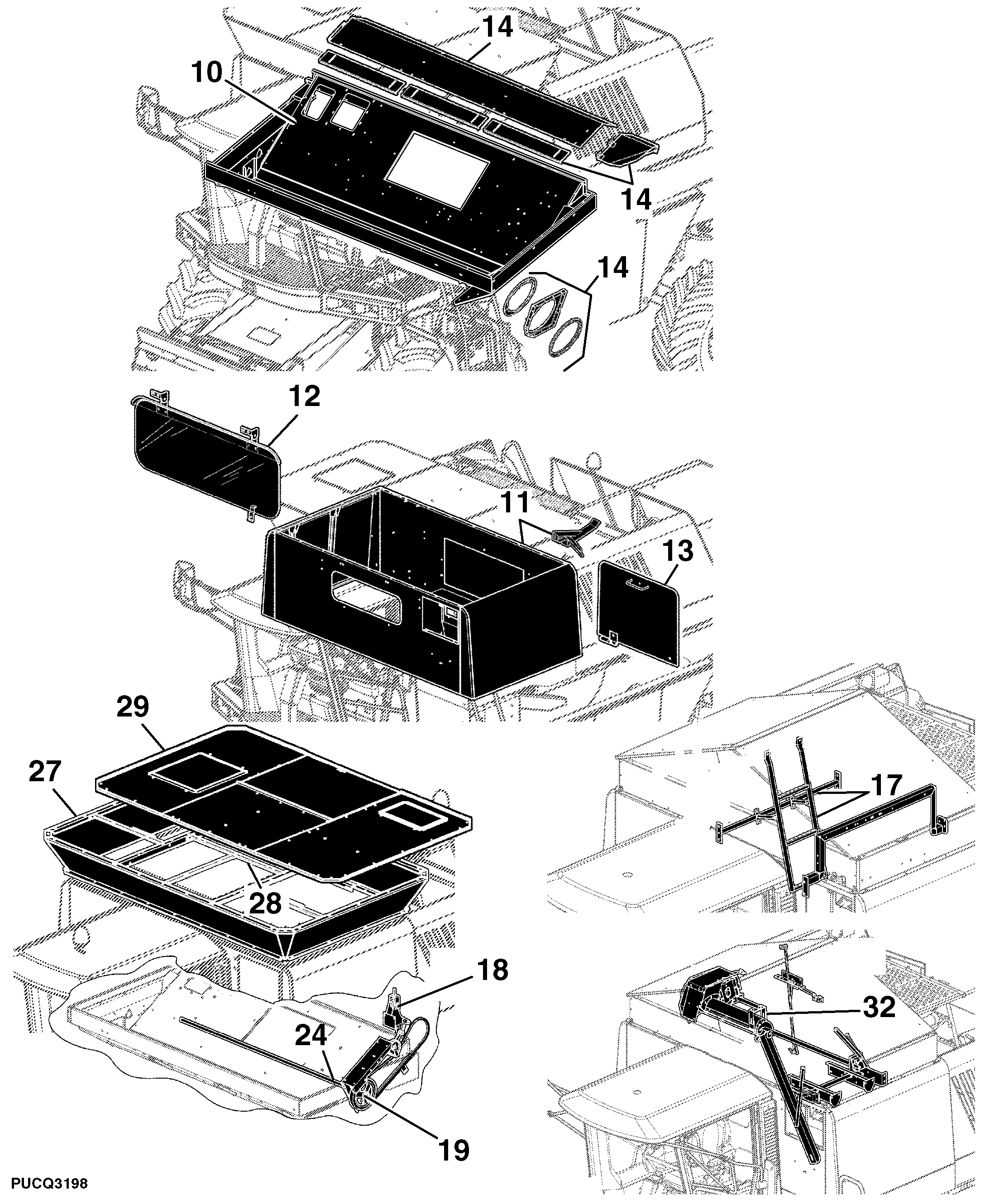

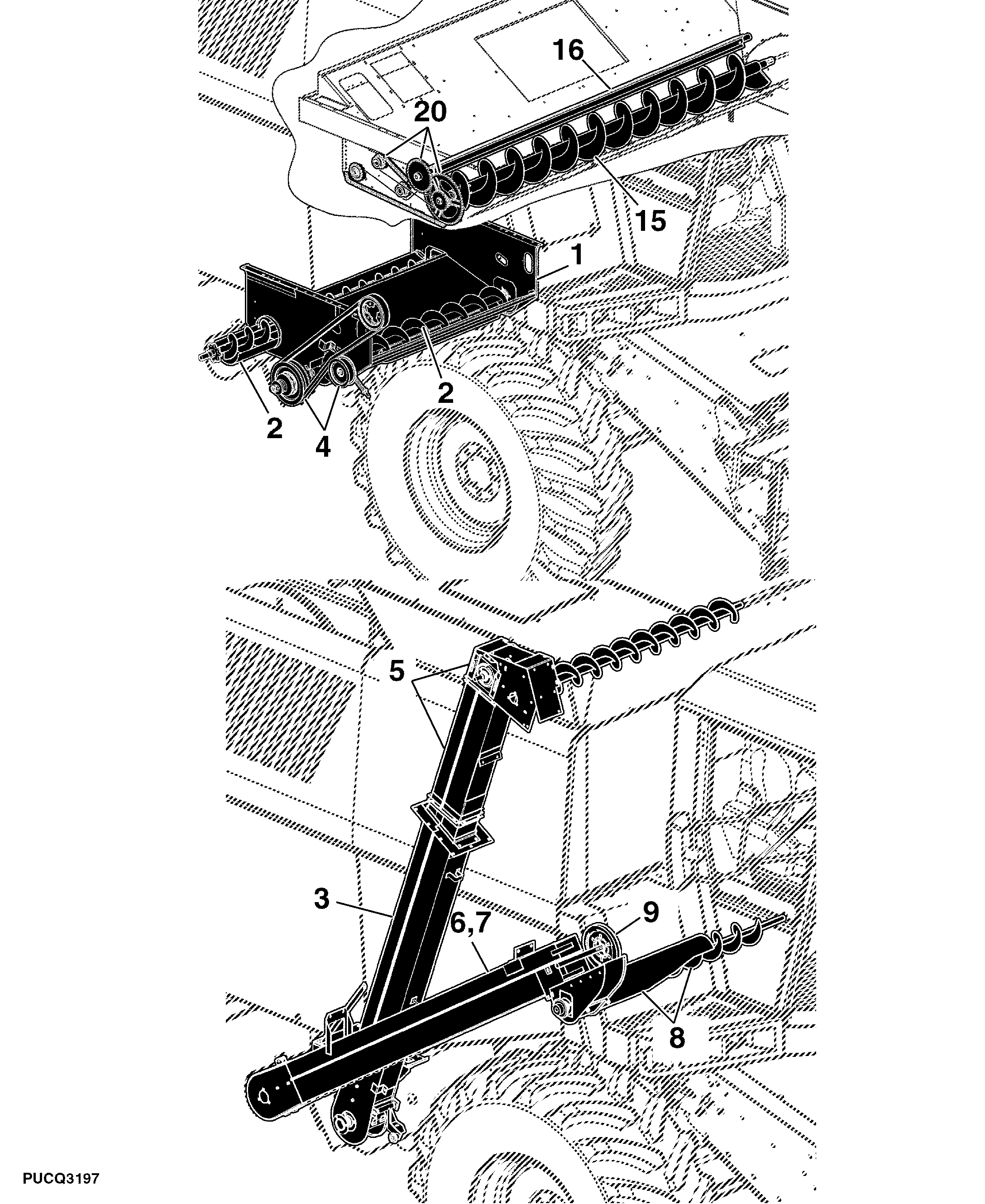

130 Elevator, Grain Tank and Unloading Auger W330

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Tailings Elevator, Upper Part	-
-	-	1	Lower Bracket, Unloading Auger	-
-	-	1	Paddle Roll, Grain Tank	-
-	-	1	Shield and Rear Covers	-
-	-	1	Structure, Grain Tank Extension	-
-	-	1	Tailing / Clean Grain Auger	-
-	-	1	Tailings / Clean Grain Auger Housing	-
-	-	1	Tailings Elevator	-
-	-	1	Tailings Elevator Drive And Tensioner	-
-	-	1	Internal Ladder, Grain Tank	-
-	-	1	Transmission Drive, Unloading Auger	-
-	-	1	Transmission, Unloading Tube	-
-	-	1	Unloading Auger Support	-
-	-	1	Unloading Auger Tube	-
-	-	1	Unloading Auger Tube Drive	-
-	-	1	Unloading Auger, 5.5 m	-
-	-	1	Upper Part, Clean Grain Elevator	-
-	-	1	Clean Grain Elevator	-
-	-	1	Inspection Window, Grain Tank	-
-	-	1	Inspection Rails	-
-	-	1	Grain Tank, Upper Part	-
-	-	1	Grain Tank, Lower Part	-
-	-	1	Grain Tank Unloading Drive	-
-	-	1	Grain Tank Unloading Auger	-
-	-	1	Grain Tank Level Auger	-
-	-	1	Grain Tank Extension	-
-	-	1	Grain Tank Assembly Parts, Lower Part	-
-	-	1	Grain Tank Access Platform	-
-	-	1	Drive/Pulley, Grain Tank Unloading	-
-	-	1	Drive, Unloading Auger Feeder	-
-	-	1	Drive, Clean Grain Elevator	-
-	-	1	Door, Electrical Box	-
-	-	1	Cover, Grain Tank Extension	-

130 Elevator, Grain Tank and Unloading Auger W330
