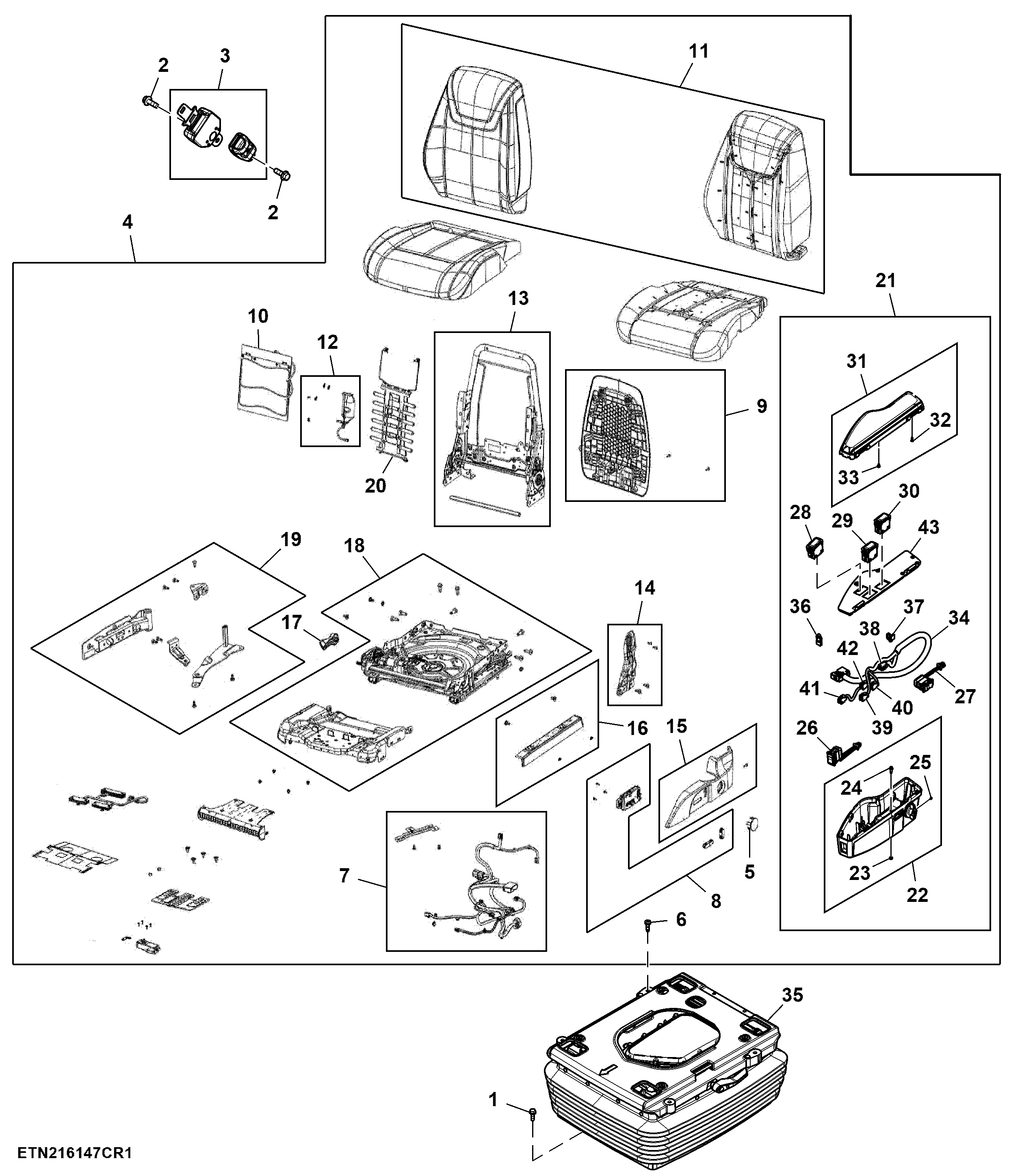

Premium Operator's Seat W/ Active Suspension

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8327	4	Screw	M8 X 25
2	R543772	2	Cap Screw	-
3	RE590504	1	Seat Belt	-
4	TA19491	1	Seat Assembly	-
5	R566458	1	Cover	-
6	R569386	4	Screw	-
7	RE590636	1	Seat Kit	Seat Harness
8	RE590645	1	Toggle/Rocker Switch	-
9	RE590669	1	Panel Kit	-
10	RE590670	1	Seat Kit	Pneumatic Lumbar System
11	RE590674	1	Seat Kit	Seat Back Cushion System
12	RE590678	1	Seat Kit	5 Liter Pneumatic Pump
13	RE590683	1	Seat Kit	Seat Back Frame
14	RE590686	1	Seat Kit	Armrest, LH
15	RE590688	1	Seat Kit	Seatside Shield
16	RE590690	1	Seat Kit	Rail Cover, LH
17	RE590700	1	Seat Kit	Swivel Handle
18	RE590702	1	Seat Kit	Seat Swivel
19	RE590704	1	Seat Kit	Pivoting Command Arm Bracket
20	RE594003	1	Seat Kit	Lumbar Service
21	RE595214	1	Armrest	-
22	RE594008	1	Armrest Kit	-
23	14M7297	6	Nut	M5
24	37M7392	6	Screw	M5 X 16
25	22M7095	1	Set Screw	M5 X 6
26	RE228095	1	Toggle/Rocker Switch	Seat Height
27	RE165589	1	Toggle/Rocker Switch	Seat Firmness
28	RE594010	1	Toggle/Rocker Switch	Cushion Length Adjust Control
29	RE593852	1	Toggle/Rocker Switch	Lumbar In / Out Adjustment Control
30	RE593851	1	Toggle/Rocker Switch	Lumbar Up / Down Adjustment Control
31	RE590663	1	Armrest Kit	-
32	37M7163	6	Screw	-
33	37M7237	7	Screw	-
34	RE590667	1	Wiring Harness	Armrest, LH
35	RE595386	1	Seat Suspension	-
36	57M10362	1	Clamp	-
37	57M9229	2	Clip	-
38	57M7713	1	Electrical Connector Assy	Suspension Firm Adjuster Switch, S194
38	57M9580	3	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
38	57M7548	1	Elec. Connector Terminal	Cavity 2
38	57M7718	1	Electrical Connector Assy	-
39	57M7713	1	Electrical Connector Assy	Lumbar Up / Down Switch, S204
39	57M7718	1	Electrical Connector Assy	-
39	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
40	57M7713	1	Electrical Connector Assy	Lumbar In / Out Switch, S203
40	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
40	57M7718	1	Electrical Connector Assy	-
41	57M7713	1	Electrical Connector Assy	Suspension Height Adjuster Switch, S201
41	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
41	57M7718	1	Electrical Connector Assy	-
42	57M7713	1	Electrical Connector Assy	Cushion Length Adjust Switch, S200
42	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
42	57M7718	1	Electrical Connector Assy	-
43	RE590648	1	Armrest Kit	-

Premium Operator's Seat W/ Active Suspension
