Steering Column, Single Tilt, Low SPEC Version (430071 - 440320), (440669 - 440669)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L203772	1	Seal	-
2	14M7298	4	Flange Nut	M8
3	AXE74424	1	Steering Column	SUB FOR AXE61850
4	RE183935	1	Key	-
5	R44342	1	Nut	-
6	L204195	1	Label	-
7	L204225	1	Plug	-
8	RE61717	1	Rotary Switch	Preheat Ignition
9	AL203544	1	Cover	-
10	AL203545	1	Cover	-
11	AL203546	1	Cover	-
12	AL211943	1	Cover	-
13	AL203554	1	Gas Operated Cylinder	-
14	AL203556	1	Pedal	-
15	AXE74429	1	Shaft	SUB FOR AL203557
16	AL203562	1	Pivot	-
17	AL203957	1	Link	-
18	L204196	1	Boot	-
19	L207394	1	Plug	-
20	AXE59782	1	Wiring Harness	Steering Column Harness
21	AXE60127	1	Module	-
22	AXE74427	1	Steering Column	SUB FOR AXE62947
23	57M7399	4	Elec. Connector Seal	Cavity 9, 10, 14, 15
23	57M7401	6	Elec. Connector Cavity Plug	Cavity 12, 18, 19, 21, 22, 24
23	57M7400	14	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 11, 13, 16, 17, 20, 23
23	57M8732	5	Elec. Connector Terminal	Cavity 11, 13, 16, 20, 23
23	57M8084	1	Elec. Connector Accessory	-
23	57M8076	1	Elec. Connector Terminal	-
23	57M8070	1	Elec. Connector Housing	Cab Main / Steering Column
24	R77480	1	Electrical Connector Assy	S3 Start Aid Switch
24	57M9461	2	Elec. Connector Terminal	Cavity A, B
25	L78202	1	Elec. Connector Housing	S1 Key Switch
25	57M7106	3	Elec. Connector Terminal	Cavity ACC, BAT1, IGN
25	57M7089	1	Elec. Connector Terminal	Cavity ST
26	57M9145	1	Elec. Connector Housing	A89 Steering Column Module
26	F053303	8	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6, 7, 8

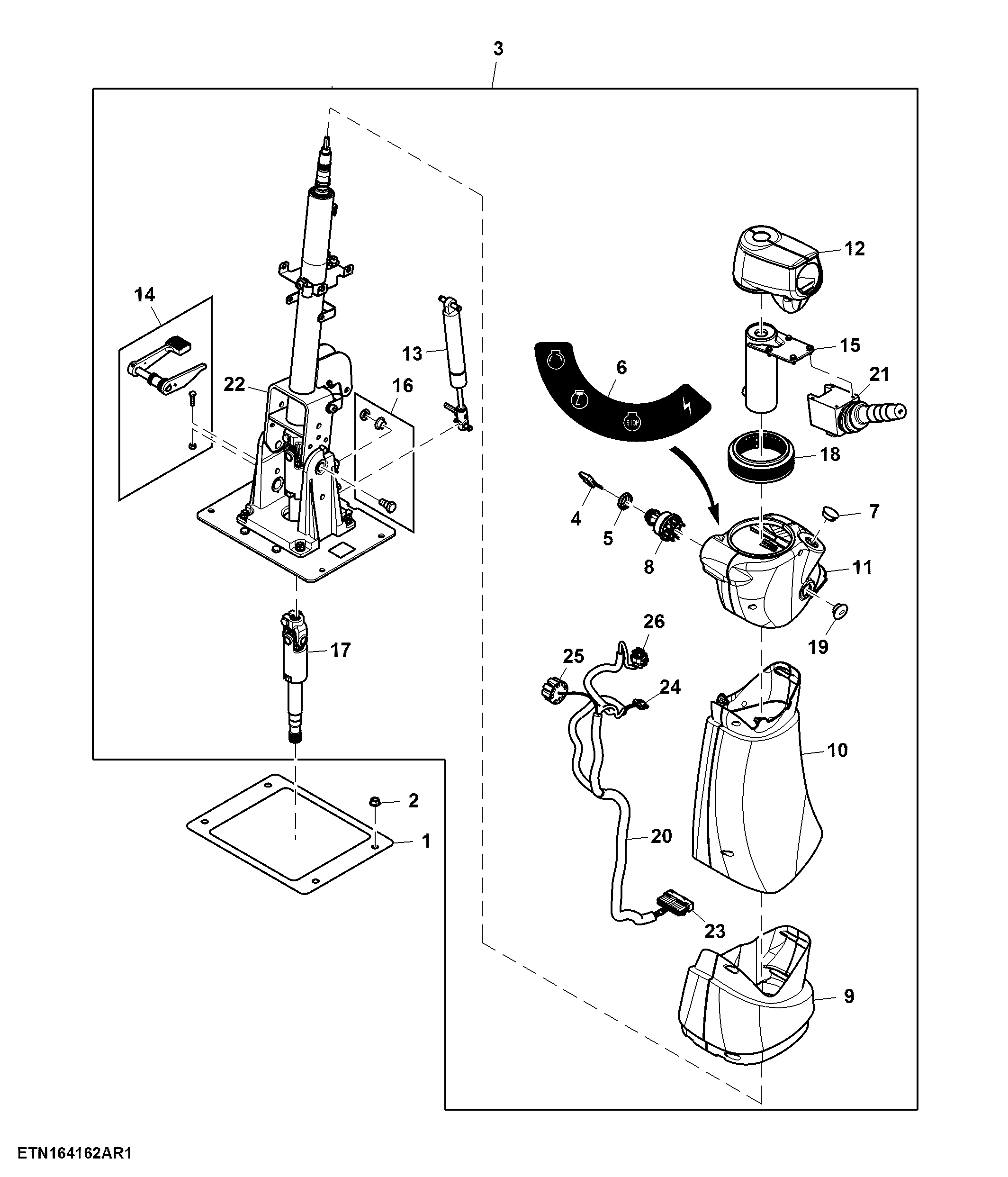

Steering Column, Single Tilt, Low SPEC Version (430071 - 440320), (440669 - 440669)
