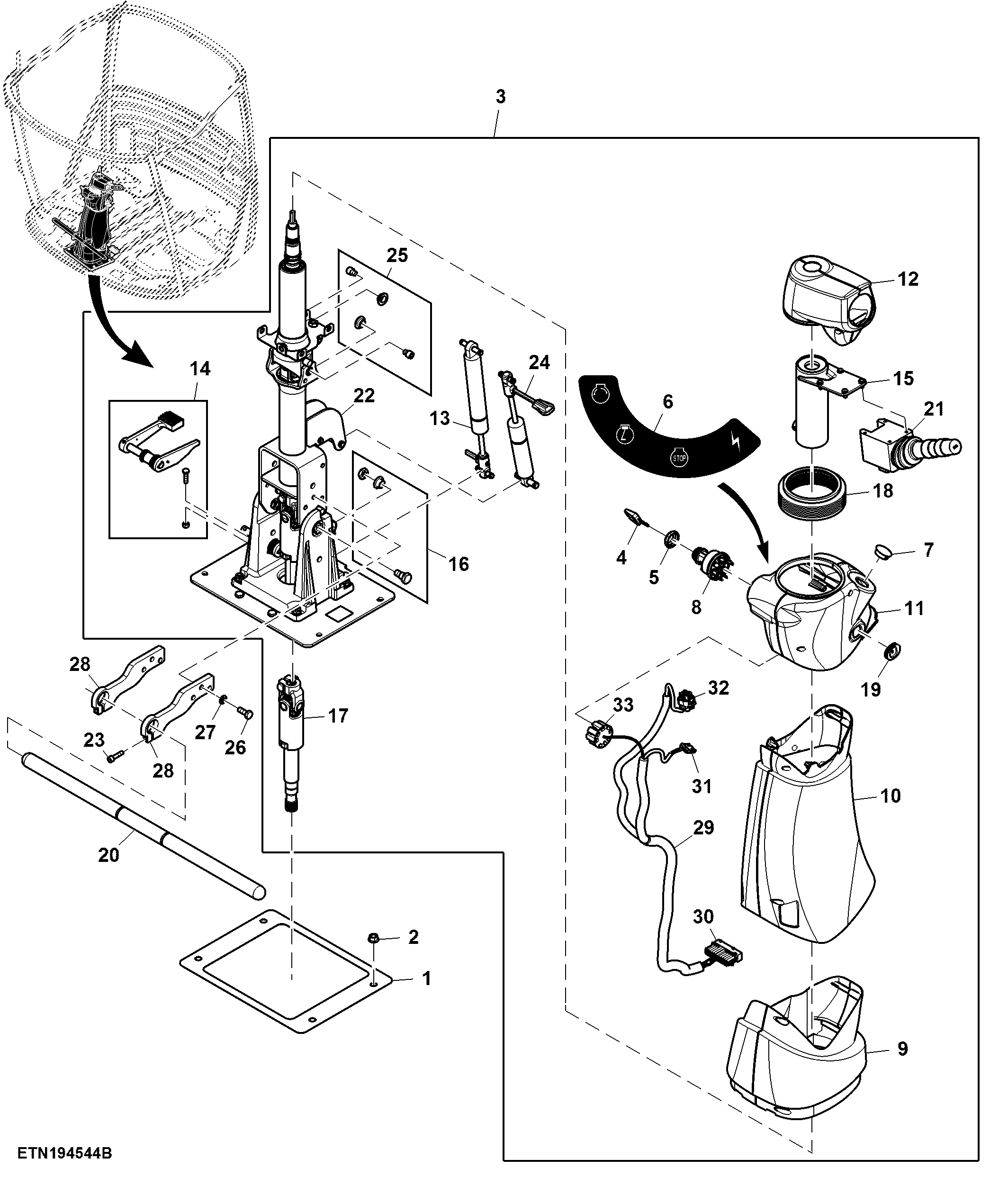

Steering Column, Dual Tilt, High SPEC Version (450617 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L203772	1	Seal	-
2	14M7298	4	Flange Nut	M8
3	AXE74423	1	Steering Column	-
4	RE183935	1	Key	-
5	R44342	1	Nut	-
6	L204195	1	Label	-
7	L204225	1	Plug	-
8	RE61717	1	Rotary Switch	-
9	AL203544	1	Cover	-
10	AXE62481	1	Cover	-
11	AL203546	1	Cover	-
12	AL211943	1	Cover	-
13	AL203554	1	Gas Operated Cylinder	-
14	AL203556	1	Pedal	-
15	AXE74429	1	Shaft	-
16	AL203562	1	Pivot	-
17	AL203957	1	Link	-
18	L204196	1	Boot	-
19	L207393	1	Grommet	-
20	HXE106398	1	Footrest	-
21	AXE60127	1	Module	-
22	AXE74428	1	Steering Column	-
23	19M8505	2	Screw	M6 X 25
24	AL203553	1	Gas Operated Cylinder	-
25	AL203561	1	Pivot	-
26	19M7881	6	Screw	M8 X 20
27	24M7095	6	Washer	8.400 X 15 X 1.600 mm
28	HXE109795	1	Bracket	-
29	AL204364	1	Wiring Harness	-
30	57M8732	5	Elec. Connector Terminal	-
30	57M7399	4	Elec. Connector Seal	-
30	57M7400	14	Elec. Connector Seal	-
30	57M10371	4	Elec. Connector Terminal	-
30	57M10560	9	Elec. Connector Terminal	-
30	57M8084	1	Elec. Connector Accessory	-
30	57M8076	1	Elec. Connector Terminal	-
30	57M8070	1	Elec. Connector Housing	Cab Main / Steering Column
31	R77480	1	Electrical Connector Assy	S3 Start Aid Switch
31	57M9461	2	Elec. Connector Terminal	-
32	57M9145	1	Elec. Connector Housing	A89 Steering Column Module
32	F053303	5	Elec. Connector Terminal	-
33	L78202	1	Elec. Connector Housing	S1 Key Switch
33	57M7106	3	Elec. Connector Terminal	-
33	57M7089	1	Elec. Connector Terminal	-

Steering Column, Dual Tilt, High SPEC Version (450617 - )
