Hydraulic Cylinder, Independent Float System (420001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7192	8	Bolt	M10 X 30
2	14M7518	8	Flange Nut	M10
3	AFH211316	1	Support	-
4	AFH212249	1	Support	-
5	19H2866	4	Cap Screw	5/16" X 4-1/4"
6	24M7055	8	Washer	8.400 X 16 X 1.600 mm
7	R77178	4	Clamp	-
8	T16464	4	Lock Nut	-
9	38H1194	2	Adapter Fitting	-
9	38H3194	2	Adapter Fitting	-
10	T77858	4	O-Ring	-
11	R29936	2	O-Ring	-
12	38H1532	2	Tee Fitting	-
13	T77857	7	O-Ring	-
14	H224073	4	Tie Band	-
15	AT383443	2	Hydraulic Accumulator	-
16	AFH212879	1	Hydraulic Hose	LGTH = 1902 mm, Float Return
17	AH176370	1	Hydraulic Cylinder	-
18	AH176374	1	Hydraulic Cylinder	-
19	AH210669	1	Hydraulic Cylinder	-
20	03M7185	2	Bolt	M8 X 25
21	14M7573	2	Flange Nut	M8
22	R50454	2	Clamp	-
23	14M7296	1	Flange Nut	M10
24	19M7804	1	Screw	M10 X 40
25	H218743	1	Clip	-
26	38H3004	1	Adapter Fitting	-
26	38H1004	1	Elbow Fitting	-
27	R26448	2	O-Ring	-
28	T77613	2	O-Ring	-
29	38H1005	1	Elbow Fitting	-
29	38H1161	1	Adapter Fitting	-
29	38H3161	1	Adapter Fitting	-
30	R26375	4	O-Ring	-
31	38H1010	1	Elbow Fitting	-
31	38H3010	1	Elbow Fitting	-
32	38H1061	1	Fitting	-
33	38H3314	1	Elbow Fitting	-
33	38H1314	1	Elbow Fitting	-
34	38H1405	1	Elbow Fitting	-
34	38H3405	1	Elbow Fitting	-
35	T77932	1	O-Ring	-
36	AFH212830	1	Hydraulic Hose	LGTH = 1369 mm, Platform Lift
36	AFH214479	1	Hydraulic Hose	LGTH = 1369 mm, Platform Lift
37	AFH212831	1	Hydraulic Hose	LGTH = 1692 mm, Float Pressure, RH
38	AFH212836	1	Hydraulic Hose	LGTH = 1550 mm, Float Return, LH
39	AFH212834	1	Hydraulic Hose	LGTH = 1926 mm, Accumulator Supply, RH
40	AFH212835	1	Hydraulic Hose	LGTH = 2232 mm, Float Return, RH
41	AFH212832	1	Hydraulic Hose	LGTH = 1712 mm, Float Pressure, LH
42	AFH212833	1	Hydraulic Hose	LGTH = 1207 mm, Accumulator Supply, LH

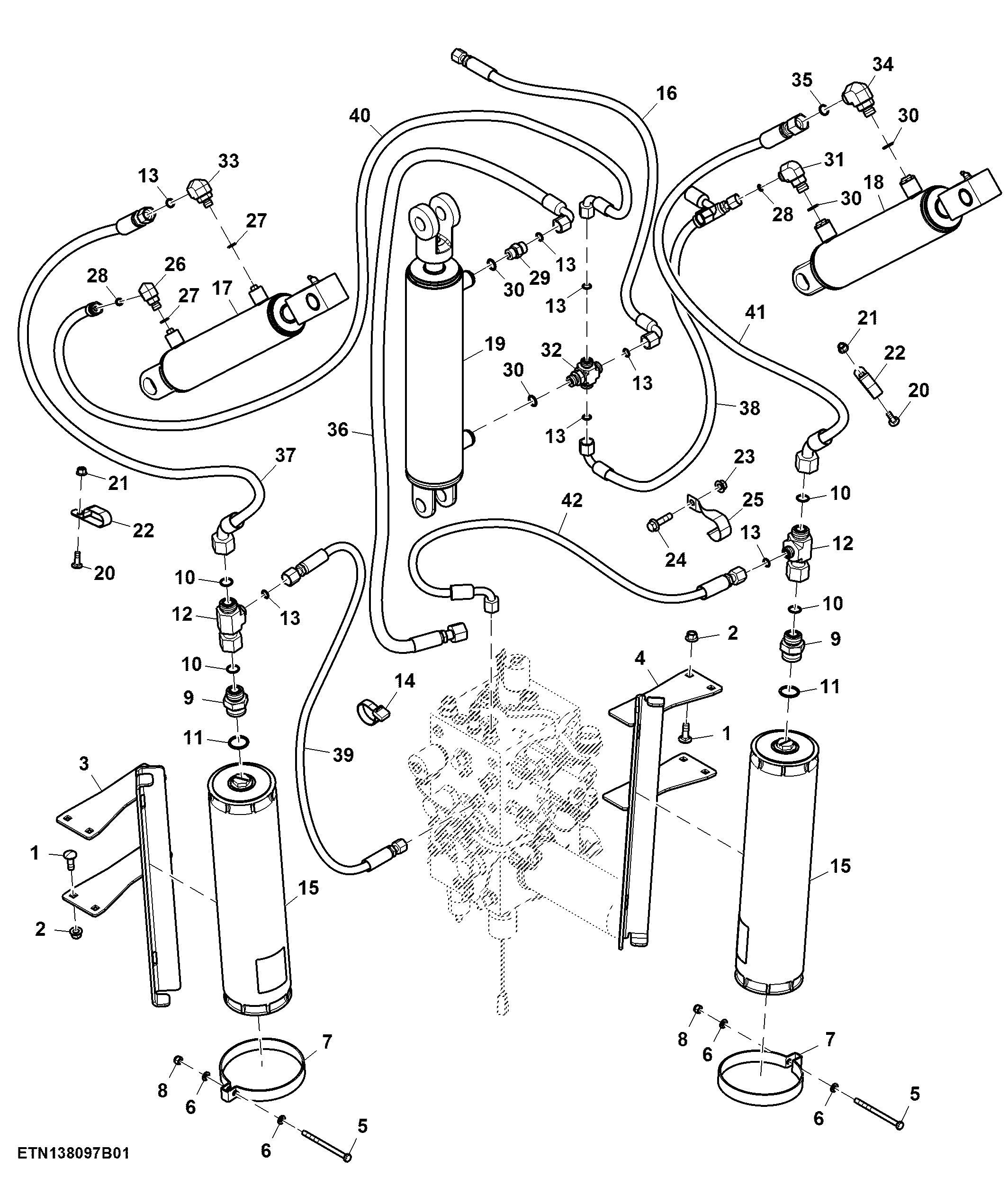

Hydraulic Cylinder, Independent Float System (420001 - )
