Hydraulic Cylinder and Hoses, Rear Steering (440001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH212841	1	Hydraulic Hose	LGTH = 1607 mm, Right Cylinder, Outboard
2	19M7851	2	Screw	M20 X 60
3	AFH212840	1	Hydraulic Hose	LGTH = 1053 mm, Left Cylinder, Outboard
4	38H1005	4	Elbow Fitting	-
4	38H3005	4	Adapter Fitting	-
5	T77857	5	O-Ring	-
6	R26375	4	O-Ring	-
7	AFH212395	1	Valve Stack	Rear Assist Steering Valve G4
8	AFH212791	1	Hydraulic Hose	LGTH = 3828 mm, Rear Steer B
9	24M7486	2	Washer	22 X 72 X 6 mm
10	AFH212842	1	Hydraulic Hose	LGTH = 1237 mm, Right Cylinder, Inboard
11	AFH212839	1	Hydraulic Hose	LGTH = 805 mm, Left Cylinder, Inboard
12	03M7185	5	Bolt	M8 X 25
13	AFH212790	1	Hydraulic Hose	LGTH = 3902 mm, Rear Steer A
14	40M7227	4	Snap Ring	-
15	FH308232	4	Bushing	-
16	R110279	2	Lock Nut	-
18	AFH203909	2	Ball Joint	-
19	N282644	2	Washer	-
20	T161031	4	Clamp	-
21	03M7192	2	Bolt	M10 X 30
22	JD7844	4	Lubrication Fitting	-
23	03M7195	4	Bolt	M10 X 45
24	19H3781	2	Screw	3/8" X 3/4"
25	R50454	6	Clamp	-
26	FH310737	2	Yoke	-
27	38H5252	1	Adapter Fitting	-
28	51M7045	2	O-Ring	19.300 X 2.200 mm
29	14M7518	7	Flange Nut	M10
30	FH329650	1	Clamp	-
31	14M7573	6	Flange Nut	M8
32	RE167154	1	Elbow Fitting	-
33	T77932	1	O-Ring	-
34	H224073	2	Tie Band	-
35	T161036	2	Washer	-
36	11M7087	2	Cotter Pin	4 X 40 mm
37	FH326060	1	Support	-
38	14H875	2	Nut	7/8"
39	M84309	5	Nut	-
40	AH211224	2	Valve	INCLUDES AH209116
41	LVU14791	1	Bolt	-
42	HXE92890	2	Orifice	-
17A	AHC17786	2	Hydraulic Cylinder	-
17B	AHC21372	2	Hydraulic Cylinder	-
17B	AHC21954	2	Hydraulic Cylinder Kit	-
17B	AHC22375	2	Hydraulic Cylinder Rod	-

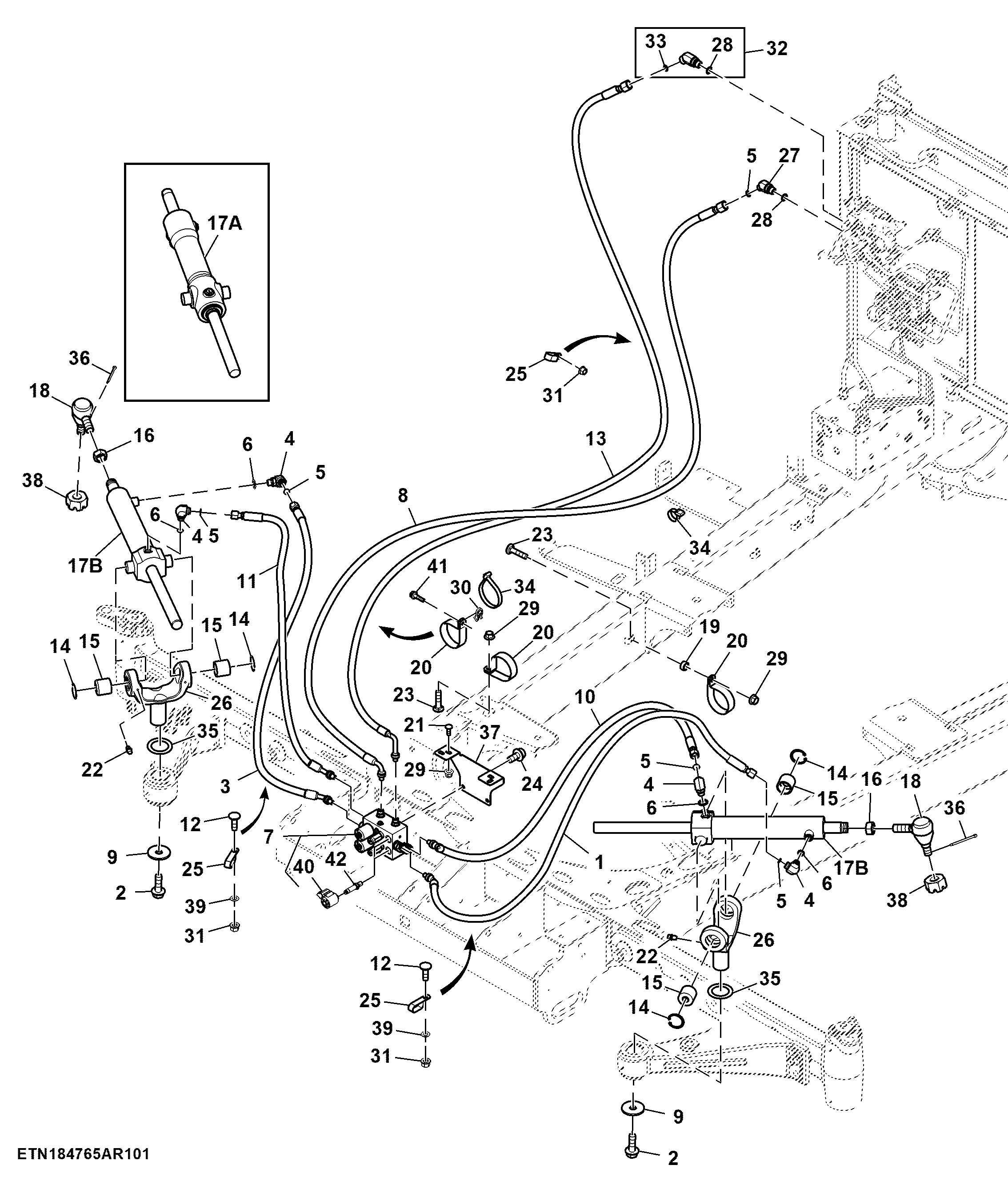

Hydraulic Cylinder and Hoses, Rear Steering (440001 - )

Нет текстового описания
