Chassis Wiring Harness (4 of 4) (420001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8867	1	Elec. Connector Terminal	X760, SSU Ground
2	57M9945	1	Elec. Connector Terminal	X921, Implement Ground
3	57M8867	1	Elec. Connector Terminal	X920, Platform Ground
4	57M7309	1	Elec. Connector Housing	X381, Hydro Oil Temp Switch
4	N282069	2	Elec. Connector Terminal	-
4	57M7297	2	Elec. Connector Terminal	-
4	57M7537	2	Elec. Connector Terminal	-
4	57M9218	2	Elec. Connector Seal	-
4	57M8164	2	Elec. Connector Terminal	-
4	57M8428	1	Electrical Connector Assy	-
4	57M9062	1	Elec.Connect Locking Device	-
4	57M11733	1	Elec. Connector Accessory	-
5	57M9062	1	Elec.Connect Locking Device	-
5	57M8428	1	Electrical Connector Assy	-
5	R78069	6	Elec. Connector Cavity Plug	-
5	N282069	7	Elec. Connector Terminal	-
5	57M8705	1	Elec. Connector Housing	X901, Platform Connector
5	57M8164	1	Elec. Connector Terminal	-
6	57M9130	1	Electrical Connector Assy	X126, Right Wheel Speed Sensor
6	57M8430	4	Elec. Connector Terminal	-
6	57M7771	2	Elec. Connector Terminal	-
6	57M9132	1	Elec.Connect Locking Device	-
7	57M8430	4	Elec. Connector Terminal	-
7	57M9132	1	Elec.Connect Locking Device	-
7	57M77771	2	PART MISSING IN WISE	-
7	57M9130	1	Electrical Connector Assy	X226, Connector
8	57M7543	1	Elec. Connector Housing	X297, Valve Block
8	57M7546	7	Elec. Connector Terminal	-
8	57M8165	10	Elec. Connector Terminal	-
8	N282070	2	Elec. Connector Terminal	-
8	R78069	4	Elec. Connector Cavity Plug	-
9	57M7680	1	Elec. Connector Terminal	-
9	57M7631	1	Elec. Connector Housing	XCN, CAN Network
9	57M8164	8	Elec. Connector Terminal	-
10	57M8617	1	Elec. Connector Housing	XA, Autotrac
10	57M8593	2	Elec. Connector Terminal	-
10	57M7546	19	Elec. Connector Terminal	-
10	57M8430	1	Elec. Connector Terminal	-
10	R78069	4	Elec. Connector Cavity Plug	-
10	57M7771	3	Elec. Connector Terminal	-
11	57M8869	1	Elec. Connector Terminal	XFTGB, Fuel Tank Ground Boss
12	57M9727	1	Elec. Connector Housing	X147, Fuel Level Sensor
12	57M10321	2	Elec. Connector Terminal	-
13	57M7344	1	Elec. Connector Housing	X230, Left Upper/Front Opt Light
13	57M7491	2	Elec. Connector Terminal	-
13	57M9218	2	Elec. Connector Seal	-
13	57M7371	1	Electrical Connector Assy	-
14	57M7371	1	Electrical Connector Assy	-
14	57M9218	2	Elec. Connector Seal	-
14	57M7344	1	Elec. Connector Housing	X235, Left Lower/Rear Opt Light
14	57M7491	2	Elec. Connector Terminal	-
15	57M8872	1	Elec. Connector Terminal	XFNG, Filler Neck Ground
16	AZ54648	1	Fuse Holder	X397, Inline Fuse, 20 Amp
17	57M8868	1	Elec. Connector Terminal	XFPG, Solenoids Ground
18	57M8868	1	Elec. Connector Terminal	XPFP, Fuel Post Ground
19	57M9535	1	Elec. Connector Terminal	XNFP, Positive Fuel Post
20	57M9535	1	Elec. Connector Terminal	XHPS, Negative Fuel Post
21	57M7796	1	Elec. Connector Housing	Header Pressure Sensor
21	57M10925	3	Elec. Connector Terminal	-
22	57M8021	1	Electrical Connector Assy	X375, Platform Forward Solenoid
22	57M8165	2	Elec. Connector Terminal	-
22	57M8022	1	Elec.Connect Locking Device	-
23	AH89557	1	Clip	-
24	AH90990	1	Clip	-
25	AH225366	1	Clip	-
26	19M7861	1	Screw	M6 X 10

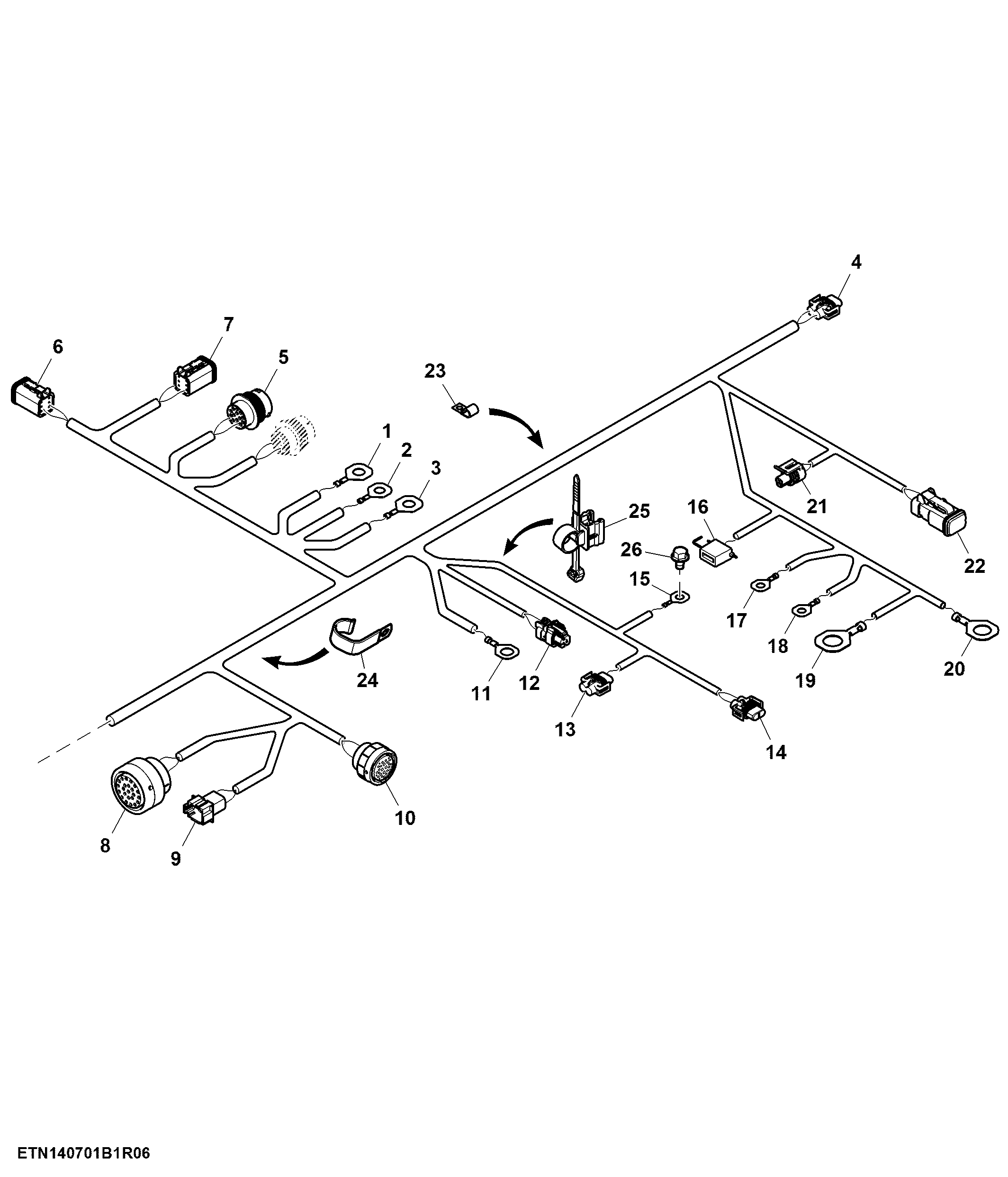

Chassis Wiring Harness (4 of 4) (420001 - )
