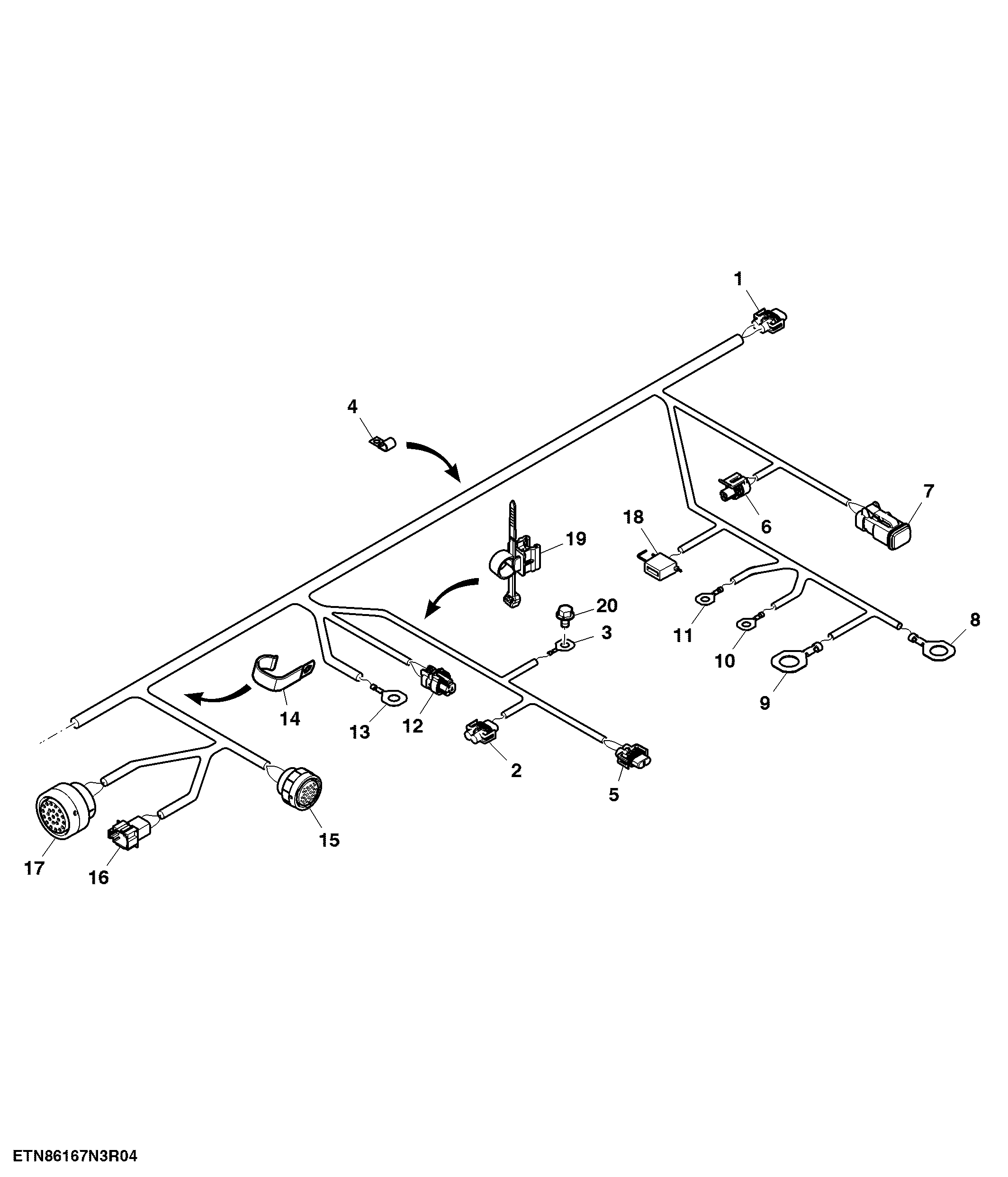

Chassis Wiring Harness (4 of 4) ( - 420000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9218	2	Elec. Connector Seal	-
1	57M7309	1	Elec. Connector Housing	X381, Hydro Oil Temp Switch
1	57M7297	2	Elec. Connector Terminal	-
2	57M7344	1	Elec. Connector Housing	X220, Left Uppper/Front Opt Light
2	57M9218	2	Elec. Connector Seal	-
2	57M7491	2	Elec. Connector Terminal	-
2	57M7371	1	Electrical Connector Assy	-
3	57M8872	1	Elec. Connector Terminal	XFNG, Filler Neck Ground
4	AH89557	1	Clip	-
5	57M7371	1	Electrical Connector Assy	-
5	57M7491	2	Elec. Connector Terminal	-
5	57M9218	2	Elec. Connector Seal	-
5	57M7344	1	Elec. Connector Housing	X235, Left Lower/Rear Opt Light
6	57M7796	1	Elec. Connector Housing	XHPS, Header Pressure Sensor
6	R104701	3	Elec. Connector Terminal	-
7	57M8021	1	Electrical Connector Assy	X375, Platform Forward Solenoid
7	57M8022	1	Elec.Connect Locking Device	-
7	57M8165	2	Elec. Connector Terminal	-
8	57M9535	1	Elec. Connector Terminal	XNFP, Negative Fuel Post
9	57M9535	1	Elec. Connector Terminal	XPFP, Positive Fuel Post
10	57M8868	1	Elec. Connector Terminal	XFPG, Fuel Post Ground
11	57M8868	1	Elec. Connector Terminal	X397, Solenoids Ground
12	57M10321	2	Elec. Connector Terminal	-
12	57M9727	1	Elec. Connector Housing	X147, Fuel Level Sensor
13	57M8869	1	Elec. Connector Terminal	XFTGB, Fuel Tank Ground Boss
14	AH90990	1	Clip	-
15	57M8617	1	Elec. Connector Housing	XA, AutoTrac™
15	57M12010	2	Elec. Connector Terminal	-
15	R78069	3	Elec. Connector Cavity Plug	-
15	57M7546	20	Elec. Connector Terminal	-
15	57M8430	1	Elec. Connector Terminal	-
15	57M7771	3	Elec. Connector Terminal	-
16	57M7631	1	Elec. Connector Housing	XCN, CAN Network
16	57M7680	1	Elec. Connector Terminal	-
16	57M8164	8	Elec. Connector Terminal	-
17	57M7543	1	Elec. Connector Housing	X297, Valve Block
17	57M7546	7	Elec. Connector Terminal	-
17	57M8165	10	Elec. Connector Terminal	-
17	R78069	4	Elec. Connector Cavity Plug	-
17	N282070	2	Elec. Connector Terminal	-
18	AZ54648	1	Fuse Holder	Inline Fuse
19	AH225366	1	Clip	-
20	19M7861	1	Screw	M6 X 10

Chassis Wiring Harness (4 of 4) ( - 420000)
