Открытый узел

65X9 Turbocharger

65X9 Turbocharger

65X9 Turbocharger

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

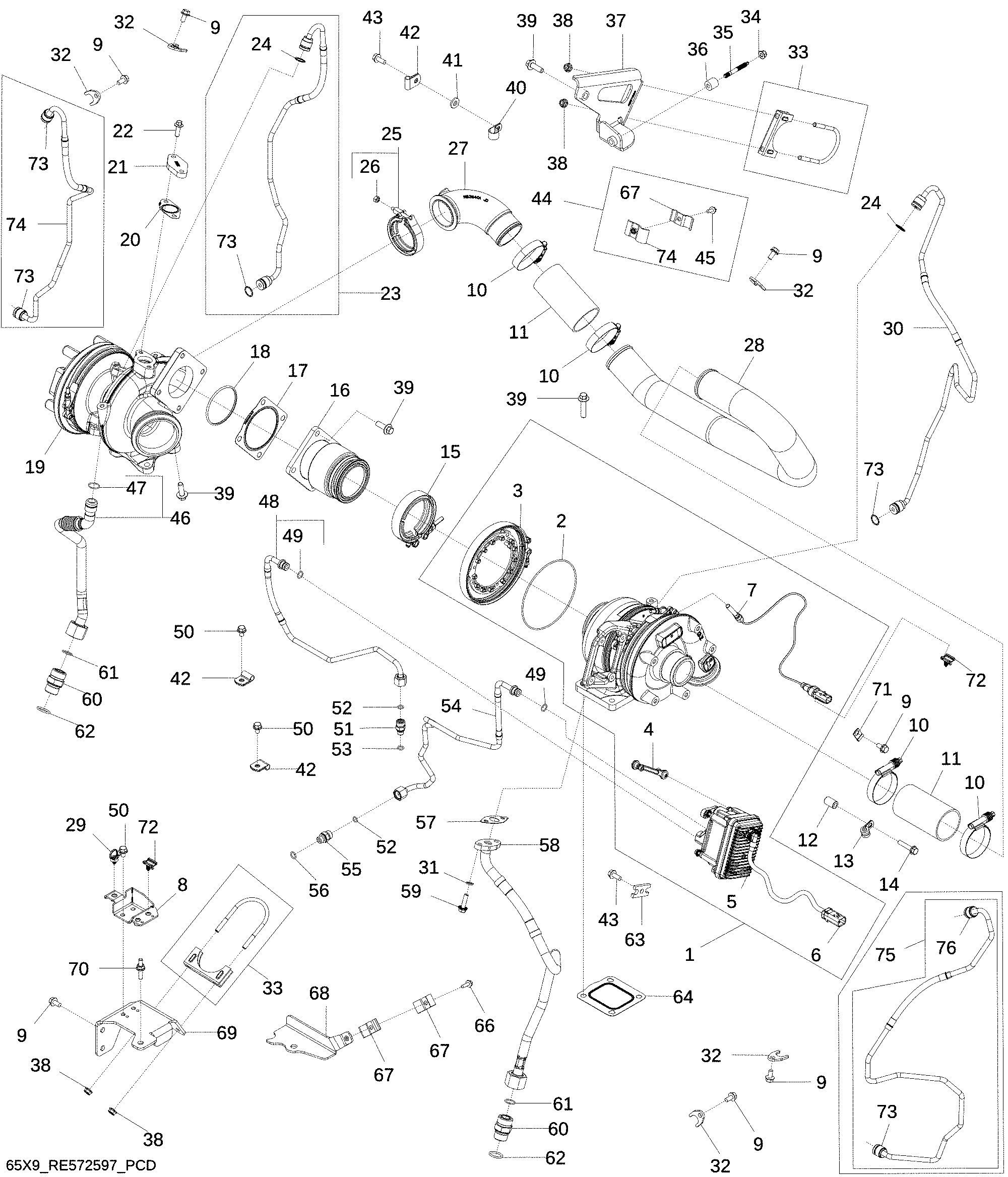

65X9 Turbocharger

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ103329	1	Turbocharger	12 V, Low Actuator SUB FOR DZ101197 OR RE549717
2	R529606	1	O-Ring	-
3	DZ100204	1	Ring Kit	Variable Geometry USE WITH DZ101197 OR DZ103329
4	DZ103789	1	Linkage Kit	Turbocharger SUB FOR RE540959
5	DZ114556	1	Actuator	12 V, INCLUDES 57M9746; SUB FOR RE548082
6	57M9746	1	Elec. Connector Housing	-
7	DZ103962	1	Sensor Kit	Turbocharger Speed SUB FOR RE540025
8	DZ113848	1	Bracket	SUB FOR DZ102586
9	19M7865	8	Screw	M8 X 16
10	RE518716	4	Clamp	Constant Torque
11	T181778	2	Hose	LGTH = 125 mm, Charged Air Cooler
12	R518859	1	Bushing	-
13	57M10828	1	Clamp	-
14	19M8317	1	Screw	M8 X 40
15	RE289839	1	Clamp	Direct Ship
16	RE539141	1	Pipe	Turbine Interstage Bellows
17	DZ10840	1	Gasket	SUB FOR R528402
18	R528112	1	Seal	Direct Ship
19	DZ103623	1	Turbocharger	Low Pressure SUB FOR RE565513
20	R536934	1	Gasket	-
21	DZ107942	1	Cover	Manifold SUB FOR R536403
22	R542509	2	Cap Screw	SUB FOR R530675
23	DZ114387	1	Oil Line	Turbo Feed
24	DZ114164	2	O-Ring	-
25	RE237876	1	Clamp	-
26	14H786	1	Nut	1/4"
27	R528401	1	Pipe Elbow	Interstage Duct
28	R550148	1	Tube	Interstage Duct
29	RE566207	1	Tie Band	High Temperature
30	DZ114369	1	Oil Line	Turbo Feed INCLUDES (3) DZ114164
31	12M7065	2	Lock Washer	8 mm
32	R529067	5	Clamp	-
33	AA46694	2	Clamp	INCLUDES (2) E63525
34	R534282	1	Flange Nut	-
35	R534281	1	Stud	-
36	R542566	1	Spacer	-
37	RE571638	1	Bracket	Interstage Duct Support
38	E63525	4	Nut	-
39	R532299	13	Cap Screw	-
40	R519502	1	Clamp	-
41	24H1682	1	Washer	13/32" X 7/8" X 0.120"
42	T38545	3	Clamp	-
43	19M7866	2	Screw	M8 X 20
44	RE541691	2	Clamp Kit	-
45	19M7775	2	Screw	M6 X 16
46	DZ104445	1	Line	Turbo Oil Drain SUB FOR RE549724
47	T142419	1	O-Ring	-
48	RE549719	1	Line	Coolant Return
49	R28776	2	O-Ring	-
50	19M7864	4	Screw	M8 X 12
51	38H5008	1	Adapter Fitting	-
52	T77613	2	O-Ring	-
53	51M7040	1	O-Ring	9.300 X 2.200 mm
54	RE572035	1	Line	Actuator Coolant Supply INCLUDES R28776
55	38H5002	1	Adapter Fitting	-
56	51M7041	1	O-Ring	11.300 X 2.200 mm
57	R521158	1	Gasket	Turbo Oil Return
58	DZ105054	1	Oil Line	Turbo Drain SUB FOR DZ101487 OR RE549722
59	19M7513	2	Cap Screw	M8 X 30, ALSO ORDER 12M7065
60	38H5005	2	Adapter Fitting	-
61	T77858	2	O-Ring	-
62	51M7047	2	O-Ring	23.600 X 2.900 mm
63	R528361	1	Clamp	Actuator Coolant Fitting
64	R534438	1	Gasket	Turbo
65	-	2	Part 65	ORDER RE541691
66	19M7862	1	Screw	M6 X 20
67	DZ104775	4	Half Clamp	High Pressure
68	DZ106020	1	Bracket	Oil Line SUB FOR DZ101241
69	-	1	Part 69	Interstage Duct Support ORDER R538335
69	R538335	1	Bracket	Interstage Duct Support
70	R529573	1	Stud	-
71	57M10907	1	Clamp	-
72	57M9940	2	Elec. Connector Accessory	-
73	R163559	4	O-Ring	-
74	RE549723	1	Oil Line	Turbo Oil Supply ORDER DZ114387; INCLUDES (2) R163559
75	DZ102505	1	Oil Line	High Pressure Turbo Feed ORDER DZ114369; SUB FOR RE549721
76	R530854	1	O-Ring	-
