Открытый узел

61FL Aftertreatment, Exhaust System

61FL Aftertreatment, Exhaust System

61FL Aftertreatment, Exhaust System

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

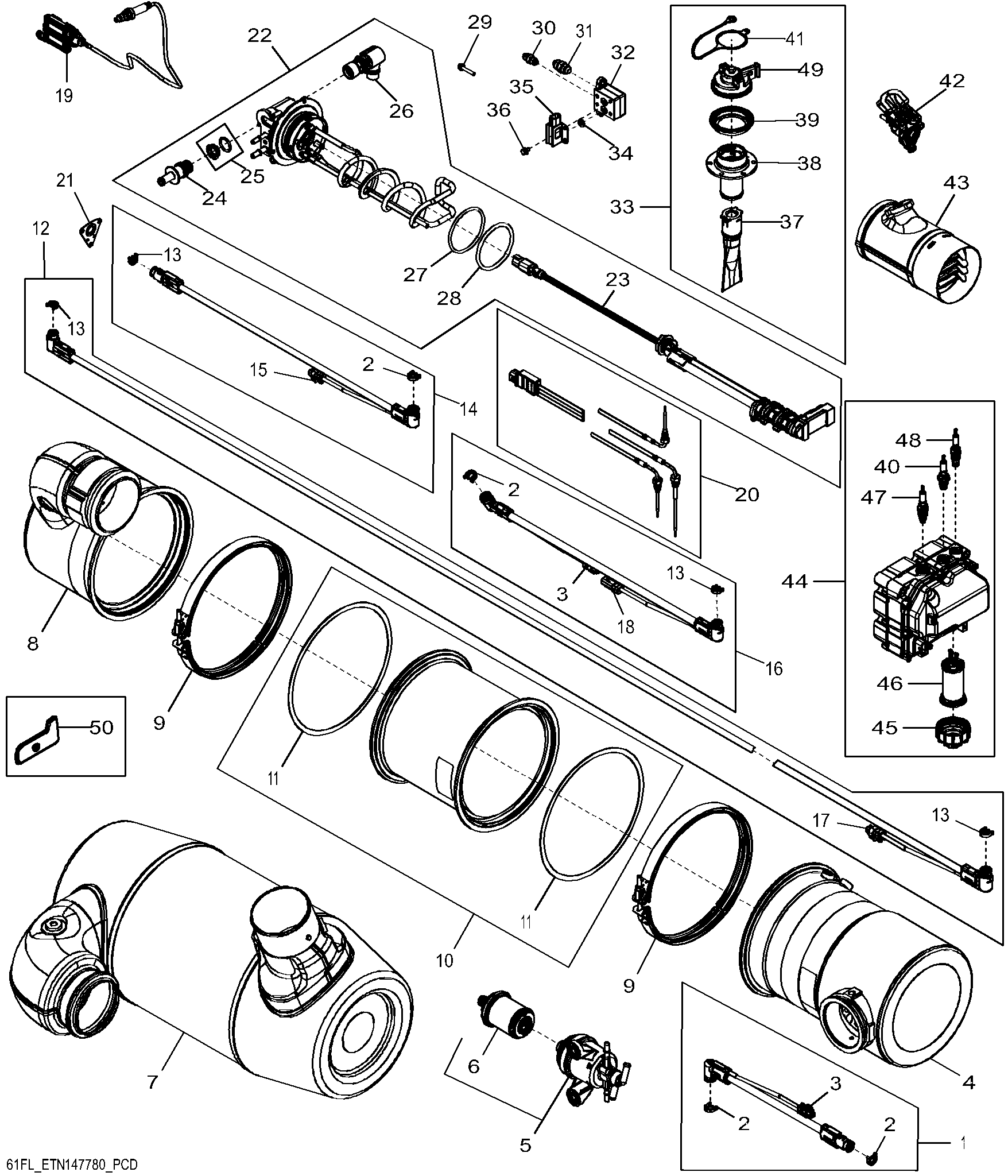

61FL Aftertreatment, Exhaust System

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ116208	1	DEF Line	12 V; LGTH = 405 mm, Suction
2	R536734	4	Clip	-
3	57M9772	2	Elec. Connector Housing	-
4	DZ100696	1	Diesel Oxidation Catalyst	Inlet MARKED RE574211; INCLUDES R530552
5	-	1	Part 5	Diesel Exhaust Fluid Inline ORDER DZ118548
5	DZ118548	1	Filter	Diesel Exhaust Fluid Inline Filter Assembly
6	DZ124403	1	Filter Kit	Diesel Exhaust Fluid Inline SUB FOR DZ110513
7	DZ100849	1	Converter	Size 5 Selective Catalytic Reduction
8	DZ100853	1	Exhaust Pipe	Outlet MARKED DZ100851; INCLUDES R530552
9	RE537767	2	Clamp	-
10	DZ100484	1	Diesel Particulate Filter	MARKED RE574212
11	R530552	2	Gasket	-
12	RE561448	1	DEF Line	LGTH = 4000 mm, Pressure SUB FOR APPL RE573112
13	R536735	4	Clip	-
14	RE559953	1	DEF Line	12 V; LGTH = 750 mm, Backflow
15	57M9774	1	Elec. Connector Housing	-
16	DZ116209	1	DEF Line	12 V; LGTH = 650 mm, Suction Jumper
17	57M9773	1	Elec. Connector Housing	-
18	57M9776	1	Elec. Connector Housing	-
19	DZ112080	2	Chemical Sensor	12 V; LGTH = 615 mm, NOx SUB FOR RE553440 OR DZ109690
20	-	1	Part 21	Temperature Module Diesel Oxidation Catalyst Diesel Particulate Filter Selective Catalytic Reduction ORDER RE568940
20	RE568940	1	Temperature Sensor	Temperature Module Diesel Oxidation Catalyst Diesel Particulate Filter Selective Catalytic Reduction
21	RE556879	1	Gasket	-
22	DZ110469	1	DEF Tank Header Assembly	12 V; LGTH = 400 mm, Gen 2 ORDER DZ118672
22	DZ118672	1	DEF Tank Header Assembly	12 V; LGTH = 400 mm, Gen 3 SUB FOR DZ111002,DZ118293 OR DZ103801
23	DZ104874	1	Sensor Kit	12 V / 24 V; LGTH = 400 mm, Gen 2 ORDER DZ119425
23	DZ119425	1	Sensor Kit	12 V / 24 V; LGTH = 400 mm, Gen 3
24	DZ104992	1	Fitting	Coolant Inlet
25	DZ104994	1	O-Ring Kit	Coolant Valve Assembly
26	DZ104871	1	Solenoid Valve	12 V
27	R539112	1	O-Ring	-
28	R539113	1	O-Ring	-
29	R537624	3	Bolt	-
30	RE542003	1	Fitting	-
31	RE543081	1	Fitting	-
32	R530632	1	Manifold	Delta Pressure Sensor MARKED R530631
33	DZ122992	1	Filler Neck	SUB FOR DZ115040
33	DZ115040	1	Filler Neck	SUB FOR AT466533
34	R527968	2	O-Ring	-
35	RE538131	1	Pressure Sensor	Delta Pressure
36	19M7861	4	Screw	M6 X 10
37	DZ114695	1	Insert	-
38	-	1	Part 43	ORDER AT472916
38	AT472916	1	Filler Neck	-
39	T386561	1	Guard	-
40	RE549605	1	Adapter Fitting	Supply Module Backflow
41	T386562	1	Retainer	-
42	RE560468	1	DEF Dosing Injector	Hose Bead ALSO ORDER RE556879
43	RE565071	1	Tube	Decomposition
44	DZ121770	1	DEF Dosing Unit Pump	12 V, Backflow SUB FOR DZ119474 OR DZ111283 OR RE552175
45	RE555351	1	Cap	Supply Module Filter
46	DZ114640	1	Filter Kit	Diesel Exhaust Fluid Injection Pump SUB FOR RE554498
47	RE549603	1	Adapter Fitting	Supply Module Inlet
48	RE549604	1	Adapter Fitting	Supply Module Outlet
49	DZ114204	1	Filler Cap	SUB FOR AT472914
50	DZ104870	1	Filter Kit	40 Micron, ORDER DZ111004
50	DZ111004	1	Filter Kit	25 Micron
51	RE559952	1	DEF Line	12 V; LGTH = 750 mm, Not Illustrated Suction ORDER DZ116208, DZ116209 AND DZ118548; INCLUDES (2) R536734
