Steering Column, Dual Tilt W/ Single Wiper Control

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE71497	1	Steering Column	-
2	R561186	1	Boot	-
3	M177942	3	Screw	-
4	RE593666	1	Module	-
5	HXE144846	1	Cover	-
6	HXE144847	1	Cover	-
7	R565760	5	Screw	-
8	RE183935	1	Key	-
9	RE594150	1	Rotary Switch	-
10	AXE71873	1	Steering Column	-
11	R561108	4	Boss	-
12	R564976	2	Spring	-
13	M78252	1	Hook Bolt	-
14	R561107	4	Bushing	-
15	R560388	1	Bolt	-
16	T359776	2	Screw	-
17	R563430	1	Bushing	-
18	R560551	1	Screw	-
19	L61335	1	Washer	-
20	HXE149964	1	Cover	-
21	H137327	2	Lock Nut	-
22	R564594	1	Bushing	-
23	40M1863	1	Snap Ring	-
24	24M6208	1	Washer	35 X 45 X 2 mm
25	AXE73162	1	Shock Absorber	-
26	HXE136374	1	Retainer	-
27	40M1817	4	Snap Ring	-
28	E83363	1	Extension Spring	-
29	40M7225	1	Snap Ring	-
30	AXE71567	1	Universal Joint With Shaft	-
31	AXE71532	1	Universal Joint With Shaft	-
32	RE593697	1	Lever	-
33	14M7350	1	Lock Nut	M6
34	24M7522	6	Washer	8.400 X 16 X 1.600 mm
35	40M1828	2	Snap Ring	-
36	14M7307	2	Lock Nut	M8
37	19M7139	6	Cap Screw	M8 X 20
38	AXE81961	1	Wiring Harness	-
39	57M8069	1	Elec. Connector Housing	-
40	57M10464	1	Elec. Connector Housing	-
41	57M13380	7	Elec. Connector Accessory	-
42	57M14504	1	Elec. Connector Housing	-
43	RE258807	1	Tie Band	-
44	AXE80611	1	Control Support	-
45	24M7055	4	Washer	8.400 X 16 X 1.600 mm
46	19M7407	4	Cap Screw	M8 X 25
47	14M7426	4	Lock Nut	M8
48	HXE135001	2	Bushing	-
49	19M7868	4	Screw	M8 X 30
50	34M3857	1	Spring Pin	5 X 24 mm
51	40M1819	1	SNAP RING	-
52	AXE71345	1	Steering Column	-
53	R224342	8	Screw	-
54	19M10826	4	Screw	M5 X 10
55	HXE145081	1	Cover	-
56	HXE149965	1	Cover	-
57	HXE146718	1	Cover	-
58	HXE146719	1	Cover	-
59	HXE146720	1	Cover	-

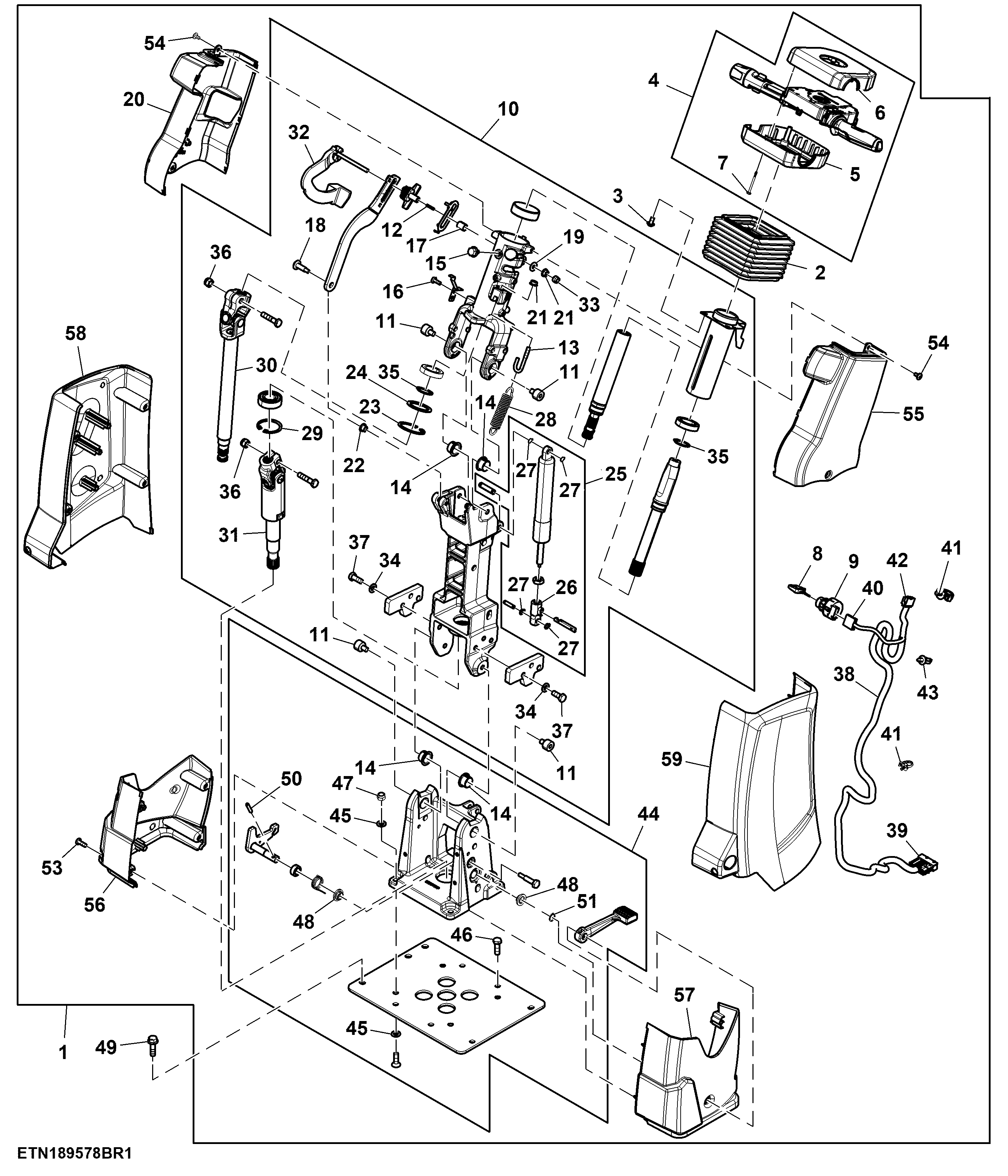

Steering Column, Dual Tilt W/ Single Wiper Control
