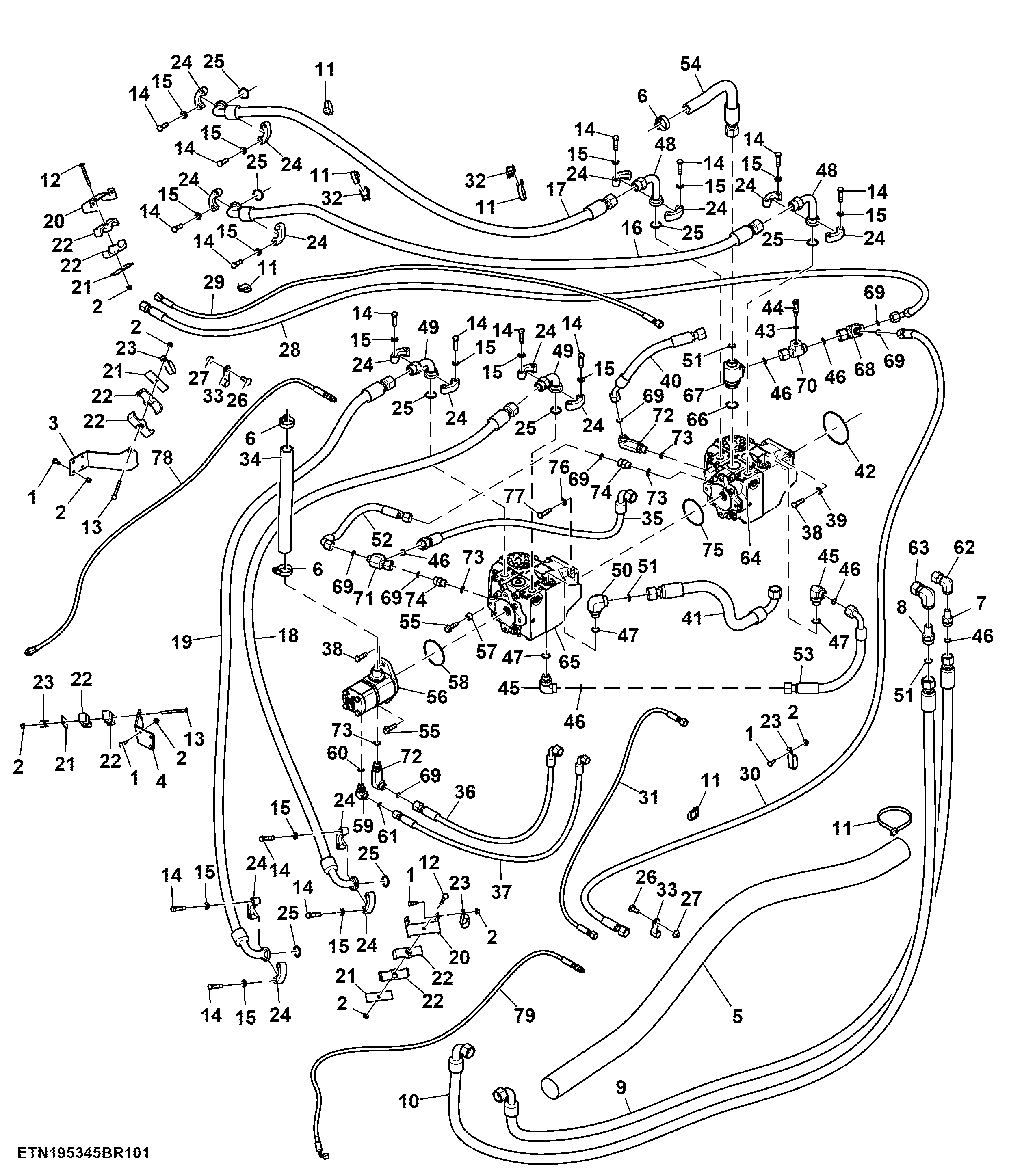

Ground Drive Pump Components (1 / 5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7185	9	Bolt	M8 X 25
2	14M7573	13	Flange Nut	M8
3	FH340590	1	Support	-
4	FH340591	1	Support	-
5	FH341880	1	Hose Guard	-
6	RE56097	3	Clamp	-
7	62M1013	1	Fitting	-
8	62M1014	1	Fitting	-
9	AFH221668	1	Hydraulic Hose	LGTH = 3500 mm, Oil Cooler Out
10	AFH221669	1	Hydraulic Hose	LGTH = 3550 mm, Oil Cooler In
11	H224073	11	Tie Band	-
12	03M7267	2	Bolt	M8 X 80
13	19M7913	2	Screw	M8 X 90
14	19M7496	32	Cap Screw	M12 X 45
15	24M7047	32	Washer	13 X 24 X 2.500 mm
16	AFH222473	1	Hydraulic Hose	LGTH = 2293 mm, RH Drive High Pressure
17	AFH222472	1	Hydraulic Hose	LGTH = 2153 mm, RH Drive High Pressure
18	AFH222475	1	Hydraulic Hose	LGTH = 1783 mm, LH Drive High Pressure
19	AFH222474	1	Hydraulic Hose	LGTH = 1863 mm, LH Drive High Pressure
20	FH310102	2	Hose Clamp	-
21	H114901	4	Plate	-
22	H150222	8	Hose Clamp	-
23	R50454	4	Clamp	-
24	T107068	16	Flange Fitting	-
25	T78313	8	O-Ring	-
26	03M7198	2	Bolt	M12 X 30
27	14M7299	2	Flange Nut	M12
28	AFH221478	1	Hydraulic Hose	LGTH = 3086 mm, RH Drive Case Drain
29	AFH221457	1	Hydraulic Hose	LGTH = 2902 mm, RH Motor Brake
30	AFH221477	1	Hydraulic Hose	LGTH = 2695 mm, LH Drive Case Drain
31	AFH221456	1	Hydraulic Hose	LGTH = 2620 mm, LH Motor Brake
32	AN209168	4	Swivel	-
33	FH343156	2	Clamp	-
35	AFH221667	1	Hydraulic Hose	LGTH = 1100 mm, Charge Supply
36	AFH219973	1	Hydraulic Hose	LGTH = 645 mm, AUX Out Steering
37	AFH219974	1	Hydraulic Hose	LGTH = 700 mm, AUX Outlet 2
38	19M7493	4	Cap Screw	M12 X 40
39	24M7234	4	Washer	13 X 25 X 3 mm
40	AFH222482	1	Hydraulic Hose	LGTH = 372 mm, Charge Outlet 1
41	AFH219960	1	Hydraulic Hose	LGTH = 764 mm, Case Tie 2
42	R99702	1	O-Ring	-
43	51M7041	1	O-Ring	11.300 X 2.200 mm
44	RE52722	1	Temperature Sensor	-
45	38H3007	2	Adapter Fitting	-
46	T77858	5	O-Ring	-
47	U12547	3	O-Ring	-
48	T143372	2	Adapter Fitting	-
49	T149315	2	Adapter Fitting	-
50	38H3305	1	Elbow Fitting	-
51	T76938	3	O-Ring	-
52	AFH221476	1	Hydraulic Hose	LGTH = 450 mm, Case Tie 1
53	AFH219959	1	Hydraulic Hose	LGTH = 490 mm, Case Tie 1
55	19M7791	3	Bolt	M12 X 40
56	AFH219511	1	Hydraulic Pump	-
57	E72965	1	Spacer	-
58	T155995	1	O-Ring	-
59	38H3005	1	Adapter Fitting	-
60	R26375	1	O-Ring	-
61	T77857	1	O-Ring	-
62	62H1024	1	Adapter Fitting	-
63	62H1025	1	Adapter Fitting	-
64	AFH219187	1	Hydraulic Pump	LH
65	AFH219186	1	Hydraulic Pump	RH
66	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
67	38H1574	1	Tee Fitting	-
68	38H5585	1	Tee Fitting	-
69	T77932	7	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
70	T308604	1	Tee Fitting	-
71	38H5251	1	Adapter Fitting	-
72	38H3585	2	Elbow Fitting	-
73	R26906	4	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
74	38H3162	2	Adapter Fitting	-
75	-	1	Part 77	-
76	T223706	4	Washer	-
77	-	4	Part 79	-
78	AFH219978	1	Hydraulic Hose	LGTH = 2720 mm, RH Motor Shift - Single Speed
79	AFH219979	1	Hydraulic Hose	LGTH = 2385 mm, LH Motor Shift - Single Speed
34A	AFH219972	1	Hydraulic Hose	LGTH = 416 mm, AUX Suction
34B	AFH222833	1	Hydraulic Hose	LGTH = 422 mm, AUX Suction, SUB FOR AFH219972
54A	AFH219969	1	Hydraulic Hose	LGTH = 495 mm, Middle Suction
54B	AFH222832	1	Hydraulic Hose	LGTH = 441 mm, Middle Suction, SUB FOR AFH219969
