Hydraulic Lines, Tilt and Float Cylinder (410001 - 420000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7518	8	Flange Nut	M10
2	03M7192	8	Bolt	M10 X 30
3	R77178	4	Clamp	-
4	L114178	4	Clamp	-
5	19H2866	4	Cap Screw	5/16" X 4-1/4"
6	38H1061	1	Fitting	-
7	T16464	4	Lock Nut	-
8	24M7055	8	Washer	8.400 X 16 X 1.600 mm
9	H224073	4	Tie Band	-
10	AFH207486	1	Hydraulic Hose	(Float Return) LGTH = 1902 mm
11	AFH212249	1	Support	RH
12	T161031	2	Clamp	-
13	T77932	1	O-Ring	-
14	14M7296	1	Flange Nut	M10
15	AFH207485	1	Hydraulic Hose	(Platform Lift) LGTH = 1501 mm
16	19M7804	1	Screw	M10 X 40
17	14M7573	2	Flange Nut	M8
18	AT415375	2	Accumulator Kit	-
19	R26448	1	O-Ring	-
20	T77613	1	O-Ring	-
21	38H1004	1	Elbow Fitting	-
22	AFH211316	1	Support	LH
23	03M7185	2	Bolt	M8 X 25
24	AFH207483	1	Hydraulic Hose	(Float Return, LH) LGTH = 1550 mm
25	AFH208014	1	Hydraulic Hose	(Float Pressure, RH) LGTH = 1477 mm
26	AFH208015	1	Hydraulic Hose	(Float Pressure, LH) LGTH = 2491 mm
27	AFH209988	1	Hydraulic Hose	(Accumulator Supply, LH) LGTH = 1328 mm
28	AFH209989	1	Hydraulic Hose	(Accumulator Supply, RH) LGTH = 1852 mm
29	AH176370	1	Hydraulic Cylinder	-
30	AH176374	1	Hydraulic Cylinder	-
31	AH210669	1	Hydraulic Cylinder	-
32	H218743	1	Clip	-
33	R50454	2	Clamp	-
34	AFH207478	1	Hydraulic Hose	(Float Return, RH) LGTH = 2232 mm
35	38H1532	2	Tee Fitting	-
36	T77858	4	O-Ring	-
37	T77857	7	O-Ring	-
38	38H1194	1	Adapter Fitting	-
39	R29936	2	O-Ring	-
40	38H1010	1	Elbow Fitting	-
41	R26375	4	O-Ring	-
42	38H1005	1	Elbow Fitting	-
43	38H1314	1	Elbow Fitting	-
44	38H1405	1	Elbow Fitting	-

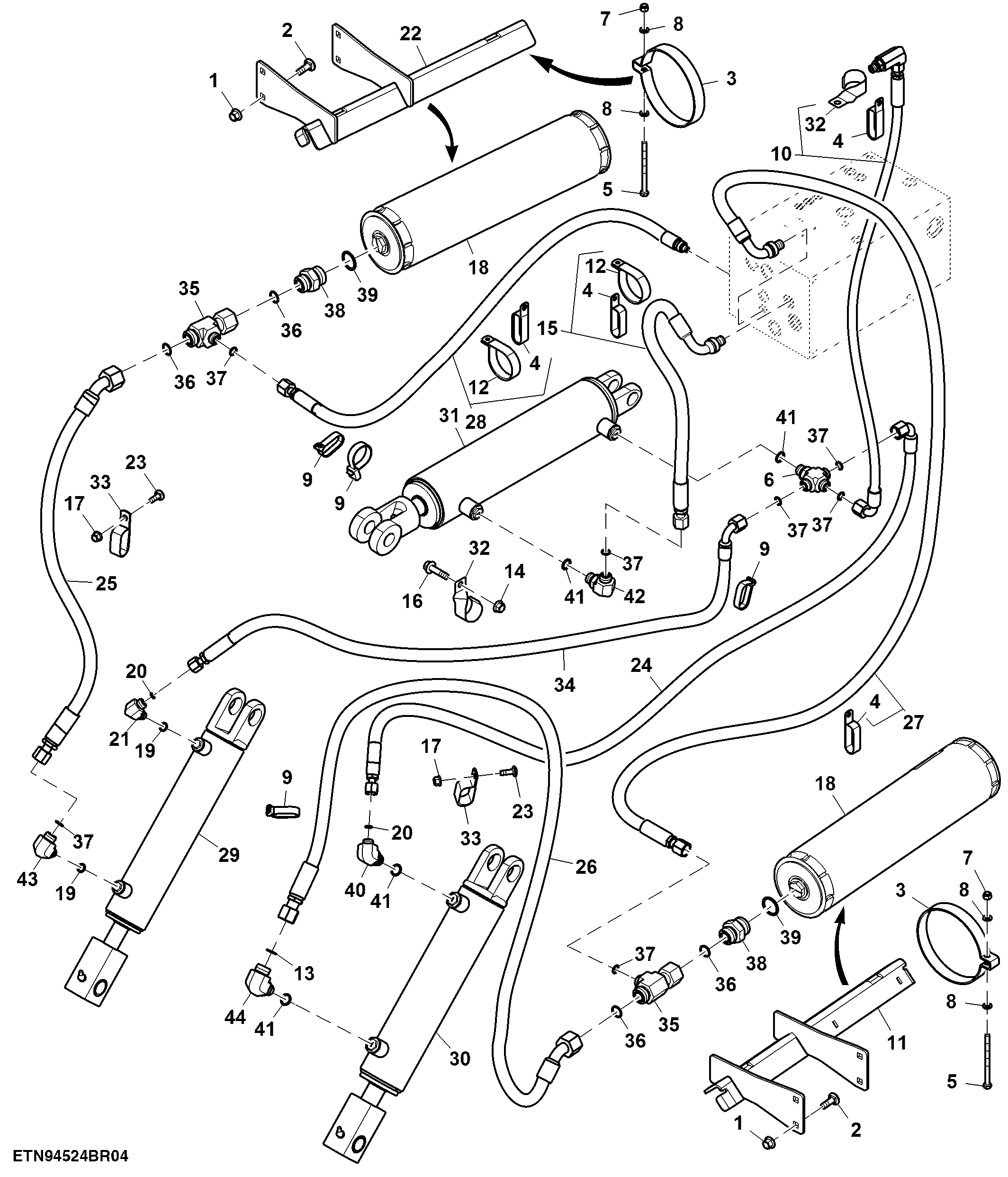

Hydraulic Lines, Tilt and Float Cylinder (410001 - 420000)
