Большое обновление пильных узлов

Смотреть

Открытый узел

Chassis Wiring Harness (3 of 4) ( - 420000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
12	57M8430	4	Elec. Connector Terminal	-
12	57M9130	1	Electrical Connector Assy	X226, Left Wheel Speed Sensor
12	57M9132	1	Elec.Connect Locking Device	-
12	57M7771	2	Elec. Connector Terminal	-
13	57M9130	1	Electrical Connector Assy	X126, Right Wheel Speed Sensor
13	57M8430	4	Elec. Connector Terminal	-
13	57M7771	2	Elec. Connector Terminal	-
13	57M9132	1	Elec.Connect Locking Device	-
14	57M8705	1	Elec. Connector Housing	X901, Platform Connector
14	N282068	5	Elec. Connector Terminal	-
14	R78069	4	Elec. Connector Cavity Plug	-
14	N282069	5	Elec. Connector Terminal	-
15	57M8868	1	Elec. Connector Terminal	XATACG, AutoTrac™ Actuator Clutch Ground
16	57M8867	1	Elec. Connector Terminal	X920, Platform Ground
17	57M8867	1	Elec. Connector Terminal	X760, SSU Ground
18	57M7344	1	Elec. Connector Housing	X121, Right Lower/Rear Opt Light
18	57M7371	1	Electrical Connector Assy	-
18	57M7491	2	Elec. Connector Terminal	-
18	57M9218	2	Elec. Connector Seal	-
19	57M7344	1	Elec. Connector Housing	X123, Right Upper/Front Opt Light
19	57M9218	2	Elec. Connector Seal	-
19	57M7491	2	Elec. Connector Terminal	-
19	57M7371	1	Electrical Connector Assy	-
20	57M8869	1	Elec. Connector Terminal	X761, Starter Relay Ground
21	57M8873	1	Elec. Connector Terminal	X738, Starter Relay Coil
22	57M8869	1	Elec. Connector Terminal	X743, Starter Relay Contact
23	57M8868	1	Elec. Connector Terminal	X742, Starter Relay Power
24	57M8869	1	Elec. Connector Terminal	XPFPL, Fuel Post Power Line
25	57M8868	1	Elec. Connector Terminal	X420, Battery
26	AFH205614	1	Fuse Box	XFC1, Fuse Center 1
26	R78062	9	Elec. Connector Seal	-
26	57M9218	1	Elec. Connector Seal	-
26	57M9216	3	Elec. Connector Seal	-
26	57M9198	9	Elec. Connector Terminal	-
26	57M7903	4	Elec. Connector Housing	-
26	R78064	7	Elec. Connector Cavity Plug	-
27	57M9909	1	Elec. Connector Cable Seal	-
27	57M8892	1	Elec. Connector Terminal	-
27	R78064	2	Elec. Connector Cavity Plug	-
27	57M7903	17	Elec. Connector Housing	-
27	57M9218	8	Elec. Connector Seal	-
27	57M9216	9	Elec. Connector Seal	-
27	AFH205614	1	Fuse Box	XFC2, Fuse Center 2
28	19M7640	8	Cap Screw	M5 X 12
29	24M7087	8	Washer	5.500 X 10 X 1 mm
30	14M7303	4	Flange Nut	M6
31	57M7630	1	Electrical Connector Assy	XDWA, DWA
31	57M7542	2	Elec. Connector Terminal	-
31	R78065	3	Elec. Connector Terminal	-
31	57M11287	1	Elec. Connector Accessory	-
31	57M7677	1	Elec. Connector Terminal	-
32	AFH209750	1	Fuse	20 en_USAMP, 20A

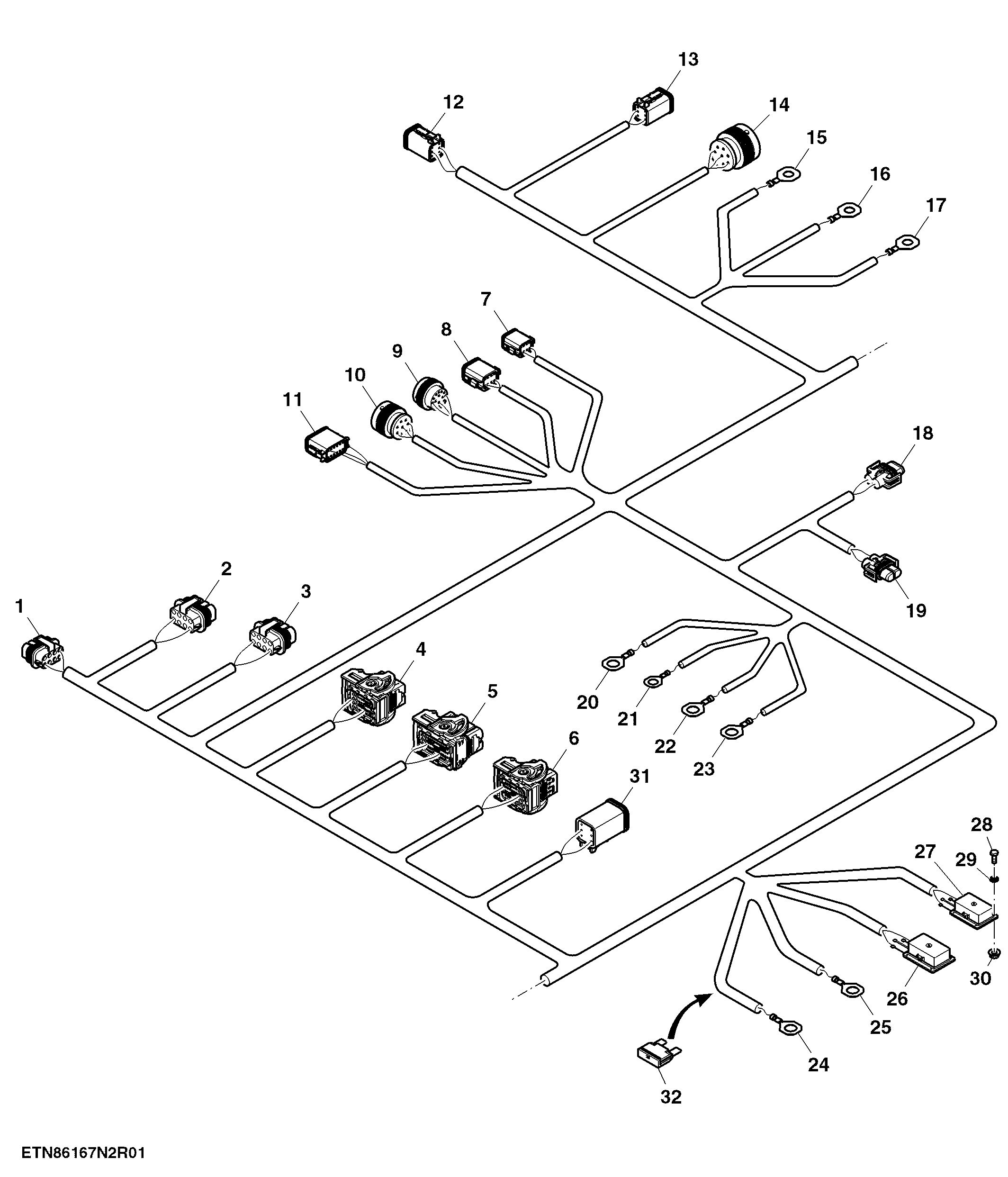

Chassis Wiring Harness (3 of 4) ( - 420000)
