Открытый узел

Armrest Wiring Harness W/ Ethernet, Single CAN Bus

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE41375	1	Wiring Harness	Armrest, Single Can Bus; SUB FOR AL214564
2	AL211750	1	Wiring Harness	Armrest Harness, Ethernet
3	57M10609	1	Elec. Connector Housing	X553, Control Unit, Cab
3	57M10604	1	Elec. Connector Housing	-
3	57M10590	14	Elec. Connector Housing	-
3	57M10331	7	Elec. Connector Terminal	-
3	57M10617	1	Elec. Connector Housing	-
3	57M10333	10	Elec. Connector Cavity Plug	-
4	57M10420	1	Elec. Connector Housing	X554, Control Unit, Cab
4	57M10333	17	Elec. Connector Cavity Plug	-
4	57M10331	8	Elec. Connector Terminal	-
4	57M10590	18	Elec. Connector Housing	-
4	57M10488	5	Elec. Connector Terminal	-
4	57M10613	1	Elec. Connector Housing	-
5	57M10331	4	Elec. Connector Terminal	-
5	57M10334	2	Elec. Connector Cavity Plug	-
5	57M10333	7	Elec. Connector Cavity Plug	-
5	57M10488	1	Elec. Connector Terminal	-
5	57M10607	1	Elec. Connector Housing	X555, Control Unit, Cab
5	57M10604	1	Elec. Connector Housing	-
5	57M10590	16	Elec. Connector Housing	-
6	RE207311	1	Electronic Control Unit	-
7	57M7260	1	Elec. Connector Housing	X580F, Cab CAN Bus Active Terminator
7	57M7291	1	Electrical Connector Assy	-
7	57M7493	2	Elec. Connector Seal	-
7	57M7377	4	Elec. Connector Seal	-
7	R104846	6	Elec. Connector Terminal	-
8	L171035	1	Tie Band	-
9	57M7715	1	Electrical Connector Assy	X667M, Multifunctional Control Handle
9	57M7719	1	Electrical Connector Assy	-
9	51M10450	5	Elec. Connector Terminal	-
10	57M8802	1	Elec. Connector Housing	X8574F, Cab Switch Module
10	57M8783	1	Elec. Connector Housing	-
10	57M7549	5	Elec. Connector Terminal	-
10	57M10558	1	Elec. Connector Terminal	-
11	57M10558	6	Elec. Connector Terminal	-
11	57M7549	2	Elec. Connector Terminal	-
11	57M7437	2	Elec. Connector Terminal	-
11	57M7550	3	Elec. Connector Terminal	-
11	57M7710	1	Electrical Connector Assy	X8961F, Armrest to SDU / GS3 EXT
12	57M7713	1	Electrical Connector Assy	X656M, Separator Engage
12	57M7718	1	Electrical Connector Assy	-
12	57M7548	3	Elec. Connector Terminal	-
13	57M7713	1	Electrical Connector Assy	X657M, Header Engage
13	57M7718	1	Electrical Connector Assy	-
13	57M7548	4	Elec. Connector Terminal	-
14	57M7472	1	Electrical Connector Assy	X632F, Armrest Propulsion Ctrl Exit
14	57M7549	5	Elec. Connector Terminal	-
15	57M8906	1	Elec. Connector Housing	X677F, Handle Position Sensor
15	57M10925	1	Elec. Connector Terminal	-
15	57M7496	5	Elec. Connector Terminal	-
16	57M10445	1	Elec. Connector Housing	X669F, Armrest Switch Matrix
16	57M10447	1	Elec. Connector Housing	-
16	57M10449	21	Elec. Connector Terminal	-
17	57M10484	1	Elec. Connector Housing	X672F, Armrest Switch Matrix
17	57M10447	1	Elec. Connector Housing	-
17	57M10449	20	Elec. Connector Terminal	-
18	T43361	2	Clip	-
19	19M7744	1	Cap Screw	M12 X 35
20	R44302	3	Tie Band	-
21	L207347	1	Bracket	-
22	24M7054	2	Washer	6.400 X 12 X 1.600 mm
23	14M7272	1	Nut	M6
24	19M7768	1	Screw	M6 X 16
25	L206645	2	Tie Band	-
26	24M7047	2	Washer	13 X 24 X 2.500 mm
27	14M7275	1	Nut	M12
28	57M7400	1	Elec. Connector Seal	-
28	57M7399	5	Elec. Connector Seal	-
28	57M7403	15	Elec. Connector Cavity Plug	-
28	57M7402	26	Elec. Connector Cable Seal	-
28	57M8241	15	Elec. Connector Terminal	-
28	57M8584	1	Elec. Connector Terminal	-
28	57M8585	5	Elec. Connector Terminal	-
28	57M9161	13	Elec. Connector Terminal	-
28	57M10557	28	Elec. Connector Terminal	-
28	57M8738	1	Elec. Connector Accessory	-
28	57M8730	1	Elec. Connector Housing	X668F, Armrest Harness

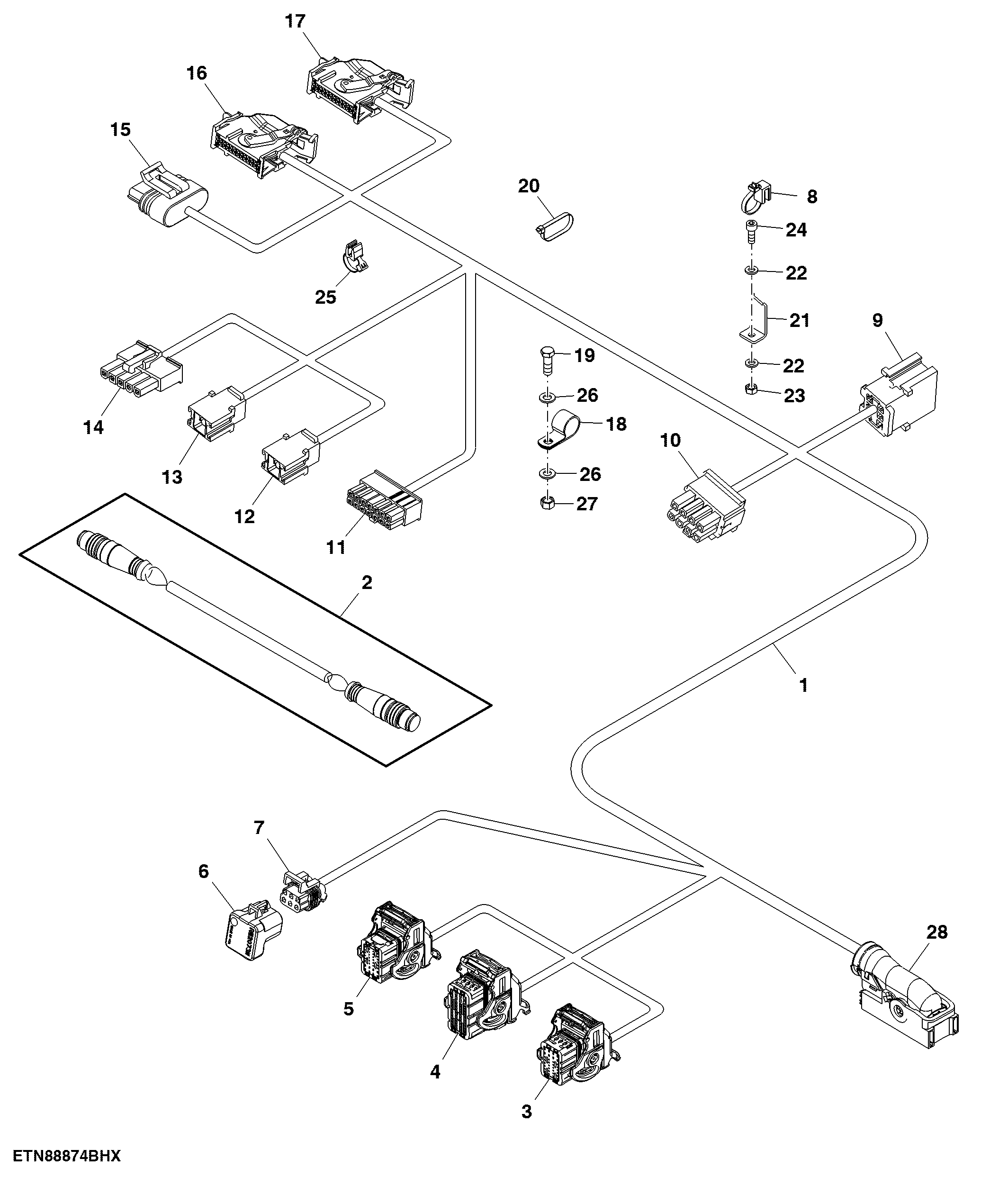

Armrest Wiring Harness W/ Ethernet, Single CAN Bus
