Открытый узел

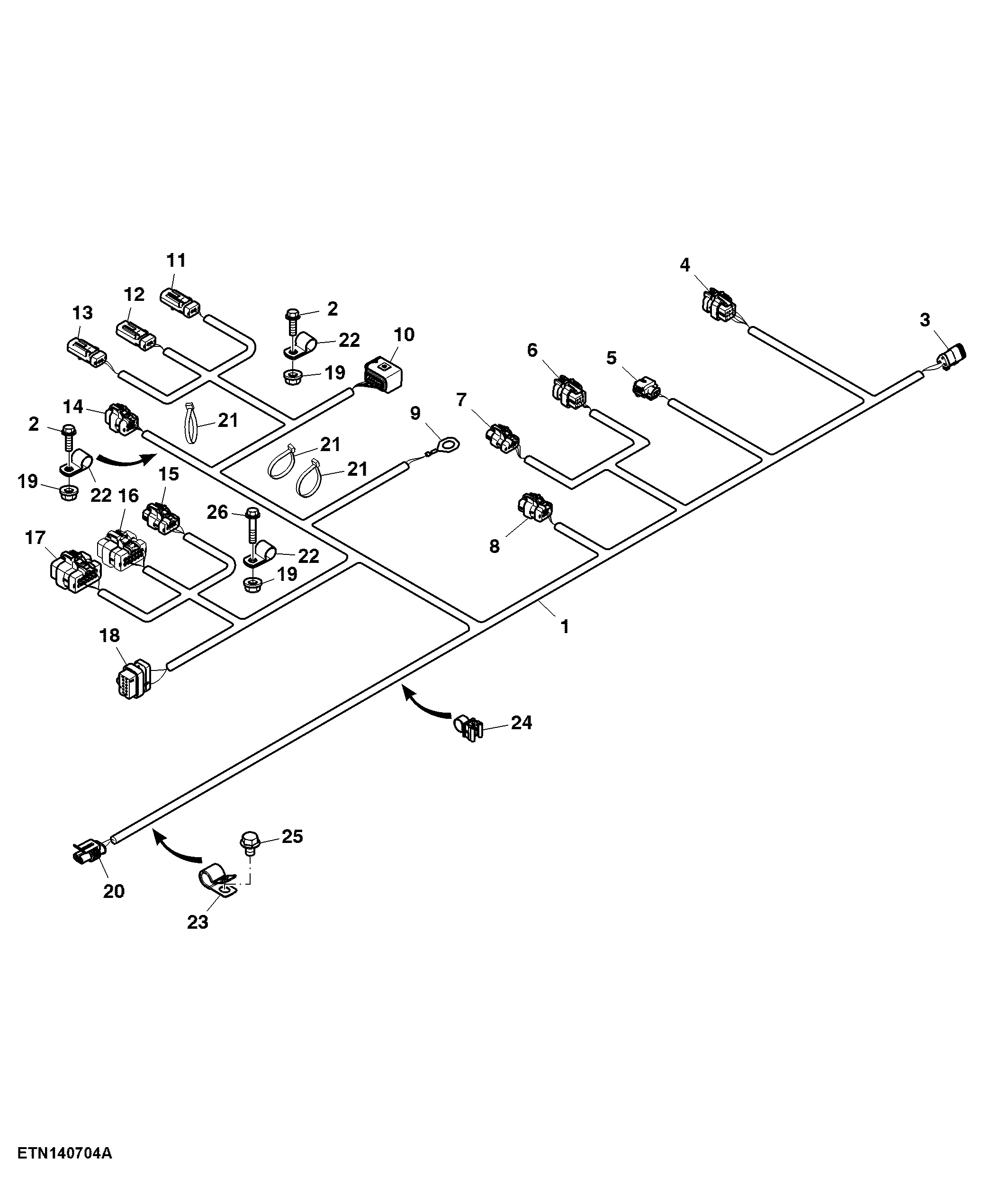

After Treatment Wiring Harness (420001 - 430000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH213028	1	Wiring Harness	-
2	19M7867	2	Screw	M8 X 25
3	57M8221	1	Elec.Connect Locking Device	-
3	57M8131	1	Electronic Terminator	-
3	57M8165	2	Elec. Connector Terminal	-
3	R78069	1	Elec. Connector Cavity Plug	-
3	57M8637	1	Elec. Connector Housing	XNOXTERM, CAN Passive Terminator
4	57M9787	1	Elec. Connector Housing	XNOXSCR, Nox SCR
4	57M10321	4	Elec. Connector Terminal	-
4	57M9814	2	Elec. Connector Cavity Plug	-
5	57M9828	1	Elec. Connector Housing	XDOSMOD, Dosing Module
5	57M9832	2	Elec. Connector Terminal	-
6	57M9814	1	Elec. Connector Cavity Plug	-
6	57M10321	5	Elec. Connector Terminal	-
6	57M9787	1	Elec. Connector Housing	XNOXDPF, Nox DPF
7	57M9734	1	Elec. Connector Housing	XDPS, Delta Pressure Sensor
7	57M10321	3	Elec. Connector Terminal	-
8	57M9817	1	Elec. Connector Housing	XATEMSEN, AT Temperature Sensor
8	57M10321	4	Elec. Connector Terminal	-
9	57M9536	1	Elec. Connector Terminal	XRT, Ring Terminal
10	57M10958	1	Elec. Connector Housing	XSPLMOD, Supply Module
10	57M11002	1	Elec. Connector Accessory	-
10	57M11248	10	Elec. Connector Terminal	-
11	57M9777	1	Elec. Connector Housing	XPLHRT, Pressure Line Heater
11	57M10322	2	Elec. Connector Terminal	-
12	57M10322	2	Elec. Connector Terminal	-
12	57M9776	1	Elec. Connector Housing	XSLHRT, Suction Line Heater
13	57M9778	1	Elec. Connector Housing	XRLHRT, Return Line Heater
13	57M10322	2	Elec. Connector Terminal	-
14	57M9788	1	Elec. Connector Housing	XDEFTANK, DEF Tank
14	57M10321	5	Elec. Connector Terminal	-
14	57M9814	1	Elec. Connector Cavity Plug	-
15	57M9783	1	Elec. Connector Housing	XCLINTCON, XCL Intcon
15	57M10321	3	Elec. Connector Terminal	-
16	57M9802	1	Elec. Connector Housing	XDEFINTCON, DEF Intcon
16	57M10321	11	Elec. Connector Terminal	-
16	57M9814	1	Elec. Connector Cavity Plug	-
17	57M9814	2	Elec. Connector Cavity Plug	-
17	57M10321	9	Elec. Connector Terminal	-
17	57M9801	1	Elec. Connector Housing	XSCRINTCON, SCR Intcon
18	57M9800	1	Elec. Connector Housing	XAFTMINTCON, AFTM Intcon
18	57M10321	11	Elec. Connector Terminal	-
18	57M9814	1	Elec. Connector Cavity Plug	-
19	14M7298	3	Flange Nut	M8
20	57M10497	1	Elec. Connector Housing	XCL_LOSS, Coolant Loss
20	57M8564	2	Elec. Connector Terminal	-
21	H224073	3	Tie Band	-
22	AH77924	3	Clip	-
23	H75541	1	Clamp	-
24	AH225363	1	Clip	-
25	19M7864	1	Screw	M8 X 12
26	19M7897	1	Screw	M8 X 35

After Treatment Wiring Harness (420001 - 430000)

Нет текстового описания
