Открытый узел

Valve Block Wiring Harness

Valve Block Wiring Harness

Valve Block Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

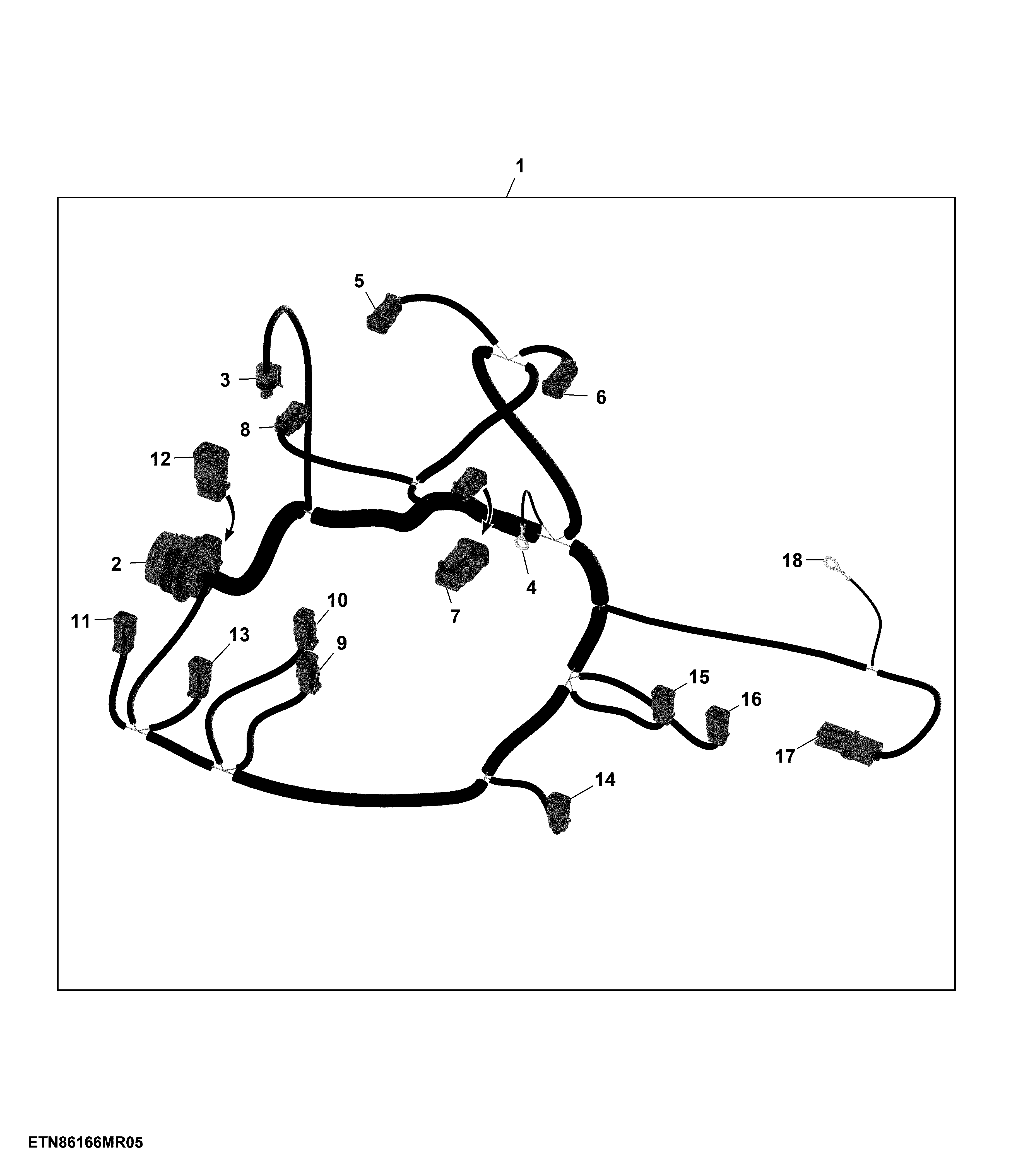

Valve Block Wiring Harness

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH210925	1	Wiring Harness	-
2	57M7750	1	Elec. Connector Housing	Valve Block X297
2	R78069	2	Elec. Connector Cavity Plug	Cavity M, X
2	57M8035	1	Nut	-
2	N282069	21	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K, L, N, M, N, O, P, Q, R, S, T, U, V, W
3	57M7796	1	Elec. Connector Housing	Header Lift Cylinder Pressure Sensor X305
3	R104701	3	Elec. Connector Terminal	Cavity A, B, C
4	57M8872	1	Elec. Connector Terminal	Hydro Filter Restrict Switch 2 X382
5	57M8021	1	Electrical Connector Assy	Reel Fore Valve X250
5	N282069	2	Elec. Connector Terminal	Cavity 1, 2
6	N282069	2	Elec. Connector Terminal	Cavity 1, 2
6	57M8021	1	Electrical Connector Assy	Tilt Extend Valve XTEV
7	57M8021	1	Electrical Connector Assy	Tilt Retract Valve XTRV
7	N282069	2	Elec. Connector Terminal	Cavity 1, 2
8	57M8021	1	Electrical Connector Assy	Reel Aft Valve X251
8	N282069	2	Elec. Connector Terminal	Cavity 1, 2
9	57M8872	1	Elec. Connector Terminal	Hydro Filter Restrict Switch 1 X380
10	R78061	1	Elec. Connector Terminal	Cavity B
10	57M7251	1	Elec. Connector Terminal	Cavity A
10	57M9219	1	Elec. Connector Seal	Cavity B
10	R78053	1	Electrical Connector Assy	Hydro Charge Pressure Switch X242
10	57M7292	1	Elec. Connector Seal	Cavity A
11	57M8021	1	Electrical Connector Assy	Ground Speed Shift Solenoid X386
11	N282069	2	Elec. Connector Terminal	Cavity 1, 2
12	57M8021	1	Electrical Connector Assy	Brake Release Solenoid X379
12	N282069	2	Elec. Connector Terminal	Cavity 1, 2
13	57M8021	1	Electrical Connector Assy	Open Center X255
13	N282069	2	Elec. Connector Terminal	Cavity 1, 2
14	N282069	2	Elec. Connector Terminal	Cavity 1, 2
14	57M8021	1	Electrical Connector Assy	Accumulator Valve X306
15	57M8021	1	Electrical Connector Assy	Reel / Float Lower Valve X253
15	N282069	2	Elec. Connector Terminal	Cavity 1, 2
16	57M8021	1	Electrical Connector Assy	Reel Reverse Valve X282
16	N282069	2	Elec. Connector Terminal	Cavity 1, 2
17	57M8021	1	Electrical Connector Assy	Combination 1 Reel Speed 2 Valve X396
17	N282069	2	Elec. Connector Terminal	Cavity 1, 2
18	57M8021	1	Electrical Connector Assy	Reel/Float Raise Valve X252
18	N282069	2	Elec. Connector Terminal	Cavity 1, 2
