Открытый узел

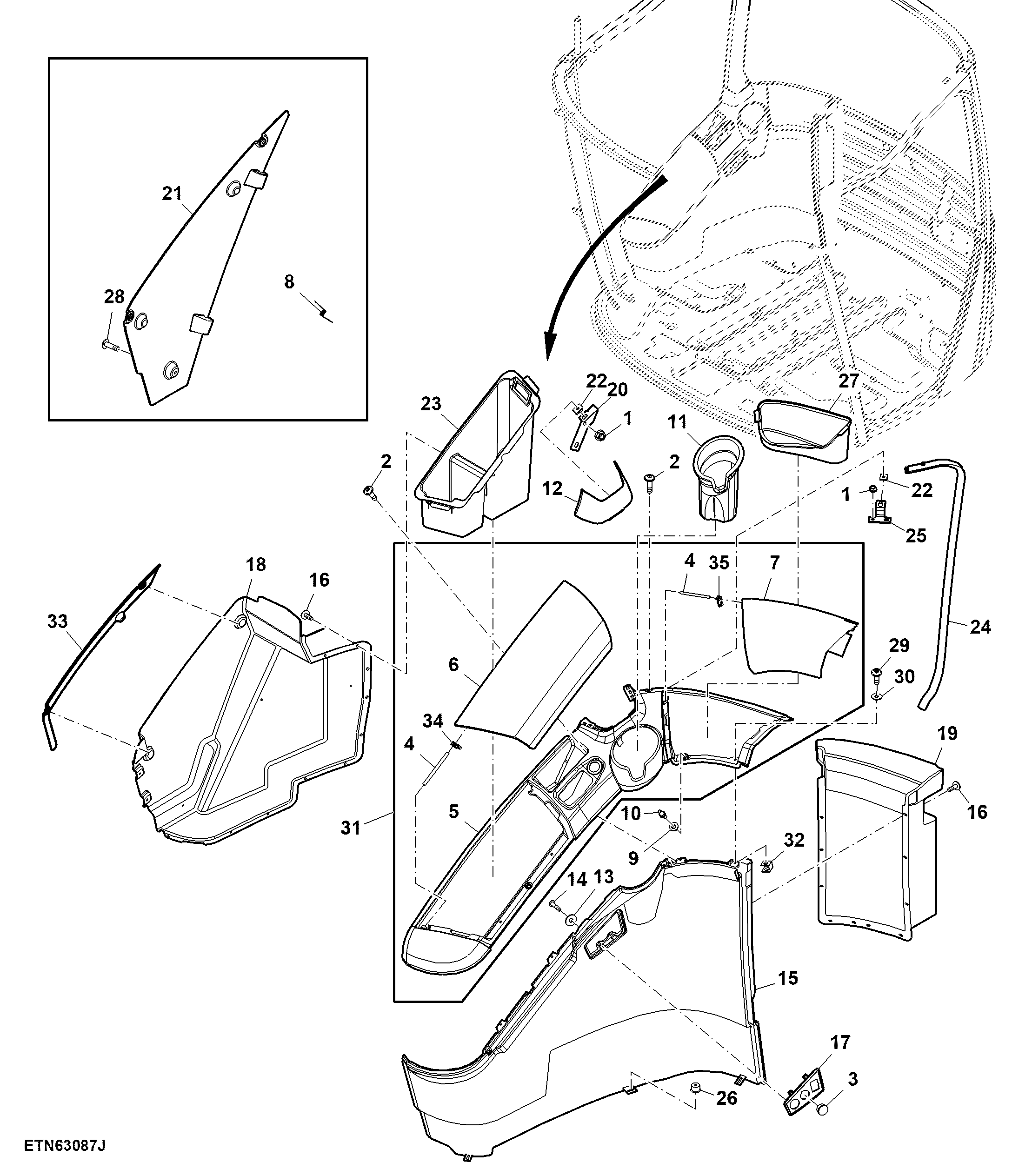

Lower Premium Upholstery Storage, RH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	19M8649	4	Screw	M6 X 20
3	L207373	1	Plug	-
4	L167511	4	Pin Fastener	-
5	L201853	1	Control Console	-
6	L201856	1	Cover	-
7	L201857	1	Cover	-
8	L204889	3	Spring	USE WITH AL206337
9	L204900	2	Grommet	-
10	L205114	2	Grommet	-
11	L202665	1	Holder	-
12	L204254	1	Storage Compartment	-
13	24M7453	2	Washer	5.500 X 15 X 1 mm
14	37M7349	2	Screw	-
15	AL202371	1	Acoustical Upholstery	-
16	L102588	22	Screw	-
17	L204249	1	Control Console	-
18	L205065	1	Storage Compartment	-
19	L205389	1	Storage Compartment	-
20	L202738	1	Bracket	-
21	L202575	1	Acoustical Upholstery	-
22	L102357	4	Nut	-
23	L211544	1	Storage Compartment	-
24	L211875	2	Weatherstrip	-
25	HXE105703	1	Bracket	SUB FOR APPL L204649
26	L205661	3	Nut	-
27	L204773	1	Storage Compartment	-
28	37M7382	1	Screw	-
29	L203411	4	Screw	-
30	L173700	4	Washer	-
31	AL206337	1	Acoustical Upholstery	ORDER AXE42359
31	AXE42359	1	Acoustical Upholstery	-
32	L173201	4	Push Nut	-
33	HXE88424	1	Panel	-
34	HXE72405	1	Stop	-
35	HXE72406	1	Stop	-
..	AL201953	1	Acoustical Upholstery	NOT ILLUSTRATED, (INCLUDE KEYS 11, 12 AND 31)
..	AL204479	1	Acoustical Upholstery	NOT ILLUSTRATED, (INCLUDE KEYS 13, 14, 15, 16, 17, 18, 19 AND 32)

Lower Premium Upholstery Storage, RH

Нет текстового описания
