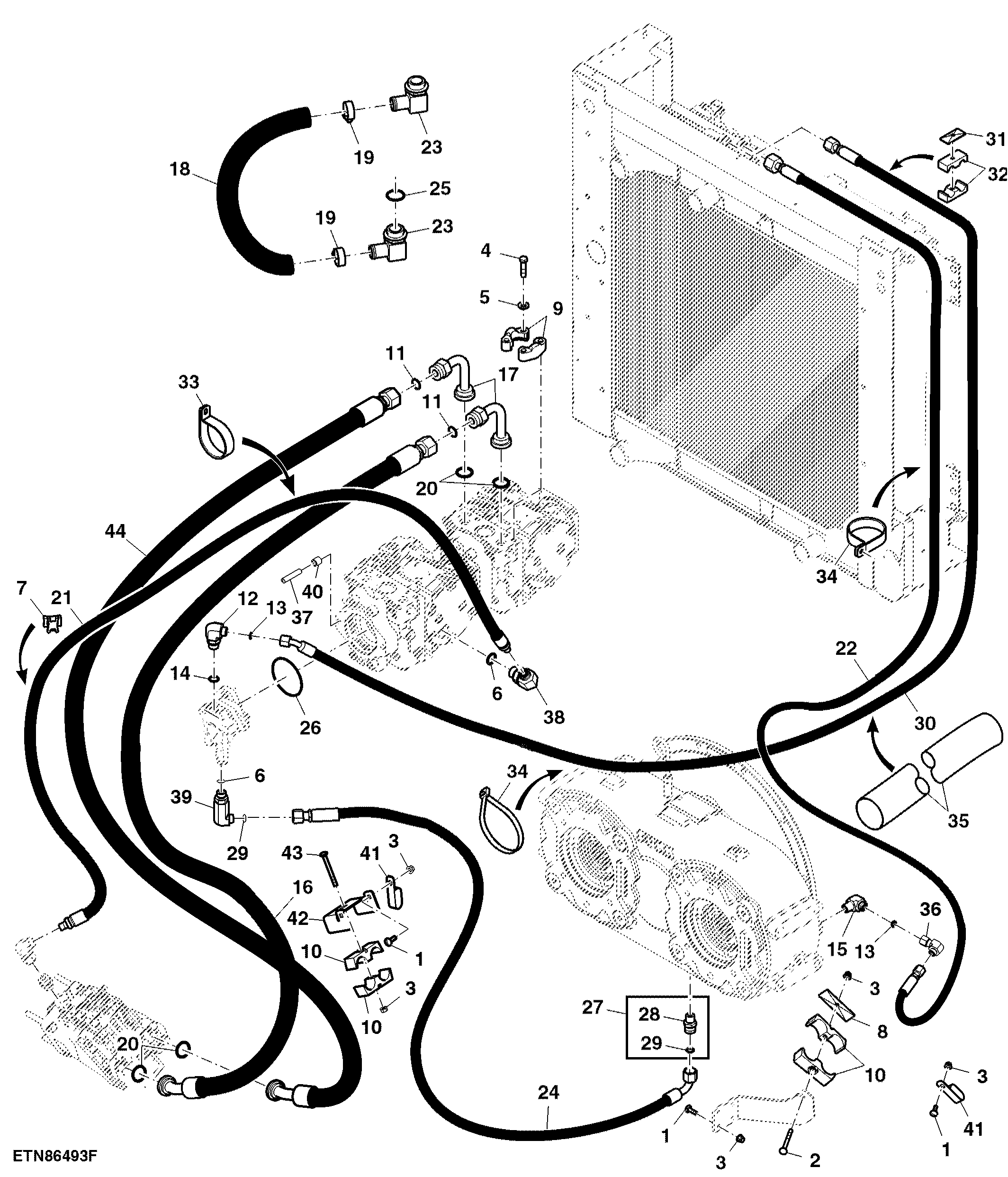

Hydraulic Lines, Ground Drive ( - 420000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7185	5	Bolt	M8 X 25
2	03M7295	1	Bolt	M8 X 90
3	14M7573	7	Flange Nut	M8
4	19H2563	8	Cap Screw	7/16" X 1-3/4"
5	24M7240	8	Washer	13 X 25 X 3 mm
6	U12547	2	O-Ring	-
7	AN209168	3	Swivel	-
8	H114901	2	Plate	-
9	H122182	8	Flange Fitting	-
10	H150222	4	Hose Clamp	-
11	T76938	2	O-Ring	-
12	38H1012	1	Elbow Fitting	-
13	T77857	2	O-Ring	-
14	R26906	1	O-Ring	-
15	38H1627	1	Adapter Fitting	ALSO ORDER 61H1627
16	AFH207535	1	Hydraulic Hose	(RH Side Front) LGTH = 2334 mm
17	T143372	2	Adapter Fitting	-
18	AFH207448	1	Hydraulic Hose	(Auxilary Suction) LGTH = 909 mm
19	RE56097	2	Clamp	-
20	T78313	4	O-Ring	-
21	AFH207480	1	Hydraulic Hose	(Case Drain, Wheel Motor) LGTH = 2722 mm
22	AFH207459	1	Hydraulic Hose	(GearBox Cooler Return) LGTH = 4160 mm
23	AT69845	1	Elbow Fitting	-
24	AFH207541	1	Hydraulic Hose	(GearBox Suction) LGTH = 1032 mm
25	U13639	1	O-Ring	-
26	T155995	1	O-Ring	-
27	RE199046	1	Hose Fitting	-
28	R132900	1	Adapter Fitting	-
29	T77932	1	O-Ring	-
30	AFH207457	1	Hydraulic Hose	(Cooling Pump Pressure) LGTH = 4894 mm
31	H112567	2	Plate	-
32	H150983	4	Clamp	-
33	T161031	1	Clamp	-
34	H224073	12	Tie Band	-
35	FH321430	1	Hose Guard	-
36	38H1095	1	Elbow Fitting	-
37	FH321427	3	Stud	-
38	62H1078	1	Adapter Fitting	-
39	38H1499	1	Elbow Fitting	-
40	N162192	1	Sleeve	-
41	R50454	2	Clamp	-
42	FH310102	1	Hose Clamp	-
43	03M7267	1	Bolt	M8 X 80
44	AFH207534	1	Hydraulic Hose	(Ground Drive) 36.5252" X 2271 mm (89-1/2") X 1", LGTH = 2271 mm
