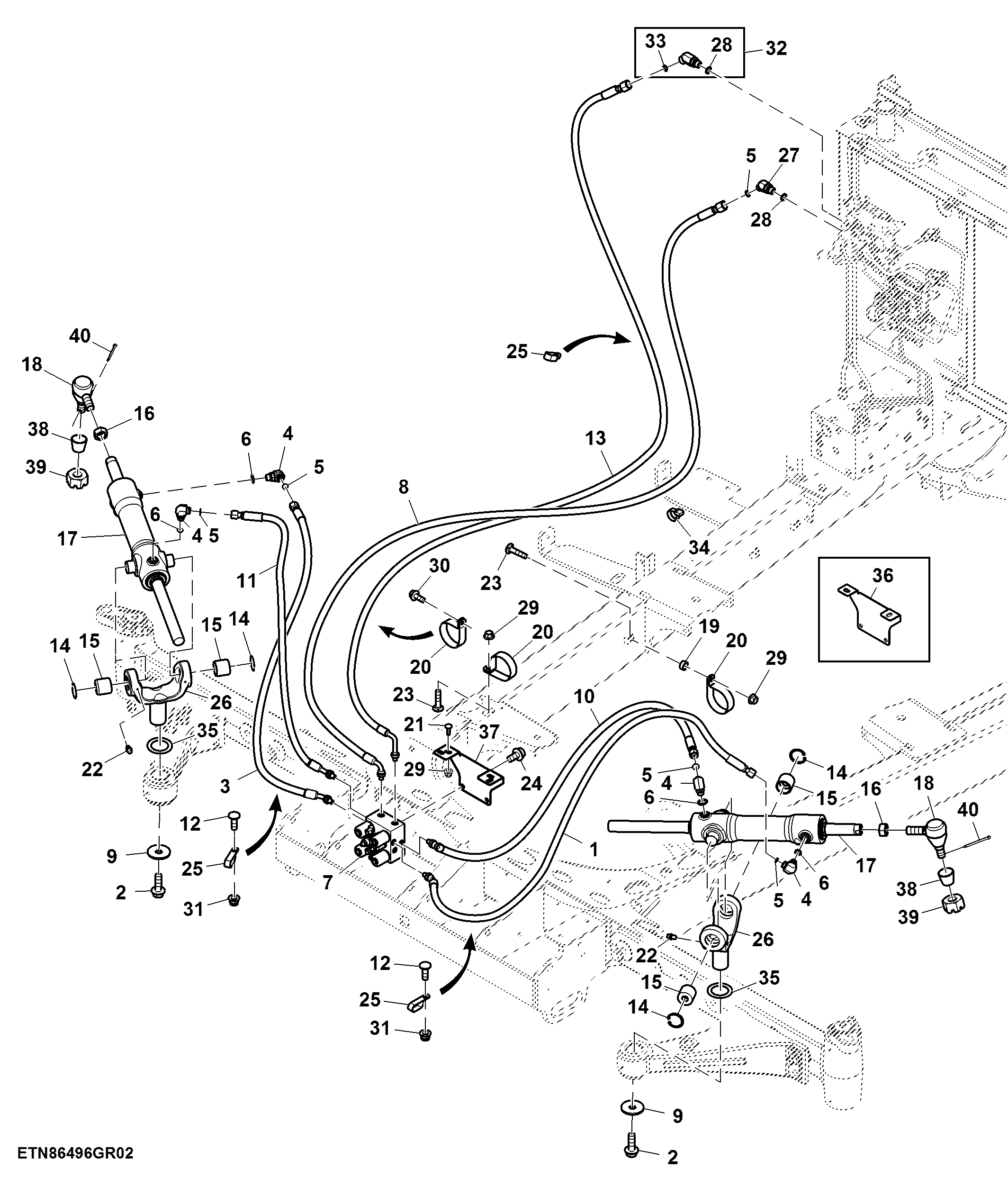

Hydraulic Cylinder and Hoses, Rear Steering ( - 420000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH207465	1	Hydraulic Hose	(Right Cylinder, Outboard) LGTH = 1655 mm
2	19M7851	2	Screw	M20 X 60
3	AFH207468	1	Hydraulic Hose	(Left Cylinder, Outboard) LGTH = 1101 mm
4	38H1005	4	Elbow Fitting	-
5	T77857	5	O-Ring	-
6	R26375	4	O-Ring	-
7	AFH202873	1	Hydraulic Pressure Valve	Rear Assist Steering Valve G4
8	AFH207523	1	Hydraulic Hose	(Rear Steer B) LGTH = 3833.876 mm
9	24M7486	2	Washer	22 X 72 X 6 mm
10	AFH207466	1	Hydraulic Hose	(Right Cylinder, Inboard) LGTH = 1300 mm
11	AFH207467	1	Hydraulic Hose	(Left Cylinder, Inboard) LGTH = 867 mm
12	03M7185	5	Bolt	M8 X 25
13	AFH207471	1	Hydraulic Hose	(Rear Steer A) LGTH = 3907 mm
14	40M7227	4	Snap Ring	-
15	FH308232	4	Bushing	-
16	R110279	2	Lock Nut	-
17	AHC10076	2	Hydraulic Cylinder	ORDER AHC17786
17	AHC17786	2	Hydraulic Cylinder	-
17	AH212087	2	Hydraulic Cylinder Kit	Bore Seal Kit USE WITH AHC10076
17	AHC18638	2	Hydraulic Cylinder Kit	Rod Seal Kit USE WITH AHC10076
17	AH166140	2	Hydraulic Cylinder Kit	Seal Kit ORDER AH212088; USE WITH AHC10076
18	AFH203909	2	Ball Joint	-
19	N282644	2	Washer	-
20	T161031	4	Clamp	-
21	03M7192	4	Bolt	M10 X 30
22	JD7844	4	Lubrication Fitting	-
23	03M7195	4	Bolt	M10 X 45
24	19H3781	2	Screw	3/8" X 3/4"
25	R50454	6	Clamp	-
26	FH310737	2	Yoke	-
27	38H5252	1	Adapter Fitting	-
28	51M7045	2	O-Ring	19.300 X 2.200 mm
29	14M7518	9	Flange Nut	M10
30	19M7785	1	Screw	M10 X 25
31	14M7573	6	Flange Nut	M8
32	RE167154	1	Elbow Fitting	-
33	T77932	1	O-Ring	-
34	H224073	1	Tie Band	-
35	T161036	2	Washer	-
36	FH317636	1	Support	ORDER FH326322
37	FH326322	1	Support	-
38	R78027	2	Cover	-
39	14H875	2	Nut	7/8"
40	11M7023	2	Cotter Pin	4 X 32 mm

Hydraulic Cylinder and Hoses, Rear Steering ( - 420000)
