Chassis Wiring Harness (2 of 4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7491	4	Elec. Connector Terminal	Cavity A, B, C, E
1	57M7297	3	Elec. Connector Terminal	Cavity D, F, G
1	57M7299	1	Elec. Connector Terminal	Cavity H
1	57M9218	4	Elec. Connector Seal	Cavity A, B, D, E
1	57M7292	2	Elec. Connector Seal	Cavity F, G
1	57M9216	1	Elec. Connector Seal	Cavity C
1	57M9217	1	Elec. Connector Seal	Cavity H
1	57M8986	1	Elec. Connector Housing	OPM-J3 X366
2	57M8983	1	Elec. Connector Housing	OPM-J2 X365
2	57M9217	6	Elec. Connector Seal	Cavity A, B, C, D, E, H
2	57M7299	6	Elec. Connector Terminal	Cavity A, B, C, D, E, H
2	R78064	2	Elec. Connector Cavity Plug	Cavity F, G
3	57M7491	3	Elec. Connector Terminal	Cavity B, C, D
3	57M7297	1	Elec. Connector Terminal	Cavity H
3	57M8294	2	Elec. Connector Terminal	Cavity F, G
3	57M7299	1	Elec. Connector Terminal	Cavity E
3	R78064	1	Elec. Connector Cavity Plug	Cavity A
3	57M8985	1	Elec. Connector Housing	OPM-J1 X364
3	57M9218	4	Elec. Connector Seal	Cavity A, B, C, H
3	57M9217	1	Elec. Connector Seal	Cavity E
3	57M7292	2	Elec. Connector Seal	Cavity F, G
4	57M8868	1	Elec. Connector Terminal	Starter Relay Power X742
5	57M8869	1	Elec. Connector Terminal	John Deere X743
6	57M8873	1	Elec. Connector Terminal	Starter Relay Coil X738
7	AFH205614	1	Fuse Box	Fuse Center 1 XFC1
7	R78062	8	Elec. Connector Seal	Cavity A1, A2, A3, A4, A5, C3, C4, C5
7	57M9218	1	Elec. Connector Seal	Cavity A6
7	57M9216	3	Elec. Connector Seal	Cavity C2, C6, C10
7	57M9198	8	Elec. Connector Terminal	Cavity A1, A2, A3, A4, A5, C3, C4, C5
7	57M7903	4	Elec. Connector Housing	Cavity A6, C2, C6, C10
7	R78064	8	Elec. Connector Cavity Plug	Cavity A7, A8, A9, A10, C1, C7, C8, C9
8	57M8869	1	Elec. Connector Terminal	Battery X420
9	57M7903	17	Elec. Connector Housing	Cavity A1, A2, A3, A4, A5, A6, A7, A8, A9, A10, C1, C2, C3, C4, C6, C7, C9
9	R78064	2	Elec. Connector Cavity Plug	Cavity C5, C10
9	57M8892	2	Elec. Connector Terminal	Cavity C8
9	57M9218	8	Elec. Connector Seal	Cavity A3, A6, A8, A9, C2, C4, C6, C7
9	57M9216	9	Elec. Connector Seal	Cavity A1, A2, A4, A5, A7, A10, C1, C3, C9
9	AFH205614	1	Fuse Box	Fuse Center 2 XFC2
9	57M9909	1	Elec. Connector Cable Seal	Cavity C8
10	57M8868	1	Elec. Connector Terminal	Fuel Post Power Line XFPPL
11	57M7344	1	Elec. Connector Housing	Right Upper Front Opposite Light X123
11	57M9218	2	Elec. Connector Seal	Cavity A, B
11	57M7491	2	Elec. Connector Terminal	Cavity A, B
12	57M7344	1	Elec. Connector Housing	Right Upper Rear Opposite Light X121
12	57M9218	2	Elec. Connector Seal	Cavity A, B
12	57M7491	2	Elec. Connector Terminal	Cavity A, B
13	57M7632	1	Electrical Connector Assy	Main Traction 1 X568
13	R78069	4	Elec. Connector Cavity Plug	Cavity 5, 6, 7, 8
13	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
14	57M9070	1	Elec. Connector Housing	Main Traction 5 X566
14	57M8569	10	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K
14	R78069	6	Elec. Connector Cavity Plug	Cavity L, M, N, P, R, S
15	57M9373	1	Elec. Connector Housing	Main Traction 4 X567
15	57M8165	5	Elec. Connector Terminal	Cavity 1, 2, 5, 6, 7
15	R78069	7	Elec. Connector Cavity Plug	Cavity 3, 4, 8, 9, 10, 11, 12
16	57M9656	1	Elec. Connector Terminal	Main Traction 2 X569
16	R78069	1	Elec. Connector Cavity Plug	Cavity F
16	57M8569	7	Elec. Connector Terminal	Cavity A, B, C, D, E, G, H,
17	57M8008	1	Electrical Connector Assy	Main Traction 3 X570
17	57M7546	6	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 7, 12
17	R78069	6	Elec. Connector Cavity Plug	Cavity 2, 6, 8, 9, 10, 11
18	57M8869	1	Elec. Connector Terminal	Starter Relay Ground X761
19	AFH203668	9	Tie Band	-
20	E12373	1	Clip	-
21	19M7640	8	Cap Screw	M5 X 12
22	14M7303	4	Flange Nut	M6
23	AH130222	1	Clamp	-
24	24M7087	8	Washer	5.500 X 10 X 1 mm
25	57M10609	1	Elec. Connector Housing	OOC-J1 X358
26	57M10615	1	Elec. Connector Housing	OOC-J2 X359
27	57M10607	1	Elec. Connector Housing	OOC-J3 X360
28	57M10604	2	Elec. Connector Housing	-
29	57M10613	1	Elec. Connector Housing	-
30	AH89557	1	Clip	-
31	57M11287	1	Elec. Connector Accessory	-
32	AFH211774	1	Wiring Harness	-

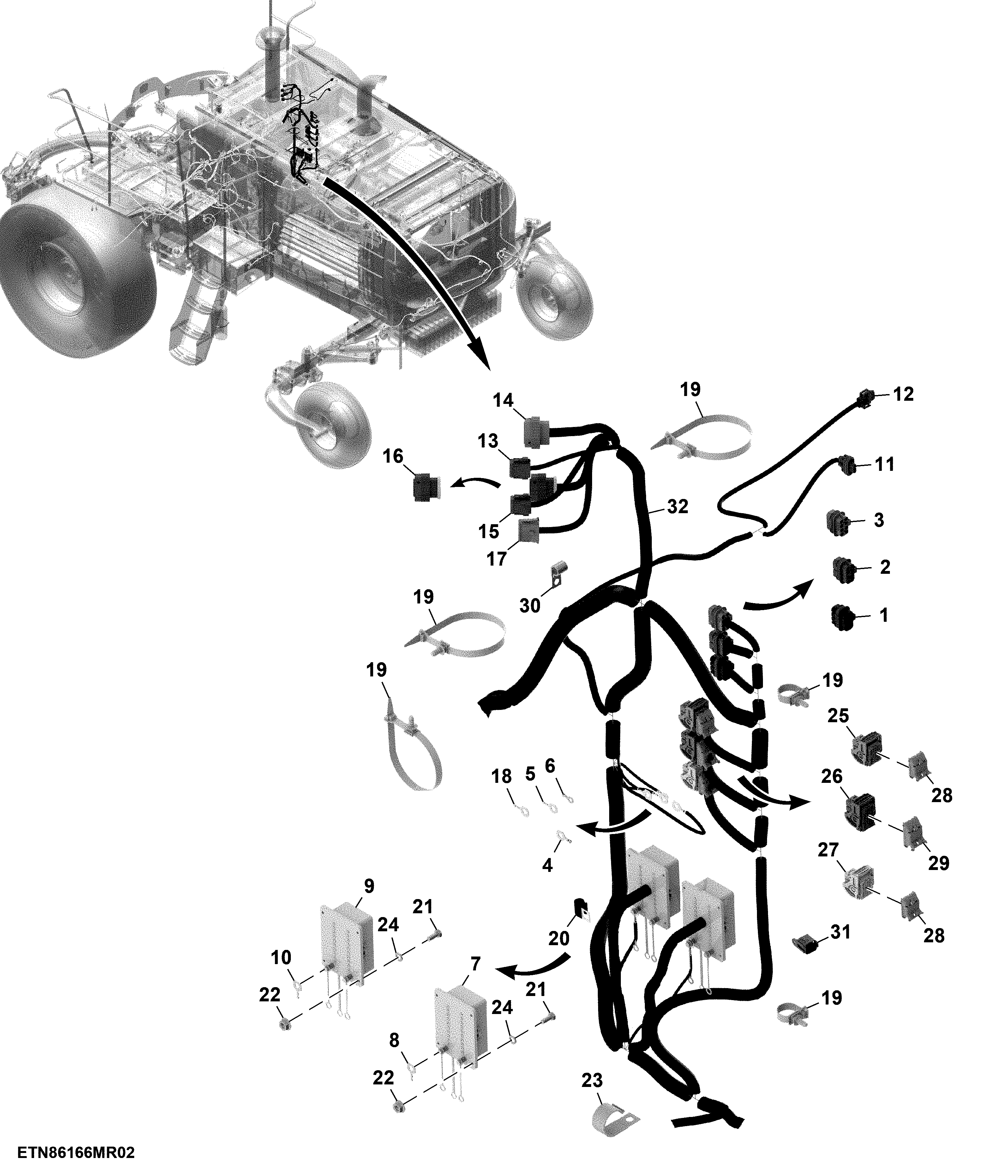

Chassis Wiring Harness (2 of 4)
