Открытый узел

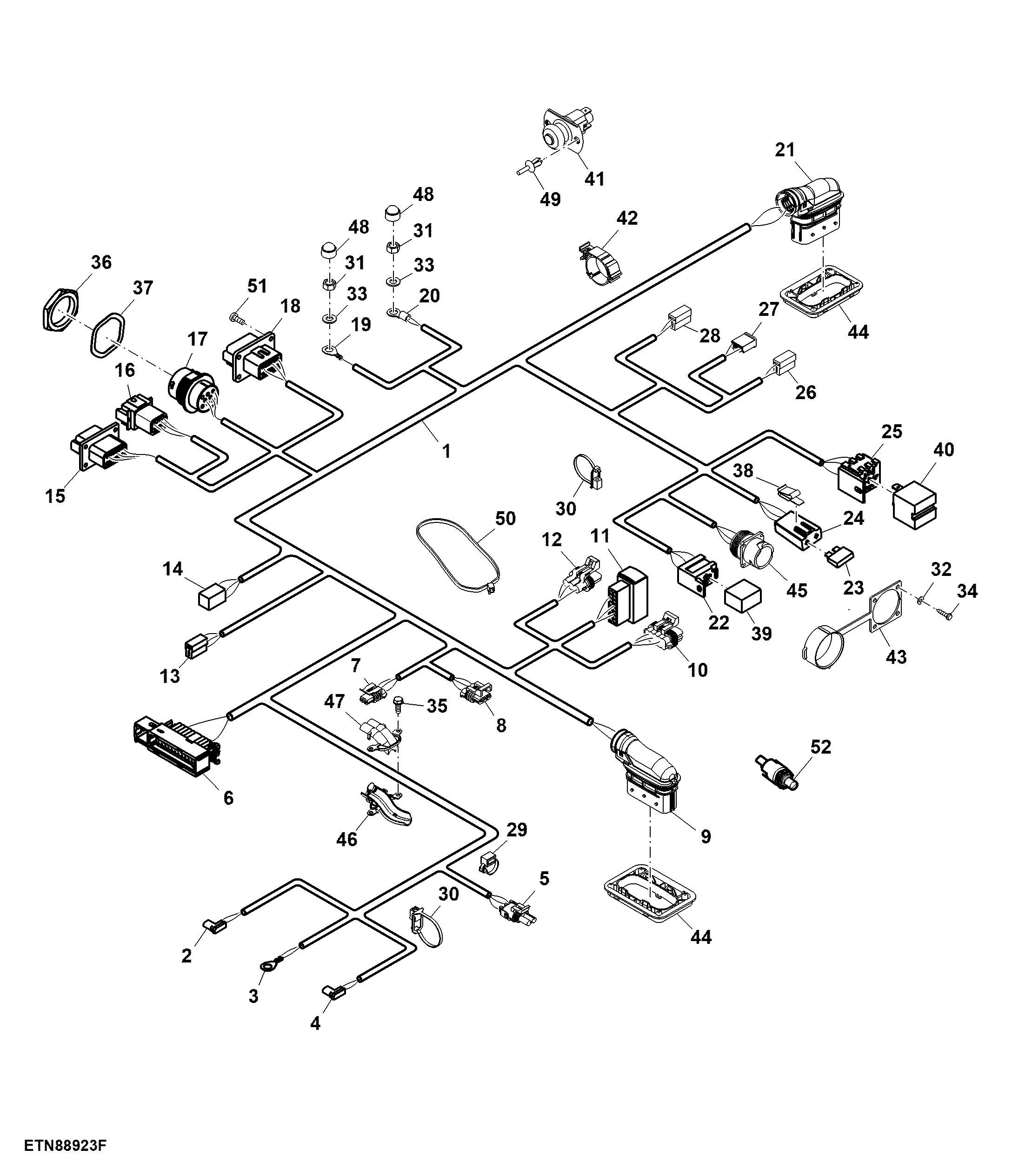

Cab Wiring Harness (2 of 2)

Cab Wiring Harness (2 of 2)

Cab Wiring Harness (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Cab Wiring Harness (2 of 2)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
21	57M8738	1	Elec. Connector Accessory	-
21	57M8731	1	Elec. Connector Housing	X571M, Cab Main/Cab Roof Harness
21	57M7401	1	Elec. Connector Cavity Plug	-
21	57M7400	1	Elec. Connector Seal	-
21	57M9042	1	Elec. Connector Terminal	-
21	57M7399	4	Elec. Connector Seal	-
21	57M8241	16	Elec. Connector Terminal	-
21	57M7402	17	Elec. Connector Cable Seal	-
21	57M10371	4	Elec. Connector Terminal	-
21	57M9041	18	Elec. Connector Terminal	-
21	57M10556	15	Elec. Connector Terminal	-
21	57M7403	23	Elec. Connector Cavity Plug	-
22	Z61311	1	Elec. Connector Housing	X559F, Diode Module
22	57M7103	2	Elec. Connector Terminal	-
22	57M7185	1	Elec. Connector Terminal	-
23	57M7125	1	Fuse	5A
24	57M8829	1	Elec. Connector Accessory	X631F, Diode Module Fuse (5A)
24	57M7507	1	Elec. Connector Terminal	-
24	57M7508	1	Elec. Connector Terminal	-
25	ET15766	1	Elec. Connector Housing	X8603F, Warning Horn
25	57M7514	2	Elec. Connector Terminal	-
26	57M7065	1	Elec. Connector Housing	X639F, Auxiliary Power Outlet 2 (Armrest)
26	57M7431	2	Elec. Connector Terminal	-
27	57M10439	1	Elec. Connector Housing	X8903F, Stereo Aux and USB Assembly
27	57M10443	5	Elec. Connector Terminal	-
28	57M7431	2	Elec. Connector Terminal	-
28	57M7065	1	Elec. Connector Housing	X638F, Auxiliary Power Outlet 1 (Armrest)
29	L171035	1	Tie Band	-
30	L171122	17	Tie Band	-
31	14M7273	2	Nut	M8
32	24M7029	4	Shim	TK = 0.5 mm
33	24M7055	2	Washer	8.400 X 16 X 1.600 mm
34	37M7095	4	Screw	-
35	37M7361	2	Screw	M6 X 16
36	57M8428	1	Electrical Connector Assy	-
37	57M9062	1	Elec.Connect Locking Device	-
38	57M9413	1	Clip	-
39	AL152098	1	Diode Holder	-
40	AL159759	1	Audible Warning Alarm	-
41	AL172328	1	Switch	-
42	L209624	4	Clamp	-
43	L156796	1	Plug	-
44	L170145	2	Holder	-
45	57M7919	1	Elec. Connector Housing	X617M, CAN Bus Diagnostic Connector
45	Z78008	5	Elec. Connector Seal	-
45	57M8164	4	Elec. Connector Terminal	-
46	L207678	1	Channel	-
47	L207680	1	Channel	-
48	L32394	2	Cap	-
49	L39134	4	Rivet	-
50	L41858	1	Tie Band	-
51	M93511	8	Screw	-
52	RE293155	1	Push Switch	-
