Открытый узел

Big Display Arm Mounting Parts, W/ Ethernet

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

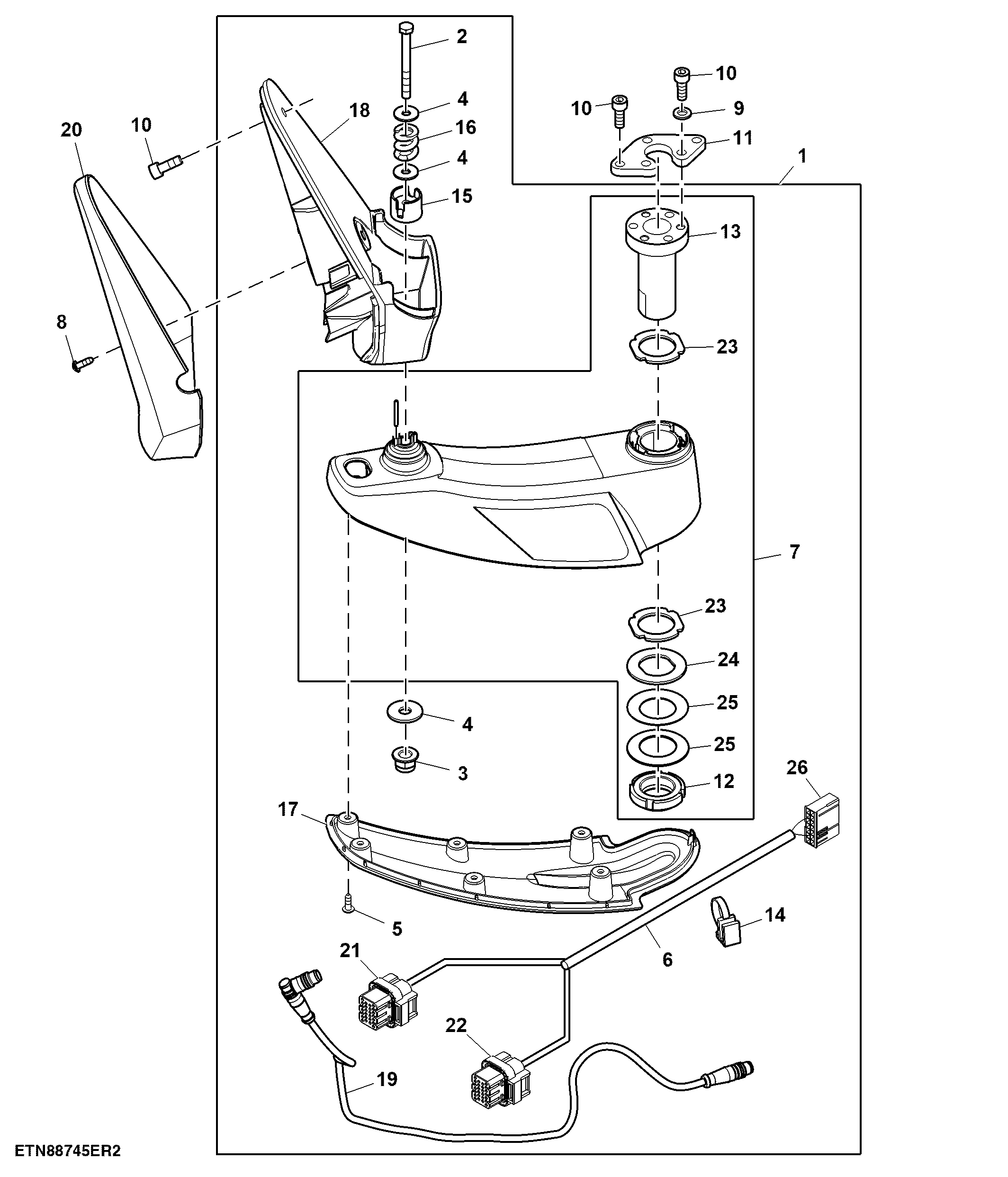

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE59606	1	Arm	-
1	AXE39709	1	Arm	ORDER AXE59606
2	57M10755	1	Elec. Connector Terminal	-
2	19M7325	1	Cap Screw	M8 X 80
3	14M7396	1	Lock Nut	M8
4	24M7207	3	Washer	8.400 X 24 X 2 mm
5	37M7348	6	Screw	-
6	AL214424	1	Wiring Harness	USE WITH AXE39709
6	AXE59512	1	Wiring Harness	USE WITH AXE59606
7	AL210730	1	Arm	-
8	37M7444	2	Screw	-
9	24M7054	3	Washer	6.400 X 12 X 1.600 mm
10	19M7768	7	Screw	M6 X 16
11	L204644	1	Plate	-
12	CE30210	1	Nut	-
13	L204643	1	Bushing	-
14	L171035	3	Tie Band	-
15	L210152	1	Bushing	-
16	L210153	1	Compression Spring	-
17	L204763	1	Cover	-
18	L207712	1	Support	-
19	AL211479	1	Wiring Harness	-
20	L210522	1	Cover	-
21	57M8748	1	Elec. Connector Housing	USE WITH AL214424
21	57M8606	1	Elec. Connector Housing	X514F-1; USE WITH AXE59512
21	57M9044	4	Elec. Connector Terminal	USE WITH AL214424
21	57M10755	2	Elec. Connector Terminal	USE WITH AL214424
21	57M10755	3	Elec. Connector Terminal	Cavity 1, 8, 10 ; USE WITH AXE59512
21	57M9044	4	Elec. Connector Terminal	Cavity 3, 14, 18, 19 ; USE WITHAXE59512
21	57M9043	19	Elec. Connector Accessory	Cavity 2, 4, 5, 6, 7, 9, 11, 12, 13, 15, 16, 17, 20, 21, 22, 23, 24, 25, 26
22	57M10755	6	Elec. Connector Terminal	USE WITH AXE59512
22	57M9043	21	Elec. Connector Accessory	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 23, 24, 25, 26 ; USE WITH AXE59512
22	57M10755	6	Elec. Connector Terminal	USE WITH AL214424
22	57M11233	1	Elec. Connector Housing	X514F-2 ; USE WITH AXE59512
23	L205903	2	Washer	-
24	L205904	1	Washer	-
25	L207846	2	Spring Washer	-
26	57M10441	1	Elec. Connector Housing	-
26	57M10450	4	Elec. Connector Terminal	-
26	Z77553	2	Elec. Connector Terminal	-
26	57M10559	6	Elec. Connector Terminal	-
26	57M7548	1	Elec. Connector Terminal	-
