After Treatment Wiring Harness ( - 400000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

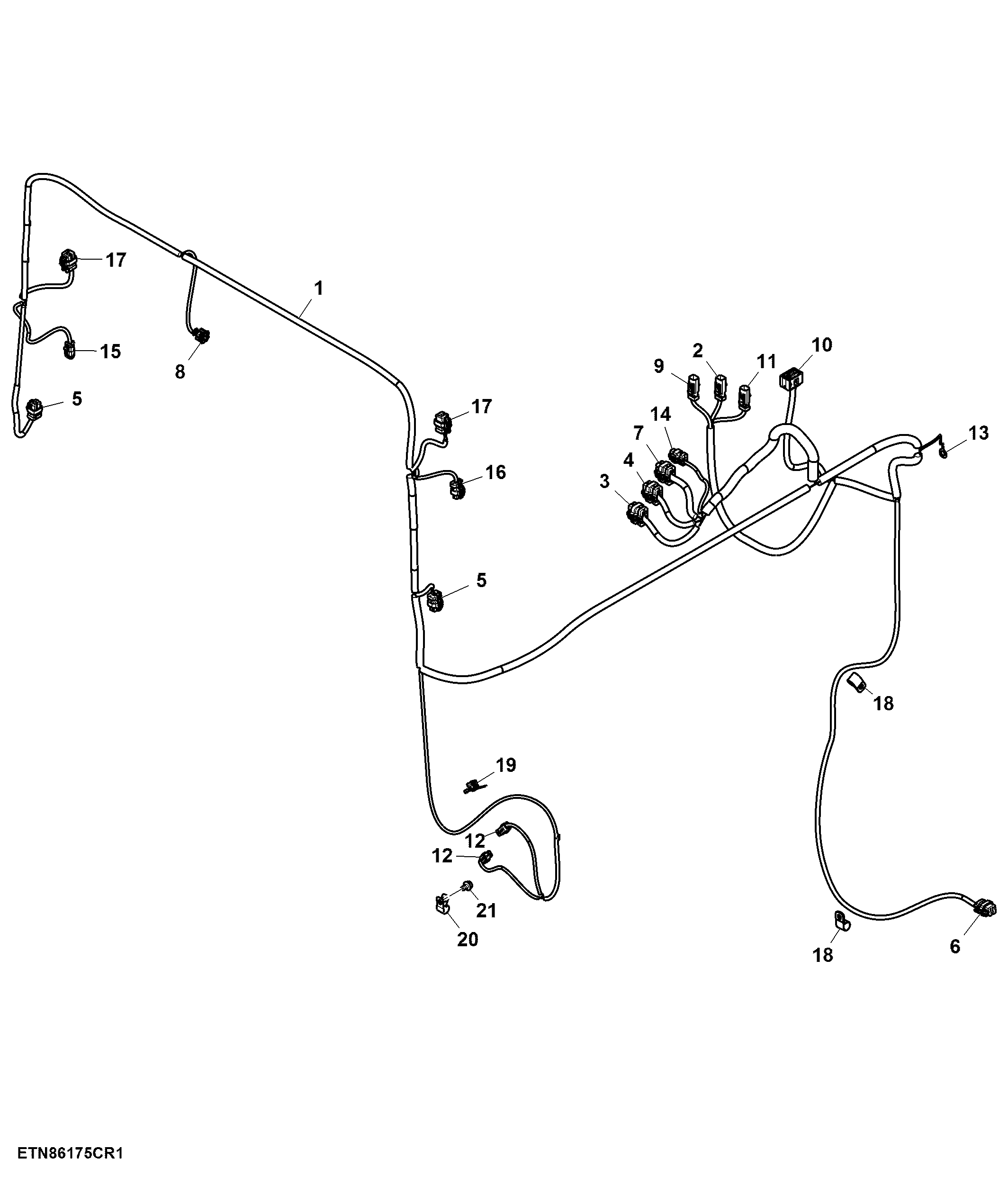

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH210903	1	Wiring Harness	-
2	57M9776	1	Elec. Connector Housing	Suction Line Heater
3	57M9800	1	Elec. Connector Housing	-
4	57M9801	1	Elec. Connector Housing	SCR Intcon
5	57M9817	2	Elec. Connector Housing	SCR Temp Sensor
6	57M9788	1	Elec. Connector Housing	Def Tank
7	57M9802	1	Elec. Connector Housing	-
8	57M9828	1	Elec. Connector Housing	Dosing Module
9	57M9777	1	Elec. Connector Housing	Pressure Line Heater
10	57M10958	1	Elec. Connector Housing	Supply Module
11	57M9778	1	Elec. Connector Housing	Return Line Heater
12	57M10497	2	Elec. Connector Housing	Coolant Loss
13	57M9536	1	Elec. Connector Terminal	Ring Terminal
14	57M9783	1	Elec. Connector Housing	-
15	57M8637	1	Elec. Connector Housing	CAN Passive Terminator
16	57M9734	1	Elec. Connector Housing	Delta Pressure Sensor
17	57M9787	2	Elec. Connector Housing	Nox SCR
18	R46667	2	Clamp	-
19	AH225363	1	Clip	-
20	AH80916	1	Clip	-
21	19M7864	1	Screw	M8 X 12

After Treatment Wiring Harness ( - 400000)
