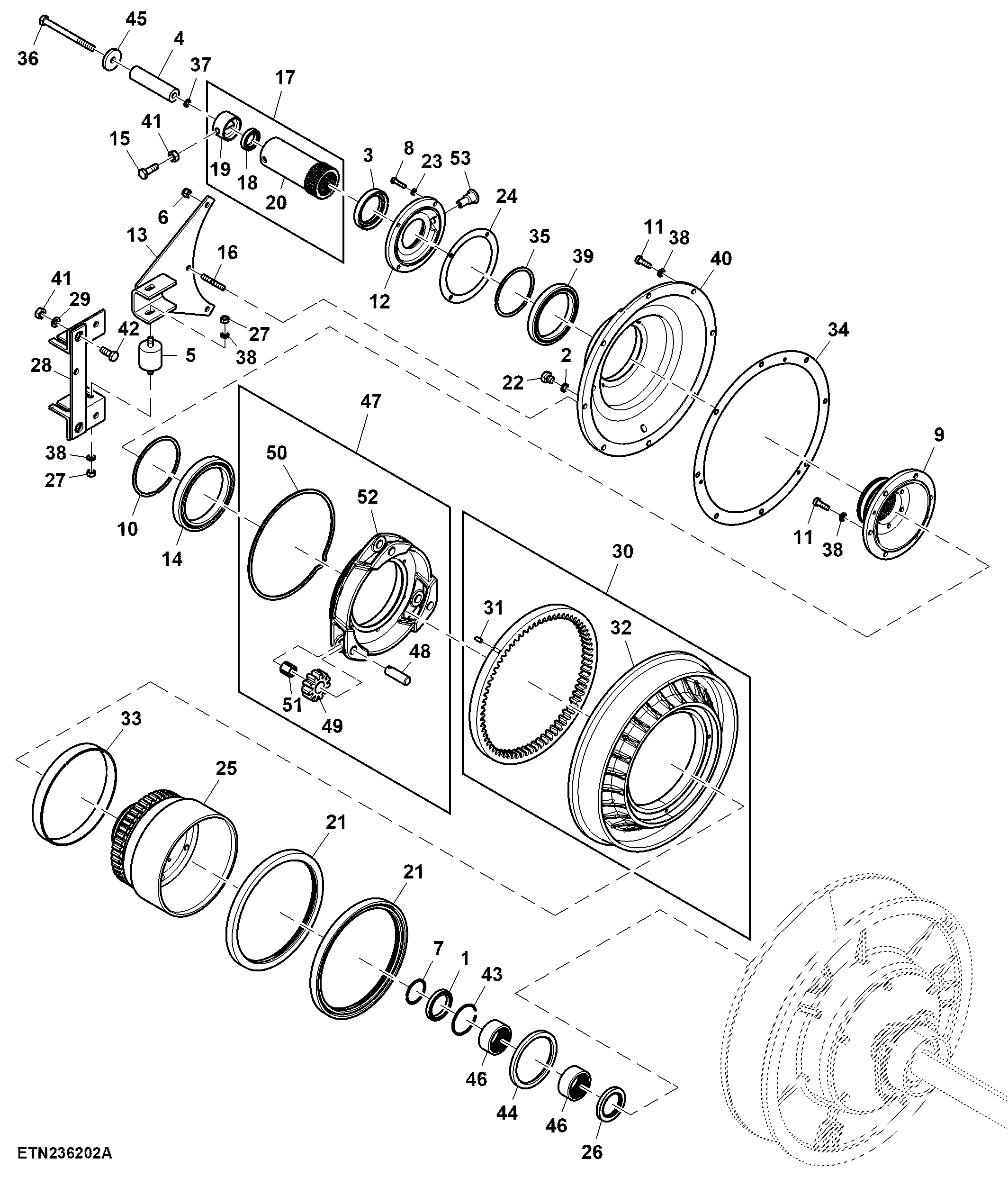

Variable Cylinder Sheaves W/ Gear (Not for Chinese Mainland)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AYC18064	1	Ball Bearing	-
2	YC14891	2	Lock Washer	-
3	AYC16103	1	Seal	-
4	YC14402	1	Bushing	-
5	ADX15396	4	Isolator	-
6	14M7452	3	Lock Nut	M8
7	YC14437	1	Snap Ring	-
8	19M10107	4	Screw	M6 X 25
9	YC14408	1	Hub	-
10	YC14439	1	Snap Ring	-
11	19M7163	11	Cap Screw	M8 X 25
12	YC12045	1	Cover	-
13	DQ48955	1	Arm	-
14	AYC18066	1	Ball Bearing	-
15	19M7168	2	Cap Screw	M10 X 30
16	Z37478	3	Stud	-
17	AYC11463	1	Rasp-Bar Cylinder	-
18	AYC12285	1	Seal	-
19	YC14403	1	Locking Collar	-
20	YC14409	1	Splined Coupling	-
21	AYC11480	2	Seal	-
22	YC14426	2	Fitting Plug	-
23	12M7099	4	Lock Washer	6 mm
24	YC14423	1	Gasket	-
25	YC14404	1	Sun Gear	-
26	AYC11482	1	Seal	-
27	14M7029	4	Nut	M8
28	AYC11466	1	Support	-
29	12M7013	2	LOCK WASHER	10.200 mm
30	AYC10731	1	Ring Gear	-
31	44M7146	3	Dowel Pin	6 X 14 mm
32	YC12042	1	Hub	-
33	YC10162	1	Bushing	-
34	YC14422	1	Gasket	-
35	YC14438	1	Snap Ring	-
36	19M7347	1	Cap Screw	M10 X 120
37	YC13009	1	Sealing Washer	-
38	12M7008	15	LOCK WASHER	8 mm
39	AYC18065	1	Ball Bearing	-
40	YC12044	1	Hub	-
41	14M7140	4	Nut	M10
42	19M7167	2	Cap Screw	M10 X 25
43	Z38133	1	Snap Ring	-
44	AYC11481	1	Seal	-
45	YC11461	1	Washer	-
46	AH86809	2	NEEDLE BEARING	-
47	ADX14979	1	Drive	-
48	YC14424	3	Pin	-
49	Z37517	3	Pinion	-
50	YC10161	1	Snap Ring	-
51	AYC18083	3	Needle Bearing	-
52	YC12043	1	Housing	-
53	AH20868	1	Breather	-

Variable Cylinder Sheaves W/ Gear (Not for Chinese Mainland)

Нет текстового описания
