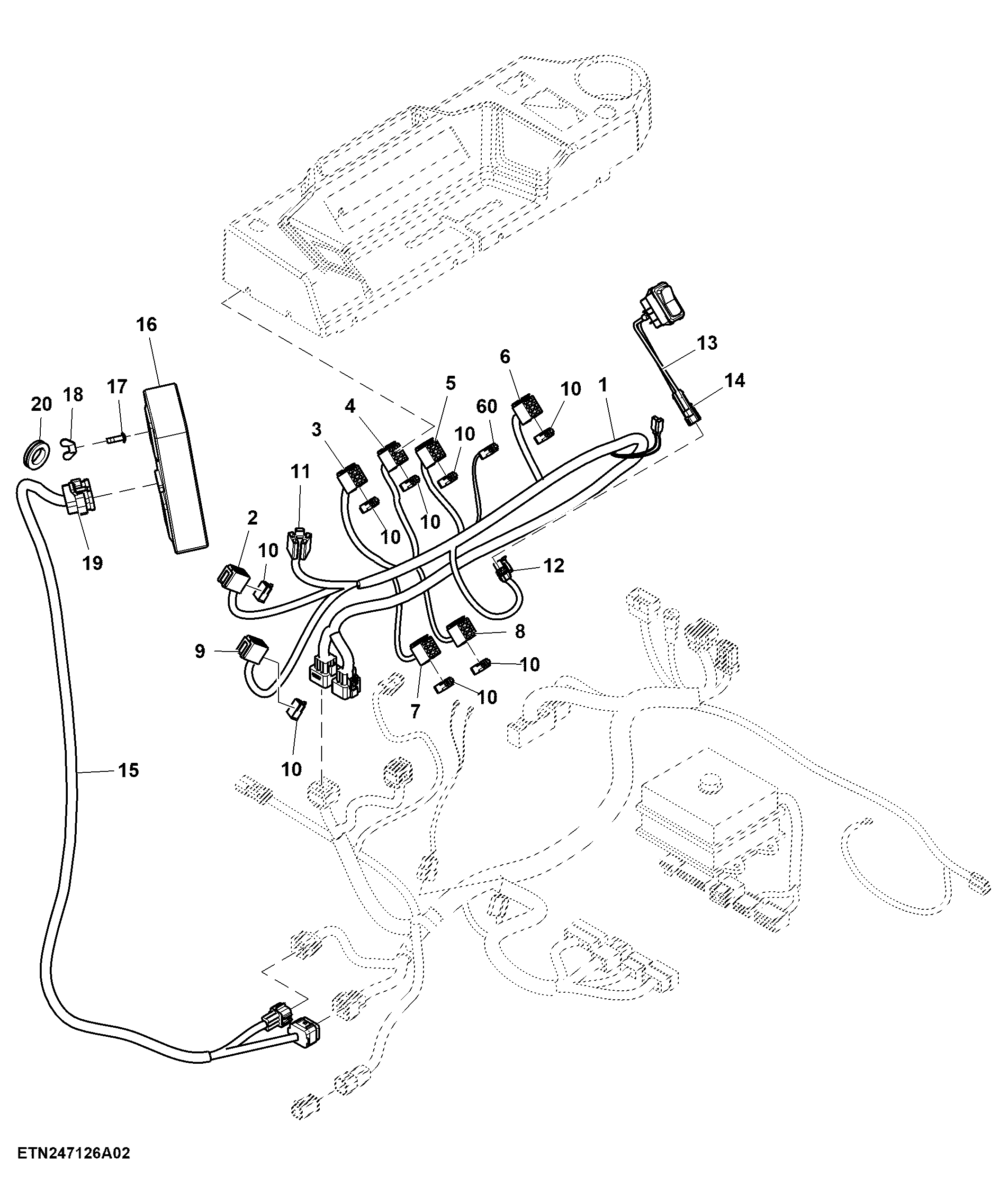

Dashboard Panel Wiring Harness, Hydro Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	ADX15628	1	Wiring Harness	-
2	57M12242	1	Elec. Connector Housing	Horn Switch
3	57M12242	1	Elec. Connector Housing	-
4	57M12242	1	Elec. Connector Housing	Working Light Switch
5	57M12242	1	Elec. Connector Housing	Hazard Light Switch
6	57M12242	1	Elec. Connector Housing	Low Beam Light Switch
7	57M12242	1	Elec. Connector Housing	High Beam Light Switch
8	57M12242	1	Elec. Connector Housing	Unloading Light Switch
9	57M12242	1	Elec. Connector Housing	Turn Switch
10	57M12244	9	Elec. Connector Housing	-
11	L38138	1	Elec. Connector Housing	-
12	57M7254	1	Elec. Connector Housing	-
13	RE198505	1	Toggle/Rocker Switch	-
14	57M7256	1	Elec. Connector Housing	-
14	57M7252	2	Elec. Connector Terminal	-
14	57M7258	2	Elec. Connector Seal	-
14	57M7289	1	Elec.Connect Locking Device	-
15	ADX14588	1	Instrument PNL WRG Harness	-
16	ADX14694	1	Digital Display	-
17	19M8649	2	Screw	M6 X 20
18	14M7019	2	Wing Nut	M6
19	F053324	1	Electrical Connector Assy	-
20	Z34506	1	Grommet	-

Dashboard Panel Wiring Harness, Hydro Drive
