Открытый узел

Countershaft Bracket, Tensioner Bracket, Tensioner Pulley

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7008	3	LOCK WASHER	8 mm
2	24M7055	3	Washer	8.400 X 16 X 1.600 mm
3	47M7003	1	Washer	13 X 24 X 4.600 mm
4	14M7031	3	Nut	M12
5	19M7163	1	Cap Screw	M8 X 25
6	YC15810	1	Extension Spring	-
7	YC17198	2	Reflector Holder	-
8	YC20416	2	Cotter Pin	-
9	03M7230	2	Bolt	M16 X 90
10	24M7097	3	Washer	17 X 28 X 2.500 mm
11	AYC15735	4	Ball Bearing	-
11	JD30028	2	Ball Bearing	Not For Chinese Mainland
12	YC12122	1	Spacer	-
13	AYC10868	3	Idler	INCLUDES (6) 16M2506 AND YC12102
13	CQ20771	18	Rivet	5.250 X 14.500 mm (0.207" X 0.571"), SUB FOR 16M2506
13	YC12102	3	Hub	-
14	Z11632	1	Pulley	-
15	19M7169	2	Cap Screw	M10 X 35
16	14M7029	3	Nut	M8
17	YC23971	1	Key	-
18	19M10098	4	Screw	M6 X 30
19	24M7139	2	Washer	6.400 X 18 X 1.600 mm
20	12M7099	4	Lock Washer	6 mm
21	14M7027	4	NUT	M6
22	Z44761	1	V-BELT	LGTH = 4225 mm, WIDTH = 35.814 mm
23	12M7069	3	Lock Washer	16 mm
24	14M7142	3	Nut	M16
25	24M7053	1	Washer	17 X 30 X 3 mm
26	YC17158	2	Spacer	-
27	Z44762	1	V-Belt	-
28	YC23626	2	Lubrication Fitting	-
29	YC12618	18	Washer	-
30	40M1828	2	Snap Ring	-
31	24M7028	5	Washer	10.500 X 20 X 2 mm
32	19M7168	4	Cap Screw	M10 X 30
33	19M7288	2	Cap Screw	M8 X 30
34	12M7013	6	LOCK WASHER	10.200 mm
35	14M7140	4	Nut	M10
36	AYC12500	1	Retainer	-
37	Z11564	2	Pulley	-
38	YC16739	2	Bushing	-
39	11M7024	1	Cotter Pin	4 X 36 mm
40	AYC11124	1	Holder	-
41	YC20329	1	Bolt	-
42	YC20294	1	Snap Ring	-

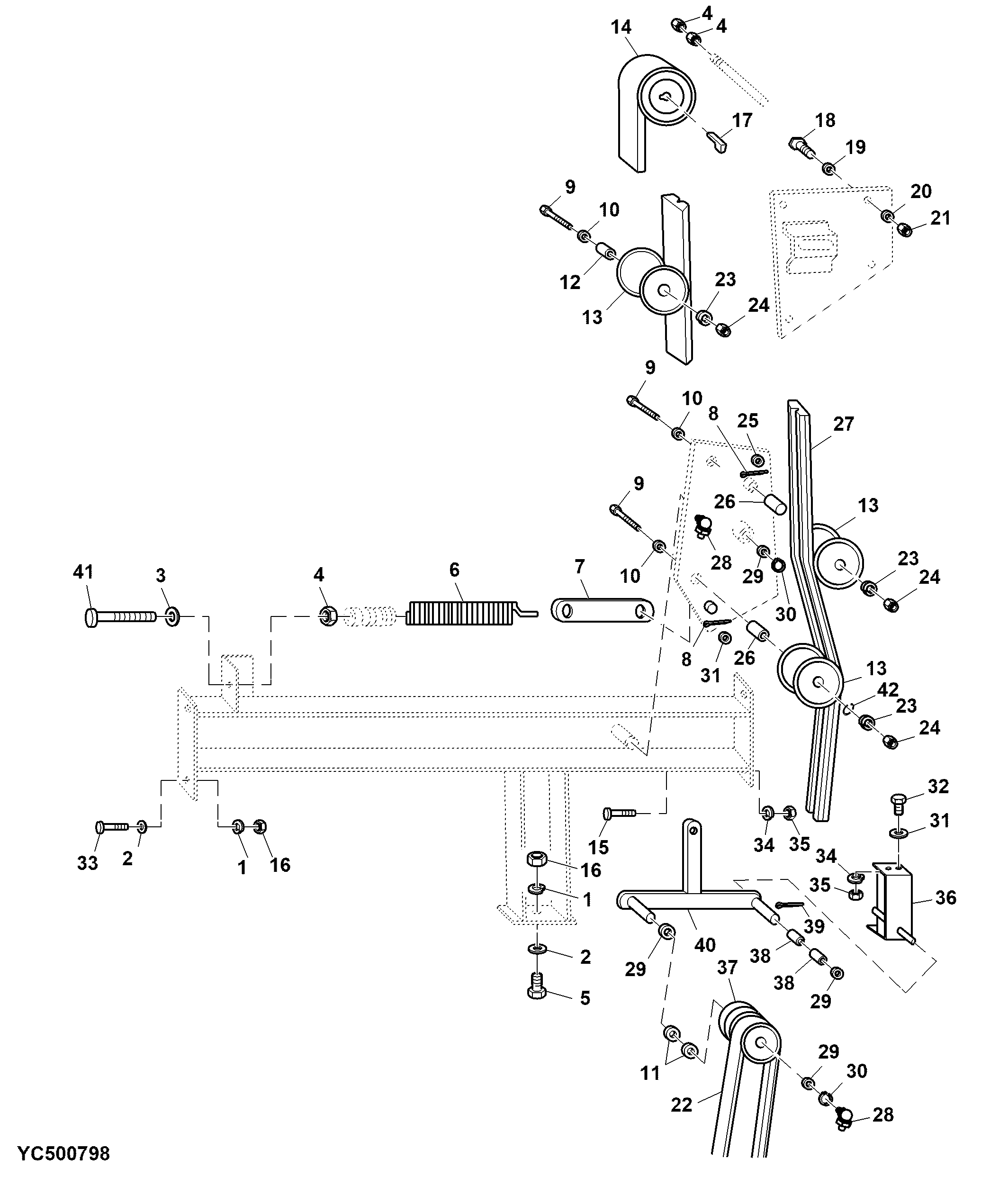

Countershaft Bracket, Tensioner Bracket, Tensioner Pulley

Нет текстового описания
