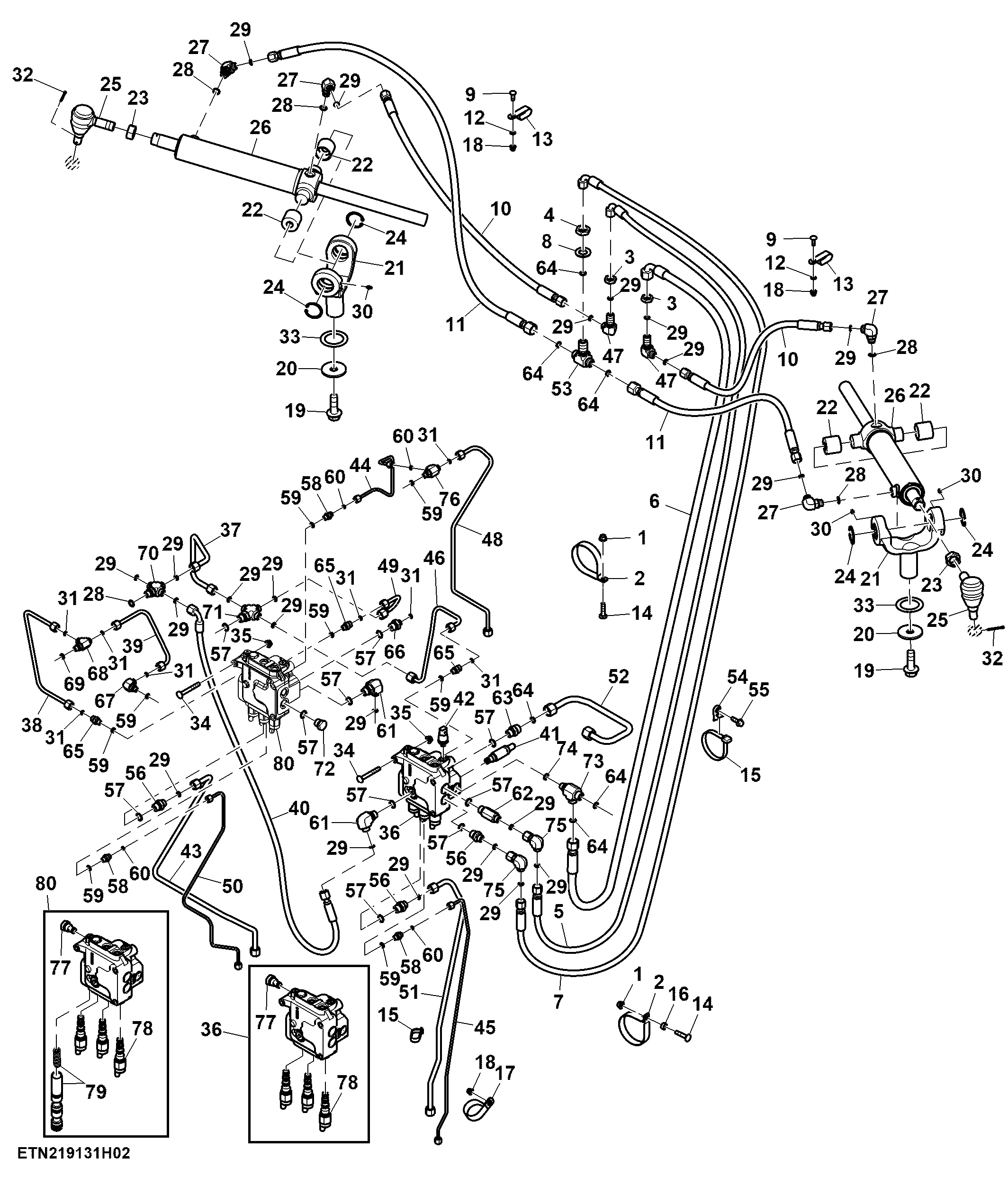

Steering System Lines, AutoTrac™, W/ Backup Pump (2 / 3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7518	4	Flange Nut	M10
2	T273776	4	Clamp	-
3	38H5092	2	Nut	13/16"
4	38H5093	1	Nut	1"
5	AFH219998	1	Hydraulic Hose	Rear Steer Pressure
6	AFH219996	1	Hydraulic Hose	Rear Steer Trd
7	AFH219999	1	Hydraulic Hose	-
8	24M7091	1	Washer	26 X 44 X 4 mm
9	03M7185	4	Bolt	M8 X 25
10	AFH219995	2	Hydraulic Hose	Rear Steer Inboard Short
11	AFH219997	2	Hydraulic Hose	Rear Steer Outboard Long
12	H131531	4	Push Nut	-
13	R50454	4	Clamp	-
14	03M7195	4	Bolt	M10 X 45
15	H224073	3	Tie Band	-
16	N282644	3	Washer	-
17	R553004	1	Hose Clamp	-
18	14M7396	5	Lock Nut	M8
19	19M7851	2	Screw	M20 X 60
20	24M7486	2	Washer	22 X 72 X 6 mm
21	FH310737	2	Yoke	-
22	FH308232	4	Bushing	-
23	R110279	2	Lock Nut	-
24	40M7227	4	Snap Ring	-
25	AFH203909	2	Ball Joint	-
26	AHC21379	2	Hydraulic Cylinder	-
27	38H3005	4	Adapter Fitting	-
28	R26375	5	O-Ring	-
29	T77857	22	O-Ring	-
30	JD7844	4	Lubrication Fitting	-
31	T77613	7	O-Ring	-
32	11M7087	2	Cotter Pin	4 X 40 mm
33	T161036	2	Washer	-
34	03M7218	6	Bolt	M10 X 80
35	14M7296	6	Flange Nut	M10
36	AFH219435	1	Elec-Hyd Proportional Valve	-
36	AFH222042	1	Repair Kit	USE WITH AFH219435
37	AFH220014	1	Oil Line	Auto Trac Tank
38	AFH220015	1	Oil Line	Auto Trac Pilot Tank
39	AFH220030	1	Oil Line	Rear Steer Pilot Trac
40	AFH220235	1	Hydraulic Hose	Rear Steer Trac
41	AFH221566	2	Pressure Relief Valve	-
42	RE584419	1	Pressure Sensor	-
43	AFH221672	1	Oil Line	Auto Trac Pressure
44	AFH220026	1	Oil Line	Auto Trac Pressure Signal
45	AFH220027	1	Oil Line	Rear Steer Load Sense Pressure
46	AFH220029	1	Oil Line	Load Sense Manual
47	38H5098	2	Elbow Fitting	-
48	AFH221674	1	Oil Line	Load Steer Pressure Sensor
49	AFH220016	1	Oil Line	Auto Trac Load Sense Manual
50	AFH221673	1	Oil Line	Auto Trac Load Sense Pressure
51	AFH220025	1	Oil Line	Rear Steer Pressure
52	AFH220031	1	Oil Line	TRD Crossover
53	38H5491	1	Tee Fitting	-
54	N380408	1	Clamp	-
55	19M7786	1	Screw	M10 X 30
56	38H5076	3	Adapter Fitting	-
57	51M7045	10	O-Ring	19.300 X 2.200 mm
58	38H5011	3	Adapter Fitting	-
59	51M7041	8	O-Ring	11.300 X 2.200 mm
60	T77814	4	O-Ring	-
61	38H5027	2	Elbow Fitting	-
62	38H5240	1	Adapter Fitting	-
63	38H5324	1	Adapter Fitting	-
64	T77932	6	O-Ring	-
65	38H5002	3	Adapter Fitting	-
66	38H5193	1	Adapter Fitting	-
67	38H5016	1	Elbow Fitting	-
68	38H3023	1	Tee Fitting	-
69	R26448	1	O-Ring	-
70	38H1061	1	Fitting	-
71	38H5077	1	Fitting	-
72	64M1007	2	Drain Plug	-
73	38H5170	1	Tee Fitting	-
74	51M7043	1	O-Ring	15.300 X 2.200 mm
75	38H5107	2	Elbow Fitting	-
76	38H5275	1	Adapter Fitting	-
77	AL203414	2	Valve Kit	-
77	AL203413	2	O-Ring Kit	USE WITH AL203414
78	RE244397	2	Solenoid Valve	-
78	RE276475	2	Repair Kit	USE WITH RE244397
79	RE276485	1	Repair Kit	-
80	RE326795	1	Elec-Hyd Proportional Valve	-

Steering System Lines, AutoTrac™, W/ Backup Pump (2 / 3)
