After Treatment Wiring Harness

After Treatment Wiring Harness

After Treatment Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

After Treatment Wiring Harness

Нет текстового описания

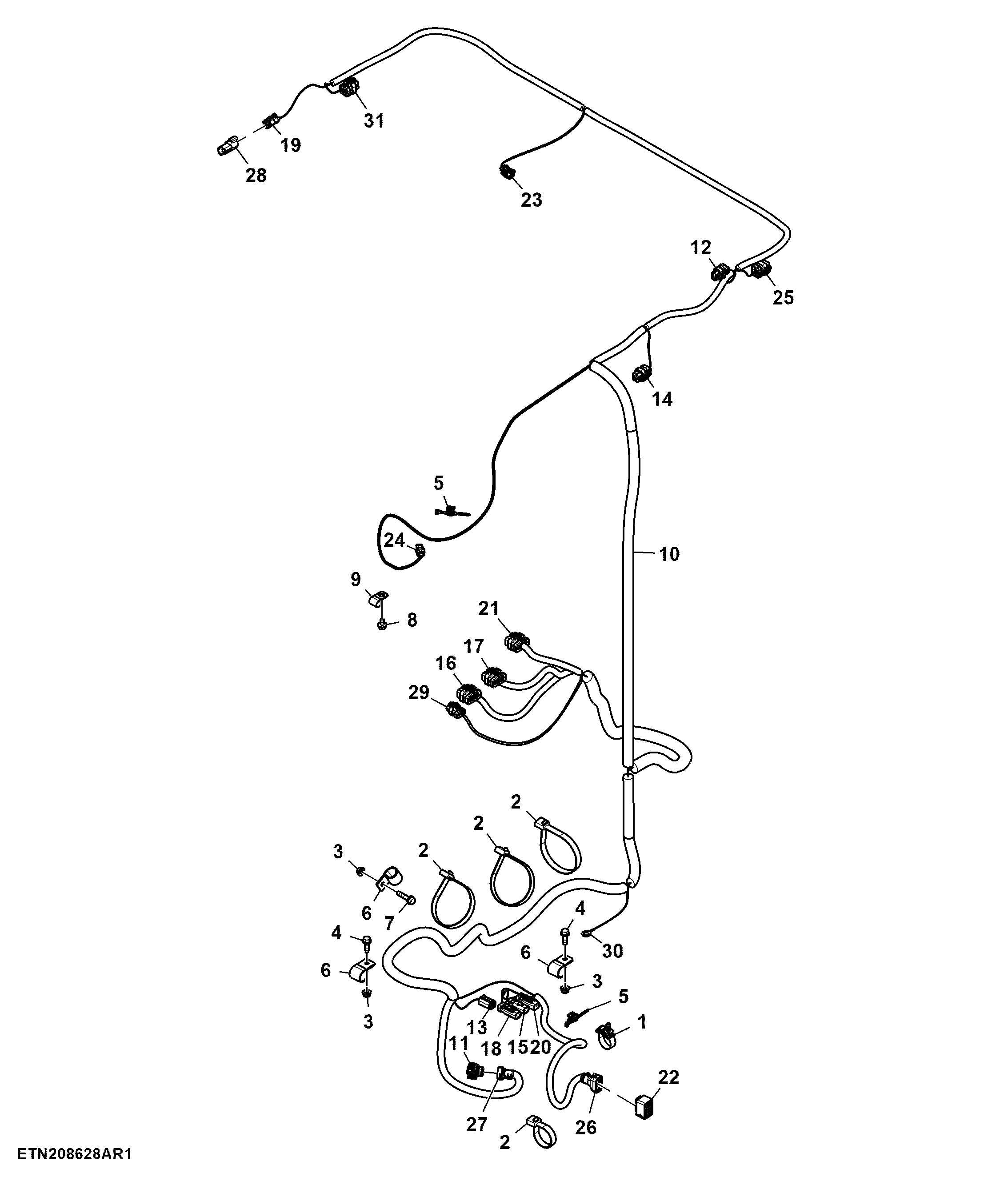

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH203668	1	Tie Band	-
2	H224073	4	Tie Band	-
3	14M7298	3	Flange Nut	M8
4	19M7867	2	Screw	M8 X 25
5	AH225363	2	Clip	-
6	AH77924	3	Clip	-
7	19M7897	1	Screw	M8 X 35
8	19M7864	1	Screw	M8 X 12
9	H75541	1	Clamp	-
10	AFH218877	1	Wiring Harness	-
11	57M13137	1	Elec. Connector Housing	Coolant Control Valve
11	57M7104	2	Elec. Connector Terminal	Cavity 1, 4
11	57M7401	2	Elec. Connector Cavity Plug	Cavity 2, 3
11	57M7950	2	Elec. Connector Terminal	Cavity 1, 4
12	57M9734	1	Elec. Connector Housing	Delta Pressure Sensor
12	57M10321	3	Elec. Connector Terminal	Cavity 1, 2, 3
13	57M10530	1	Elec. Connector Housing	DFTANK DEF Tank
13	57M8016	1	Elec.Connect Locking Device	-
13	57M12049	1	Elec. Connector Accessory	-
13	57M7546	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
14	57M9817	1	Elec. Connector Housing	ATEMSEN Temperature Sensor
14	57M10321	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
15	57M9778	1	Elec. Connector Housing	Return Line Heater
15	57M9810	2	Elec. Connector Terminal	Cavity 1, 2
16	57M9802	1	Elec. Connector Housing	DEF Intcon
16	57M9814	3	Elec. Connector Cavity Plug	Cavity 1, 7, 8
17	57M9801	1	Elec. Connector Housing	SCR Intcon
17	57M10321	9	Elec. Connector Terminal	Cavity 2, 3, 5, 6, 8, 9, 10, 11, 12
17	57M9814	3	Elec. Connector Cavity Plug	Cavity 1, 4, 7
18	57M9777	1	Elec. Connector Housing	Pressure Line Heater
18	57M9810	2	Elec. Connector Terminal	Cavity 1, 2
19	57M8637	1	Elec. Connector Housing	NOXTERM Can Passive Terminator
19	R78069	1	Elec. Connector Cavity Plug	Cavity 3
19	57M8221	1	Elec.Connect Locking Device	-
19	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
20	57M9776	1	Elec. Connector Housing	Suction Line Heater
20	57M9810	2	Elec. Connector Terminal	Cavity 1, 2
21	57M9800	1	Elec. Connector Housing	AFTM Intcon
21	57M10321	11	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 7, 8, 9, 10, 11, 12
21	57M9814	1	Elec. Connector Cavity Plug	Cavity 4
22	57M10958	1	Elec. Connector Housing	Supply Module
22	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
22	57M7403	2	Elec. Connector Cavity Plug	Cavity 1, 7
22	57M8241	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
23	57M9828	1	Elec. Connector Housing	Dosing Module
23	57M9832	2	Elec. Connector Terminal	Cavity 1, 2
23	57M9149	2	Elec. Connector Seal	Cavity 1, 2
24	57M8571	2	Elec. Connector Terminal	Cavity 1, 2
24	57M7938	2	Elec. Connector Terminal	Cavity 1, 2
24	57M10497	1	Elec. Connector Housing	Coolant Loss
25	57M9787	1	Elec. Connector Housing	NOX DPF
25	57M10321	5	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 6
25	57M9814	1	Elec. Connector Cavity Plug	Cavity 2
26	57M11002	1	Elec. Connector Accessory	-
27	57M11120	1	Elec. Connector Accessory	-
28	57M8131	1	Electronic Terminator	-
29	57M9783	1	Elec. Connector Housing	XCL INTCON
29	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
29	57M9814	1	Elec. Connector Cavity Plug	Cavity 3
30	57M9941	1	Elec. Connector Terminal	Ring Terminal
31	57M9787	1	Elec. Connector Housing	NOX SCR
31	57M10321	4	Elec. Connector Terminal	Cavity 1, 4, 5, 6
31	57M9814	2	Elec. Connector Cavity Plug	Cavity 2, 3
