Linkage and Deck Support, Double Windrow Attachment 3/4

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH218313	1	Support	ORDER AFH221279
2	FH319709	3	Spacer	-
3	AFH221558	1	Arm	SUB FOR AFH218319 AND AFH221090
4	AFH214807	1	Hydraulic Cylinder	-
4	AFH209655	1	Seal Kit	-
5	FH340316	1	Clevis	SUB FOR FH318518
6	AFH209639	1	Arm	Front ORDER AFH221091
6	AFH221091	1	Arm	Front
7	AFH209661	1	Support	Bottom
8	AFH209662	1	Clevis	-
9	FH318998	2	Pin	LGTH = 450 mm
10	FH318999	1	Pin	LGTH = 420 mm
11	FH342691	1	Pin	SUB FOR FH319650
12	FH319000	1	Pin	LGTH = 420 mm, Front Arm
13	AFH218310	1	Support	Proximity sensor
14	AFH217507	1	Proximity Sensor	-
15	AFH218311	1	Support	ORDER AFH221279
16	AFH218312	1	Support	ORDER AFH221279
17	AFH209654	1	Link	-
18	AFH218314	1	Link	-
19	AFH209887	2	Clamp	-
20	FH337462	1	Pin	LGTH = 77 mm
21	11M7028	4	Cotter Pin	5 X 32 mm
22	FH319657	1	Pin	LGTH = 101 mm
23	FH319656	2	Pin	LGTH = 83 mm
24	T40159	1	Spring Pin	-
25	FH319686	1	Spring Pin	-
26	JD7842	4	Lubrication Fitting	-
27	T77857	1	O-Ring	-
27	R26448	1	O-Ring	-
27	38H1314	1	Elbow Fitting	SUB FOR AFH218368
28	38H1004	1	Elbow Fitting	SUB FOR AFH217654
28	R26448	1	O-Ring	-
29	AFH218304	1	Hydraulic Hose	LGTH = 2050 mm
30	AFH218305	1	Hydraulic Hose	LGTH = 2100 mm
31	38H1317	1	Fitting	SUB FOR AFH217807
31	R26375	1	O-Ring	-
31	T77932	1	O-Ring	-
32	38H1010	1	Elbow Fitting	-
33	38H1067	1	Adapter Fitting	-
34	38H1160	1	Adapter Fitting	SUB FOR FH336795
35	AFH211041	1	Valve	-
36	AFH209875	1	Hydr. Quick Coupler Socket	-
37	AFH210208	1	Quick Coupler	-
38	FH336465	1	Tie Band	-
39	FH337453	1	Bracket	-
40	FH337428	1	Bracket	Optional
41	19H2898	1	Cap Screw	1/2" X 1-1/4"
42	E62934	1	Flange Nut	-
43	14H1039	1	Nut	5/8"
44	FH319793	1	Washer	-
45	FH319782	1	Bolt	-
46	FH319713	1	Washer	-
47	19H3158	1	Cap Screw	3/4" X 2"
48	FH319768	1	Bolt	-
49	FH319357	1	Nut	-
50	14H785	1	Nut	5/16"
51	19H3065	1	Cap Screw	3/8" X 2"
52	E59406	1	Nut	-
53	03M7187	1	Bolt	M8 X 35
54	21M7325	1	Screw	M5 X 30
55	14M7360	1	Lock Nut	M5
56	24M7213	1	Washer	10.500 X 25 X 4 mm
57	19H1731	1	Cap Screw	3/8" X 1"
58	03H1519	1	Bolt	3/8" X 1"
59	19M7884	1	Cap Screw	M16 X 110
60	24M7280	1	Washer	17 X 30 X 4 mm
61	14M7551	1	Lock Nut	M16
62	19M8224	1	Cap Screw	M20 X 60
63	H149361	1	Lock Nut	-
64	24M7639	1	Washer	21 X 38 X 4 mm
65	19M7950	1	Cap Screw	M20 X 45
66	19H2994	1	Cap Screw	5/8" X 1-1/2"
67	E13874	1	Washer	-
68	N169024	1	Lock Nut	-
69	AFH221279	1	Support Kit	-

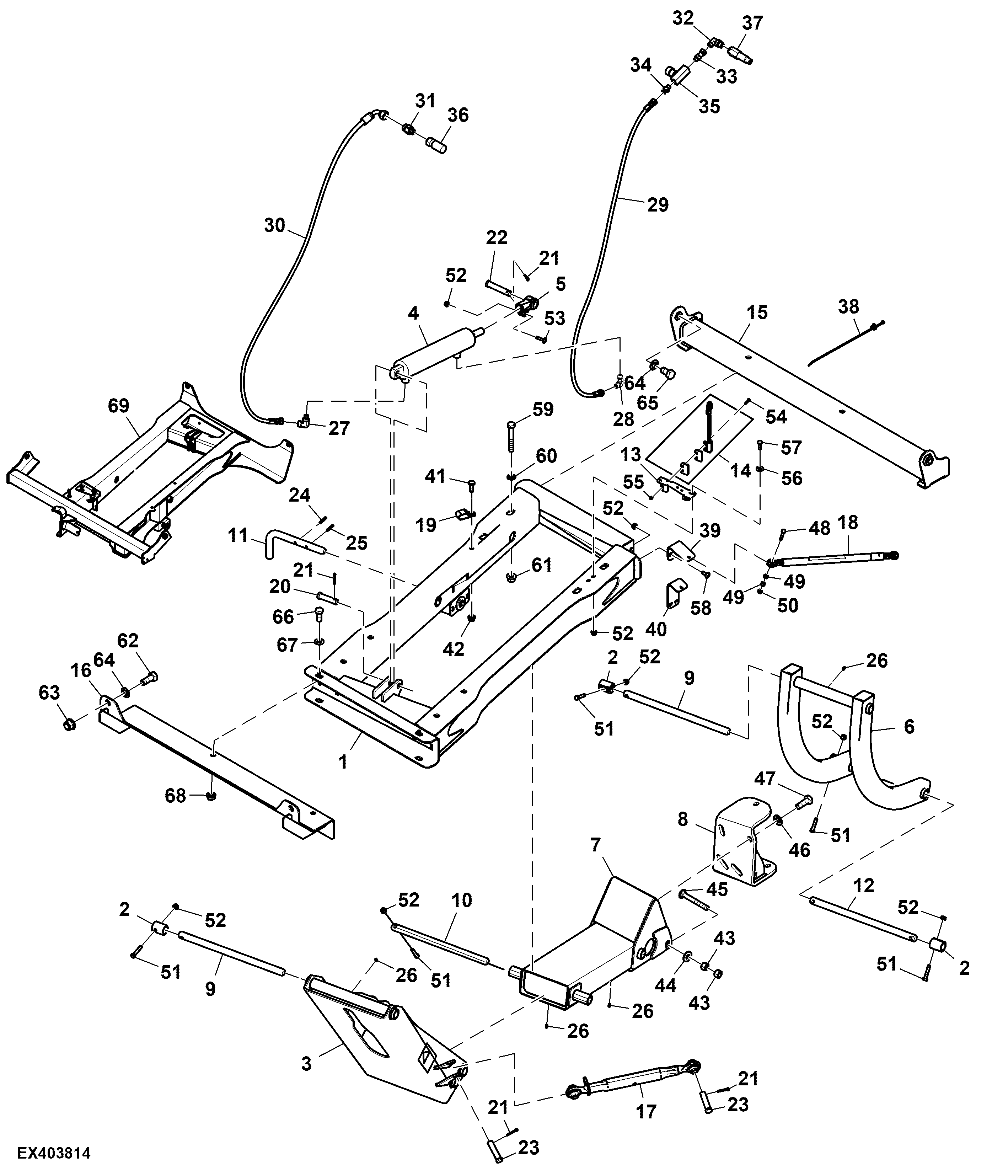

Linkage and Deck Support, Double Windrow Attachment 3/4
