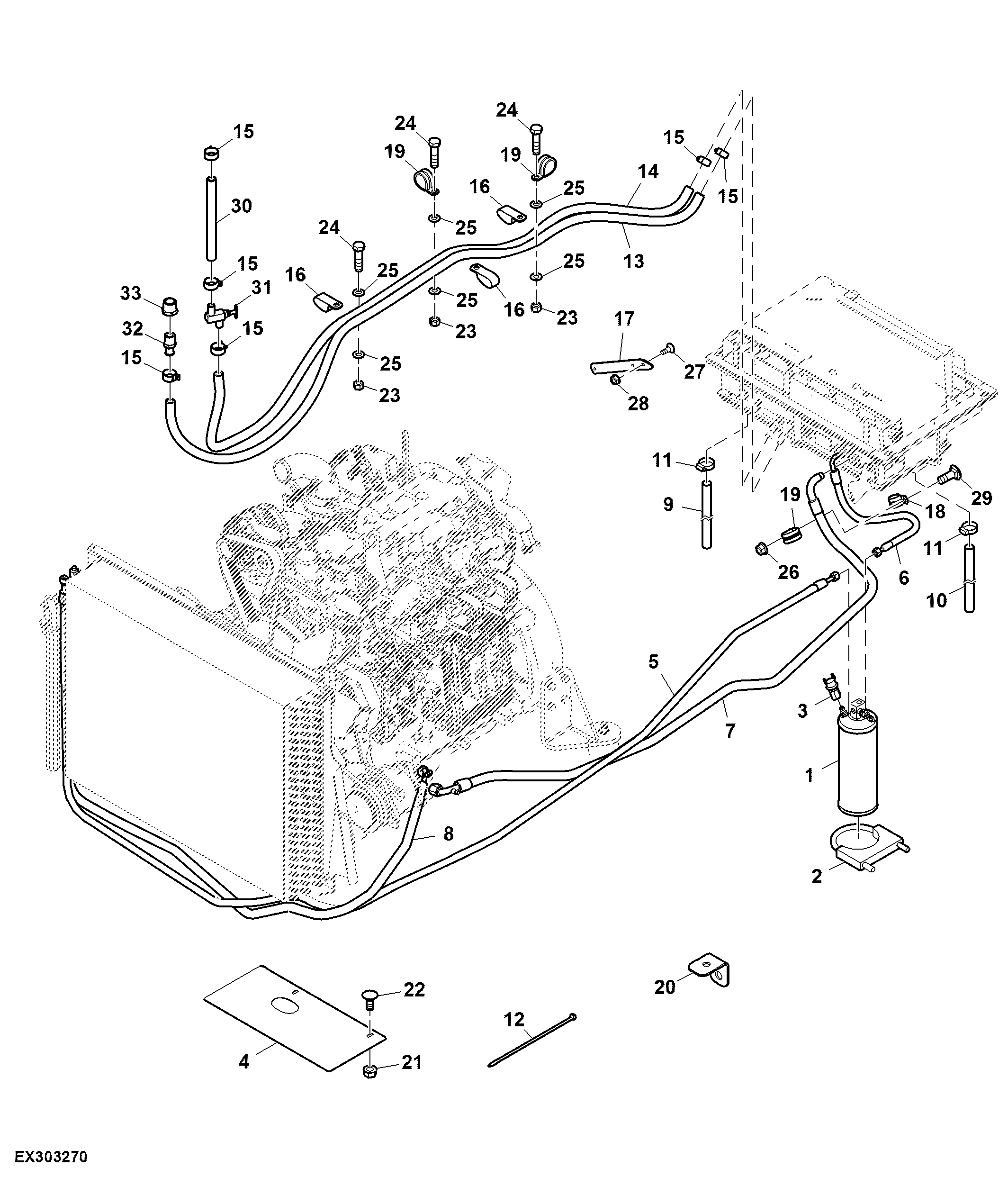

Receiver - Dryer / Hoses, Air Conditioning

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AFH211311	1	Air Conditioner Kit	-
2	AFH209838	1	Clamp	Muffler
3	AFH210683	1	Switch	Air Conditioner High
4	FH318190	2	Sheet	Engine Air Blast
5	AFH208609	1	Refrigerant Hose	(Air Conditioner to Drier) LGTH = 3795 mm
5	R183409	1	O-Ring	Hydrogenated Nitrile Butadiene Rubber Green SUB FOR FH321226
6	AFH212020	1	Refrigerant Hose	(Air Conditioner Drier to Expansion Valve) LGTH = 635 mm
6	R183409	1	O-Ring	Hydrogenated Nitrile Butadiene Rubber Green SUB FOR FH321226
7	FH321227	1	O-Ring	Hydrogenated Nitrile Butadiene Rubber Green
7	FH327026	1	Cap	-
7	AFH211346	1	Pneumatic Pressure Valve	Hydrogenated Nitrile Butadiene Rubber Green Low Side
7	R183412	1	O-Ring	Hydrogenated Nitrile Butadiene Rubber Green or Red
7	AFH212019	1	Hose	(Air Conditioner Expansion Valve to Compressor Suction) LGTH = 2300 mm
8	AFH211354	1	Refrigerant Hose	(Compressor to Conditioner) LGTH = 2500 mm
8	FH337100	1	O-Ring	Hydrogenated Nitrile Butadiene Rubber Green SUB FOR FH321228
8	AFH211349	1	Pneumatic Pressure Valve	High Side Hydrogenated Nitrile Butadiene Rubber Green
8	FH326697	1	Cap	High Side
9	FH319516	1	Hose	Drain
10	FH319517	1	Hose	Drain
11	AR77962	2	Hose Clamp	-
12	R44302	6	Tie Band	Black
13	FH325240	1	Hose	LGTH = 2120 mm, Heater
14	-	1	Part 24	-
14	FH325241	1	Hose	LGTH = 2090 mm, Heater
15	AFH214019	6	Hose Clamp	-
16	AH77869	3	Clip	-
17	FH318124	1	Bracket	Condensate Hose Support
18	AFH209687	1	Clamp	Insulated, 5/8 Inch
19	FH323843	3	Clamp	Insulated , 7/8 Inch
20	FH325242	1	Support	-
21	N318358	1	Lock Nut	-
22	03H1268	1	Bolt	5/16" X 3/4"
23	14H1076	1	Nut	3/8"
24	19H1732	1	Cap Screw	3/8" X 1-1/4"
25	24H1305	1	Washer	13/32" X 13/16" X 0.065"
26	E59406	1	Nut	-
27	03H1778	1	Bolt	1/4" X 5/8"
28	R40694	1	Flange Nut	-
29	19H1731	1	Cap Screw	3/8" X 1"
30	-	1	Part 40	-
31	AFH208852	1	Valve	Heater Shutoff
32	FH317920	1	Fitting	-
33	15H589	1	Pipe Bushing	1/2"
