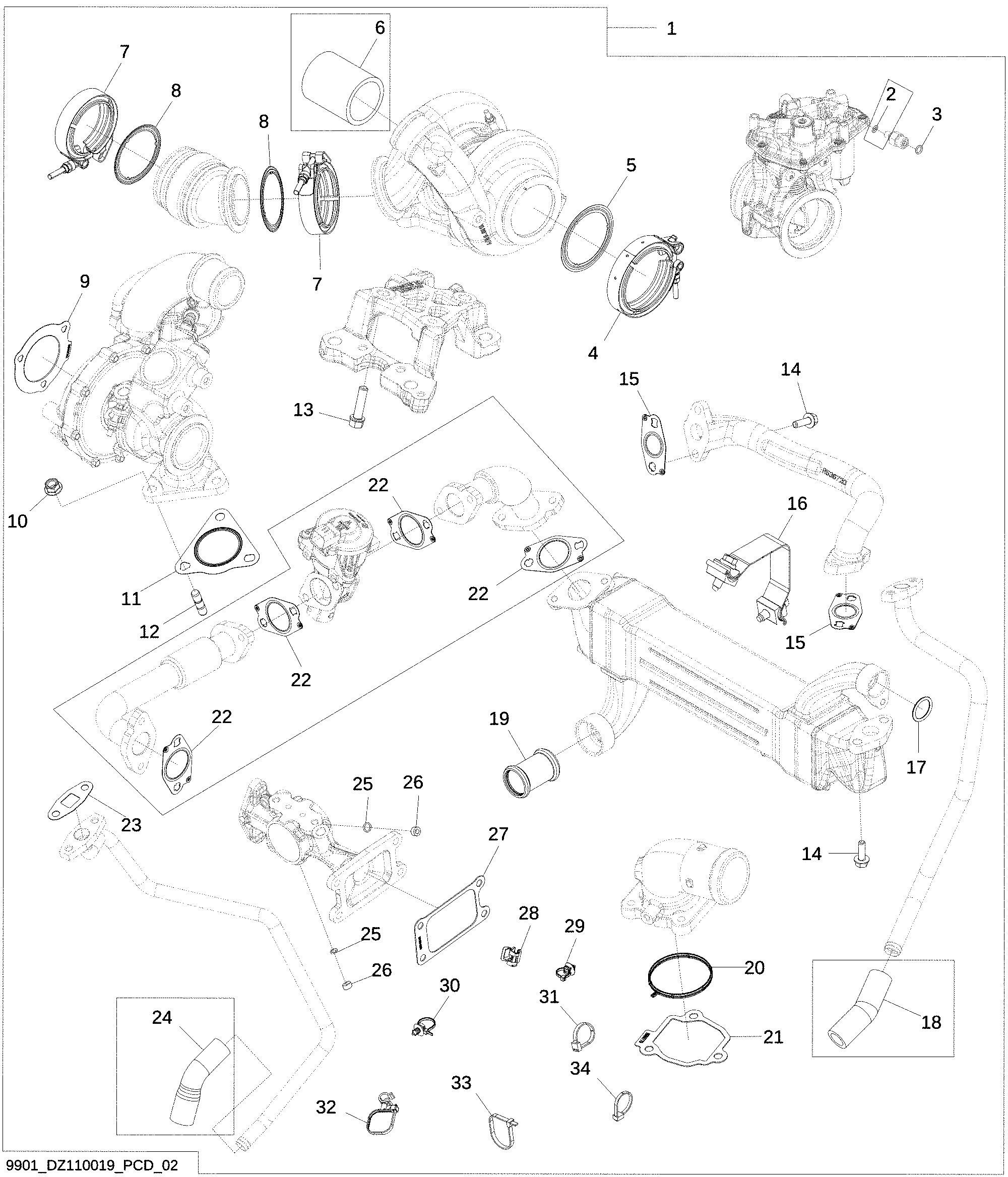

9901 Cylinder Head Removal Gasket Kit (2/3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ110019	1	Gasket Kit	Also Order Injector High Pressure Fuel Lines, Side Feed Tubes and Head Bolt Kit
2	51M7052	2	O-Ring	6.071 X 1.626 mm
3	T77814	4	O-Ring	-
4	RE555336	4	Clamp	Direct Ship Exhaust Throttle
5	R544198	4	Gasket	Direct Ship
6	DZ121863	2	Hose	LGTH = 75 mm, High Temperature SUB FOR R532483
7	RE569859	2	Clamp	-
8	R529509	2	Gasket	Direct Ship
9	DZ10952	1	Gasket	Turbocharger Compressor Interstage
10	14M7296	3	Flange Nut	M10
11	R536593	1	Gasket	Turbocharger
12	R550774	3	Stud	-
13	R526640	3	Cap Screw	-
14	R542509	4	Cap Screw	-
15	RE555036	2	Gasket	Exhaust Gas Recirculation System
16	RE550170	2	Clamp	Exhaust Gas Recirculation Cooler
17	R532304	1	O-Ring	-
18	DZ121862	1	Hose	Turbo Drain SUB FOR R534830
19	R528313	1	Tube	LGTH = 60 mm, High Temperature
20	R528223	1	Seal	Air Throttle Valve
21	R550779	1	Gasket	Air Inlet
22	RE553857	4	Gasket	Exhaust Gas Recirculation System Cold Side SUB FOR DZ102717
23	R123570	2	Gasket	Turbo Oil Outlet
24	DZ121861	2	Hose	Turbo Drain SUB FOR R534828
25	51M7039	4	O-Ring	8.100 X 1.600 mm
26	R51936	4	Sealing Washer	-
27	R536498	1	Gasket	Intake Manifold to Venturi
28	L171201	5	Clip	-
29	RE564777	16	Tie Band	-
30	RE566207	5	Tie Band	-
31	57M12233	8	Elec. Connector Accessory	-
32	L210257	1	Tie Band	-
33	R44302	5	Tie Band	-
34	57M12235	4	Elec. Connector Accessory	-

9901 Cylinder Head Removal Gasket Kit (2/3)
