Открытый узел

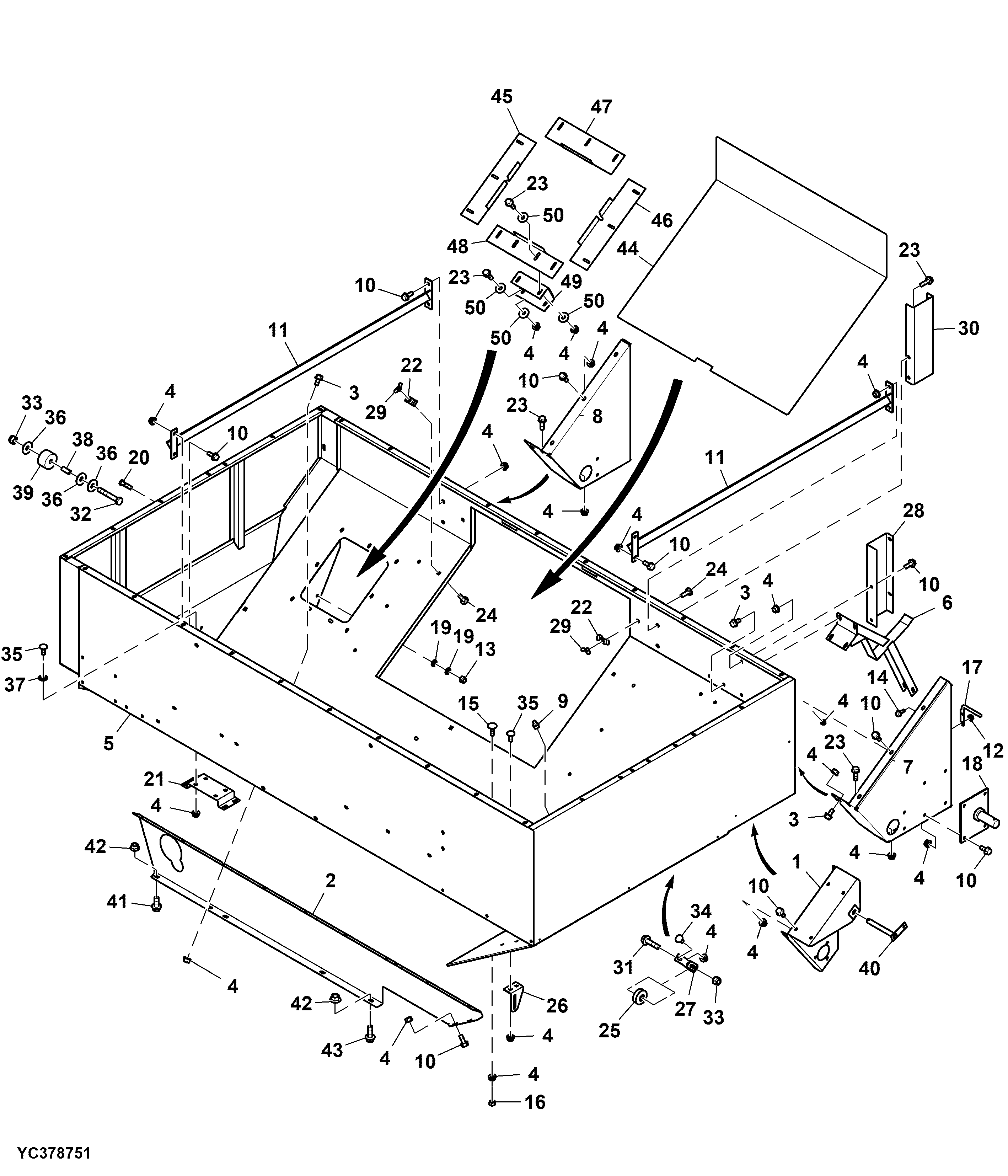

Lower Supports, Grain Tank, Hydraulic Unloading Drive

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	ADX13580	1	Support	-
2	DX16840	1	Support	-
3	19M7865	18	Screw	M8 X 16
4	14M7298	68	Flange Nut	M8
5	ADX13574	1	Tank	-
6	ADX13581	1	Support	-
7	DX16841	1	Support	LH
8	DX16842	1	Support	RH
9	58M5575	2	Lubrication Fitting	-
10	19M7866	25	Screw	M8 X 20
11	AYC10929	2	Lever	-
12	14M7439	2	Flange Nut	M6
13	14M7452	3	Lock Nut	M8
14	19M7775	2	Screw	M6 X 16
15	03M7093	4	Bolt	M8 X 25
16	14M7029	4	Nut	M8
17	YC13944	1	Lever	-
18	AYC11078	1	Pin	-
19	14M7140	6	Nut	M10
20	YC14353	3	Bolt And Nut	-
21	YC12739	1	Support	-
22	Z20367	5	Clamp	-
23	19M7867	11	Screw	M8 X 25
24	03M7185	5	Bolt	M8 X 25
25	YC19005	1	Pulley	-
26	YC13809	1	Wear Angle	-
27	YC24345	1	Holder	-
28	YC12411	1	Channel	-
29	14M7020	5	Wing Nut	M8
30	YC12410	1	Channel	-
31	19M8162	1	Screw	M10 X 40
32	19M8498	1	Cap Screw	M10 X 65
33	14M7694	2	Lock Nut	M10
34	03M7183	4	Bolt	M8 X 16
35	03M7184	6	Bolt	M8 X 20
36	24M7178	3	Washer	10.500 X 30 X 2.500 mm
37	24M7044	4	Washer	13 X 20 X 2 mm
38	YC16602	1	Bushing	-
39	YC16601	1	Tightener	-
40	AZ22498	1	Axle	-
41	19M7785	3	Screw	M10 X 25
42	14M7296	5	Flange Nut	M10
43	19M7786	2	Screw	M10 X 30
44	ADX13830	1	Cover	-
45	DX17412	1	Plate	-
46	DX17411	1	Plate	-
47	ADX13797	1	Carrying Strap	-
48	ADX13796	1	Carrying Strap	-
49	DX16994	1	Support	-
50	24M7207	8	Washer	8.400 X 24 X 2 mm

Lower Supports, Grain Tank, Hydraulic Unloading Drive
