Большое обновление пильных узлов

Смотреть

Тип техники

Бренд

Машина

Большое обновление пильных узлов

Смотреть

Открытый узел

Auger W/ Bearing, Hydraulic Unloading Drive

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7029	1	COTTER PIN	5 X 36 mm
2	12M7069	1	Lock Washer	16 mm
3	14M7695	3	Lock Nut	M12
4	19M7283	1	Cap Screw	M16 X 35
5	19M7331	2	Cap Screw	M12 X 65
6	19M7865	14	Screw	M8 X 16
7	24M7053	1	Washer	17 X 30 X 3 mm
8	34M7044	3	Spring Pin	6 X 50 mm
9	34M7054	3	Spring Pin	10 X 50 mm
10	45M7025	1	Pin Fastener	22 X 60 mm
11	ADX13698	1	Tube	-
12	AYC15360	1	Link Chain	L = 36
13	AYC20297	1	Support	-
14	24M7318	1	Washer	19 X 34 X 3 mm
15	AYC27615	1	Universal Joint	-
16	12M7008	11	LOCK WASHER	8 mm
17	12M7013	10	LOCK WASHER	10.200 mm
18	12M7099	3	Lock Washer	6 mm
19	14M7027	7	NUT	M6
20	14M7029	7	Nut	M8
21	14M7140	12	Nut	M10
22	14M7439	4	Flange Nut	M6
23	19M10106	7	Screw	M6 X 16
24	19M7139	4	Cap Screw	M8 X 20
25	19M7775	4	Screw	M6 X 16
26	24M7028	10	Washer	10.500 X 20 X 2 mm
27	24M7055	17	Washer	8.400 X 16 X 1.600 mm
28	24M7139	6	Washer	6.400 X 18 X 1.600 mm
29	YC17040	1	Guard	-
30	Z38380	1	GUARD	-
31	Z38539	2	REINFORCEMENT	-
32	Z45461	1	SPOUT	-
33	03M7017	2	Bolt	M10 X 25
34	03M7190	4	Bolt	M10 X 20
35	03M7193	3	Bolt	M10 X 35
36	14M7296	5	Flange Nut	M10
37	14M7299	3	Flange Nut	M12
38	14M7452	4	Lock Nut	M8
39	19M7162	2	Cap Screw	M8 X 16
40	19M7270	4	Cap Screw	M8 X 65
41	19M7284	3	Cap Screw	M8 X 18
42	19M7297	2	Cap Screw	M8 X 12
43	19M7724	1	Cap Screw	M10 X 45
44	19M7788	3	Screw	M12 X 25
45	19M7864	4	Screw	M8 X 12
46	ADX13665	1	Auger	SUB FOR ADX14532
47	ADX16472	1	Tube	SUB FOR ADX14555 OR ADX13667
48	AYC12729	1	Tightener	-
49	AYC18052	4	Ball Bearing	-
50	AYC18089	4	Eccentric Locking Collar	-
51	AZ27913	1	BRUSH	USE WITH AYC10724
52	DX17010	1	Shaft	-
53	DX17052	1	Guard	-
54	YC16149	1	Eyebolt	-
55	YC16875	4	Holder	-
56	YC17050	1	Cover	-
57	YC23874	1	Washer	-
58	YC12619	1	Chain Sprocket	Z = 14
59	Z30026	4	PRESSED FLANGED HOUSING	-
60	Z33527	4	BEARING	-
61	Z38395	4	PRESSED FLANGED HOUSING	-
62	Z38597	12	CLAMP	USE WITH AZ27913
63	YC24330	1	U-Bolt	-
64	YC12154	1	Eyebolt	-
65	YC20392	4	Screw	-
66	Z20443	4	NUT	-
67	Z22294	2	COVER	-
68	Z41180	1	Bushing	-
69	Z11152	1	CHAIN SPROCKET	Z = 18
70	ADX16422	1	Auger	SUB FOR AYC10724
71	Z11095	1	Bearing	-
72	Z37227	1	Bushing	-
73	19M7189	1	Cap Screw	M12 X 80
74	58M5577	1	Lubrication Fitting	-
75	03M7085	2	Bolt	M10 X 30
76	Z32298	1	Thimble	-
77	DX22104	1	Plate	-
78	DX22103	1	Plate	-

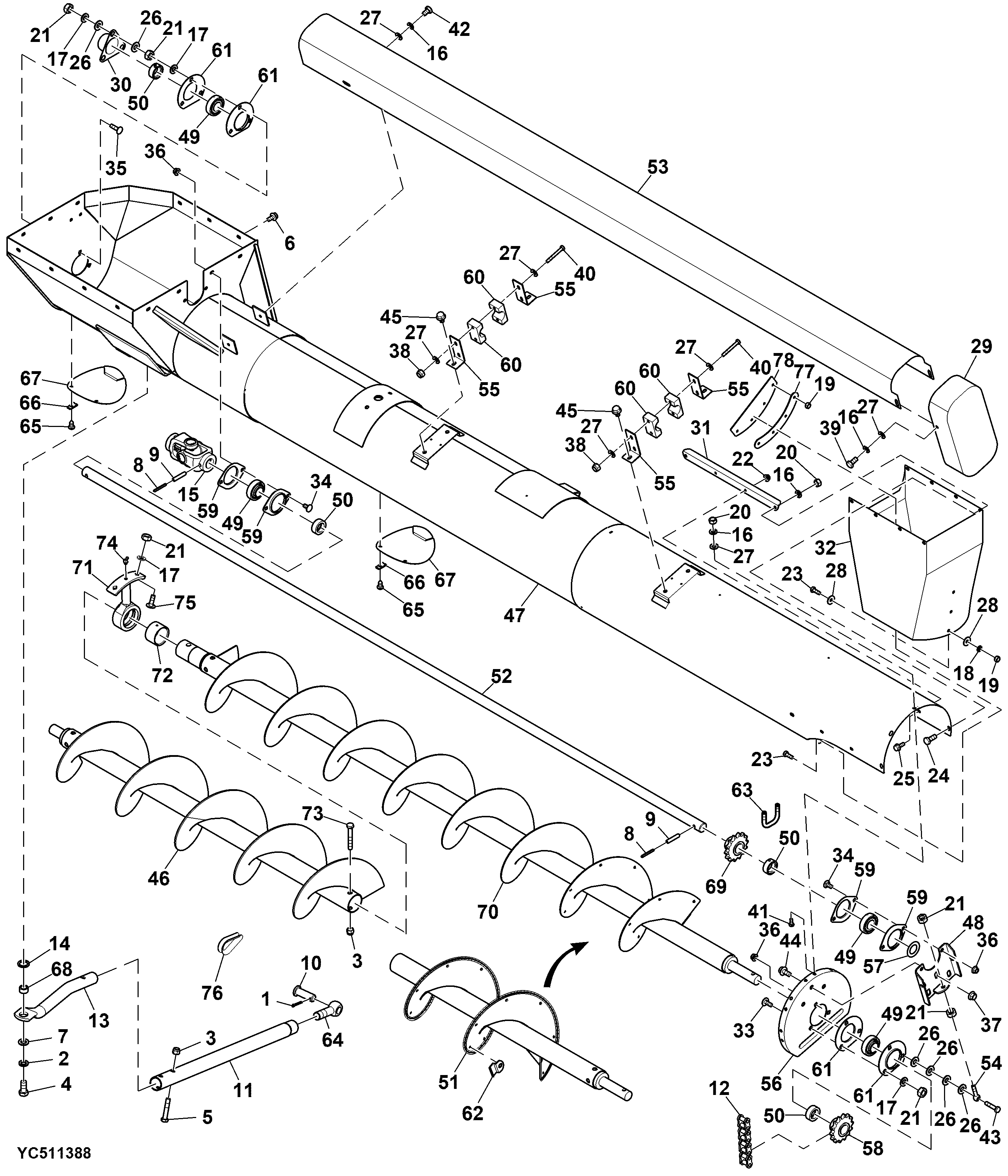

Auger W/ Bearing, Hydraulic Unloading Drive

Нет текстового описания
