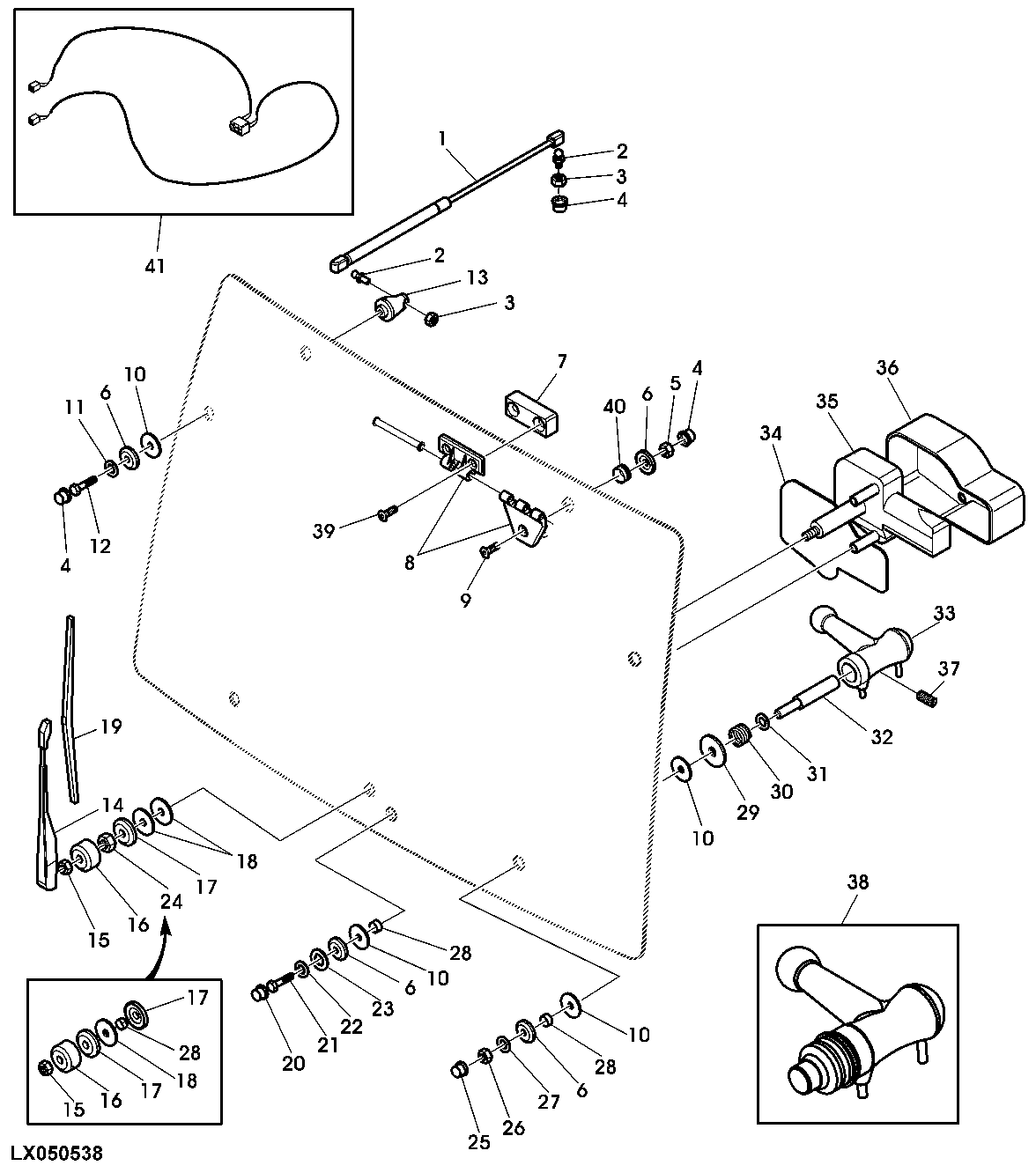

FRONT WINDSHIELD WIPER, COMPONENTS - WINDSHIELD, OPENING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL114803	2	Gas Operated Cylinder	(SUB FOR ER200487, ER359199, AL174357 APPL)
2	ER200461	2	Ball Joint	SUB FOR ER359204
3	ER021737	2	Screw	M3.5 X 13
4	L32394	6	Cap	(SUB FOR ER201337, ER047771 APPL)
5	14M7327	2	Lock Nut	M8
6	ER201339	4	Washer	(SUB FOR ER047774)
7	ER200486	2	Spacer	(SUB FOR ER047776)
8	ER200485	2	Hinge	(SUB FOR ER047777)
9	ER020506	2	Bolt	M8 X 35
10	ER201340	4	Sealing Washer	(SUB FOR ER047884)
11	24M7055	4	Washer	8.400 X 16 X 1.600 mm
12	19M7139	2	Cap Screw	M8 X 20, (SUB FOR ER020777 APPL)
13	ER200490	2	Fitting	(SUB FOR ER047775)
14	ER047831	1	Arm	(SUB FOR ER201475)
15	14M7273	1	Nut	M8, (SUB FOR ER022115 APPL)
16	ER047769	1	Cap	-
17	ER047215	1	Washer	SUB FOR ER047783
18	ER047773	2	Sealing Washer	-
19	ER340159	1	Wiper Blade	LGTH= 455MM, (SUB FOR ER201476, ER047830)
20	ER201342	1	Cap	(SUB FOR ER030733)
21	19M7160	2	Cap Screw	M6 X 30, (SUB FOR ER020754 APPL)
22	24M7054	2	Washer	6.400 X 12 X 1.600 mm
23	24M7139	2	Washer	6.400 X 18 X 1.600 mm, (SUB FOR ER023067 APPL)
24	ER022180	1	Nut	M16 X 1.5
25	ER047915	1	Cap	-
26	14M7517	1	Lock Nut	M10, (SUB FOR ER022412 APPL)
27	24M7028	1	Washer	10.500 X 20 X 2 mm
28	ER201341	2	Washer	(SUB FOR ER047778)
29	ER263037	1	Washer	-
30	ER263036	1	Spring	-
31	24M7228	1	Washer	15 X 21 X 1.300 mm, SUB FOR ER263035
32	ER263033	1	Pin	-
33	ER047880	1	Handle	SUB FOR ER263034
34	ER047798	1	Plate	-
35	ER047834	1	Motor	-
36	ER047832	1	Shield	-
37	ER263032	1	Dowel Pin	-
38	ER201009	1	Handle	(SUB FOR ER047880)
39	19M7574	4	Screw	M8 X 40, (SUB FOR ER020495 APPL)
40	ER201338	2	Washer	-
41	ER201554	1	Wiring Harness	-

FRONT WINDSHIELD WIPER, COMPONENTS - WINDSHIELD, OPENING
