Chassis Wiring Harness, Non-Certified Engine (2/3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE592392	1	Chassis Wiring Harness	SUB FOR RE588476, RE582807
2	57M7255	1	Elec. Connector Housing	Dust Cap 63A
2	57M7317	1	Elec. Connector Accessory	-
3	57M7257	1	Elec. Connector Housing	Radar 63
3	57M7317	1	Elec. Connector Accessory	-
3	57M8910	1	Clip	-
3	R104919	3	Elec. Connector Terminal	Cavity A, B, C
3	57M9214	3	Elec. Connector Seal	Cavity A, B, C
4	57M7280	1	Elec. Connector Housing	Headlight Connector 30
4	57M7274	1	Elec. Connector Accessory	-
4	57M7491	3	Elec. Connector Terminal	Cavity A, B, C
4	57M9216	3	Elec. Connector Seal	Cavity A, B, C
5	57M9217	4	Elec. Connector Seal	Cavity B, C, D, G
5	57M9219	1	Elec. Connector Seal	Cavity A
5	57M7707	1	Elec. Connector Terminal	Cavity A
5	57M7540	1	Elec. Connector Terminal	-
5	57M7538	1	Elec. Connector Housing	Hood Harness 31
5	57M9198	4	Elec. Connector Terminal	Cavity B, C, D, G
6	57M8866	2	Elec. Connector Terminal	Junction Block 24
7	57M8867	2	Elec. Connector Terminal	Starter Relay 26
8	57M8908	1	Clip	-
9	57M8910	1	Clip	-
10	57M9412	2	Clamp	-
11	R77476	1	Electrical Connector Assy	Front Washer Pump 28
11	57M9461	2	Elec. Connector Terminal	Cavity A, B
12	57M7254	1	Elec. Connector Housing	Fuel Level 27
12	57M7289	1	Elec.Connect Locking Device	-
12	57M7494	2	Elec. Connector Terminal	Cavity A, B
12	57M9214	2	Elec. Connector Seal	Cavity A, B
13	R77476	1	Electrical Connector Assy	Rear Washer Pump 29
13	R78058	2	Elec. Connector Terminal	Cavity A, B
14	57M8875	2	Elec. Connector Terminal	Starter Relay 26

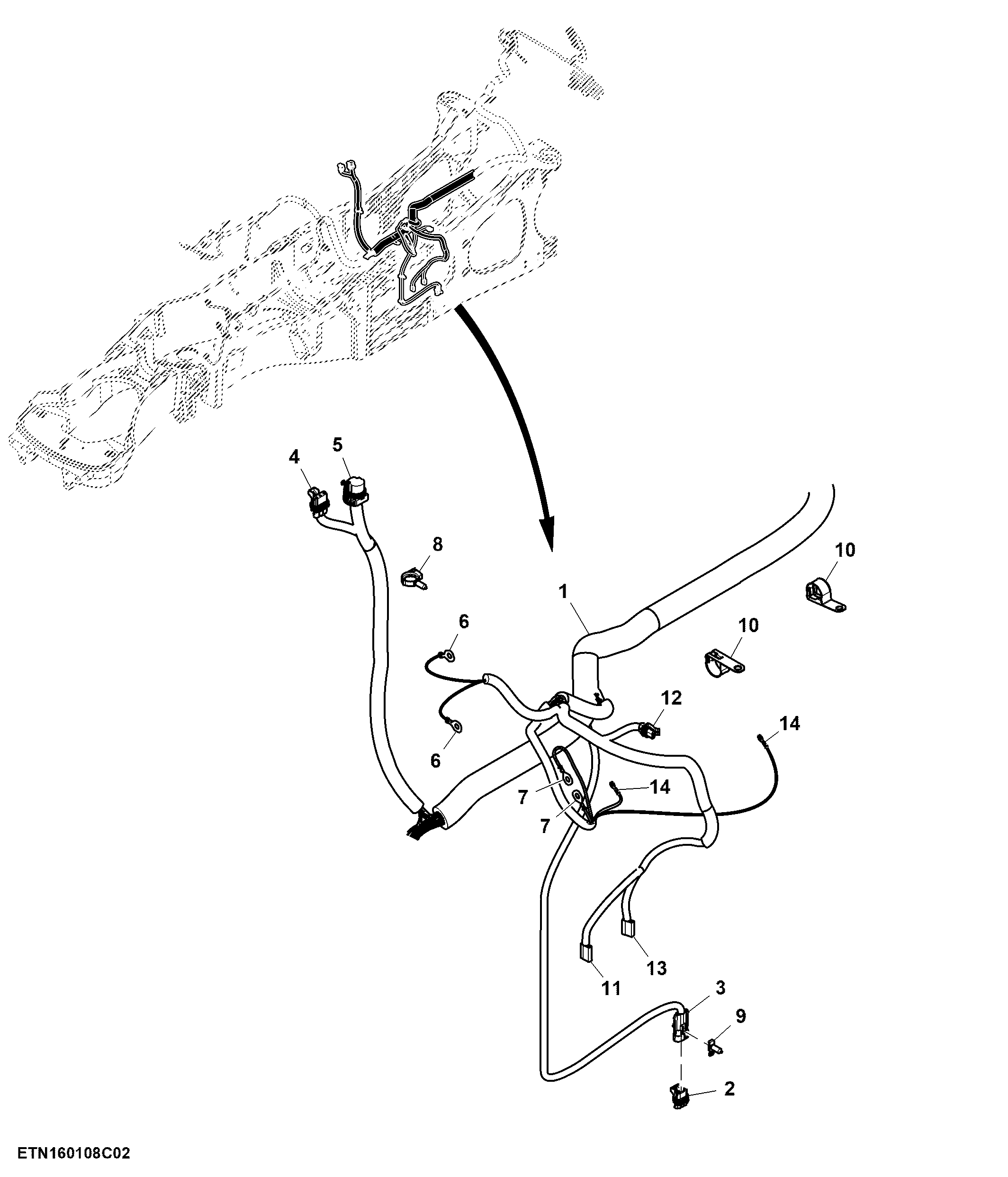

Chassis Wiring Harness, Non-Certified Engine (2/3)
