Steering Controller Wiring Harness, W/ AutoTrac™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8016	1	Elec.Connect Locking Device	-
1	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
1	57M8015	1	Electrical Connector Assy	Imp Can Connector 1 4
2	57M8017	1	Elec. Connector Housing	Imp Can Connector 2 3
2	57M7619	1	Elec.Connect Locking Device	-
2	57M8164	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
3	57M7260	1	Elec. Connector Housing	Tractor Can Connector 1 6
3	57M7291	1	Electrical Connector Assy	-
3	R104846	4	Elec. Connector Terminal	Cavity B, D, E, F
3	57M7258	4	Elec. Connector Seal	Cavity B, D, E, F
4	57M7291	1	Electrical Connector Assy	-
4	57M7258	4	Elec. Connector Seal	Cavity B, D, E, F
4	R104919	4	Elec. Connector Terminal	Cavity B, D, E, F
4	57M7263	1	Elec. Connector Housing	Tractor Can Connector 2 5
5	RE42196	1	Electrical Connector Assy	Cab Harness Connector 2
5	57M7281	1	Elec.Connect Locking Device	-
5	R104919	9	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J
5	57M7258	5	Elec. Connector Seal	Cavity A, B, C, F, G
6	57M8527	1	Elec. Connector Housing	Tecu Controller J2 1
6	57M10613	1	Elec. Connector Housing	-
6	57M8770	10	Elec. Connector Terminal	Cavity A1, B1, D4, E2, E4, F4, G1, G2, H3, J3
6	57M8531	7	Elec. Connector Terminal	Cavity L1, L2, L4, M1, M2, M3, M4
7	RE592428	1	Wiring Harness	Steering SUB FOR RE237919

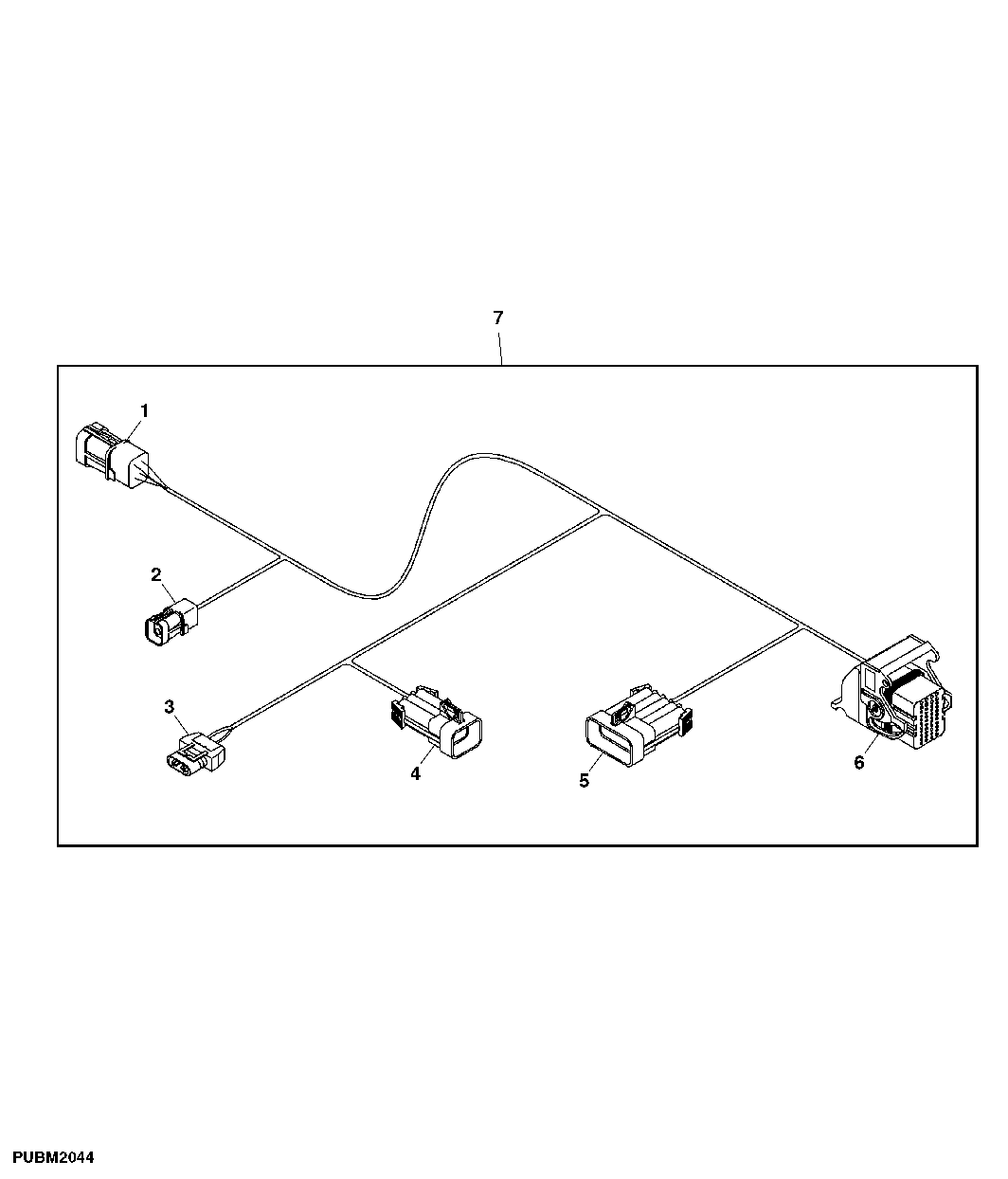

Steering Controller Wiring Harness, W/ AutoTrac™

Нет текстового описания
