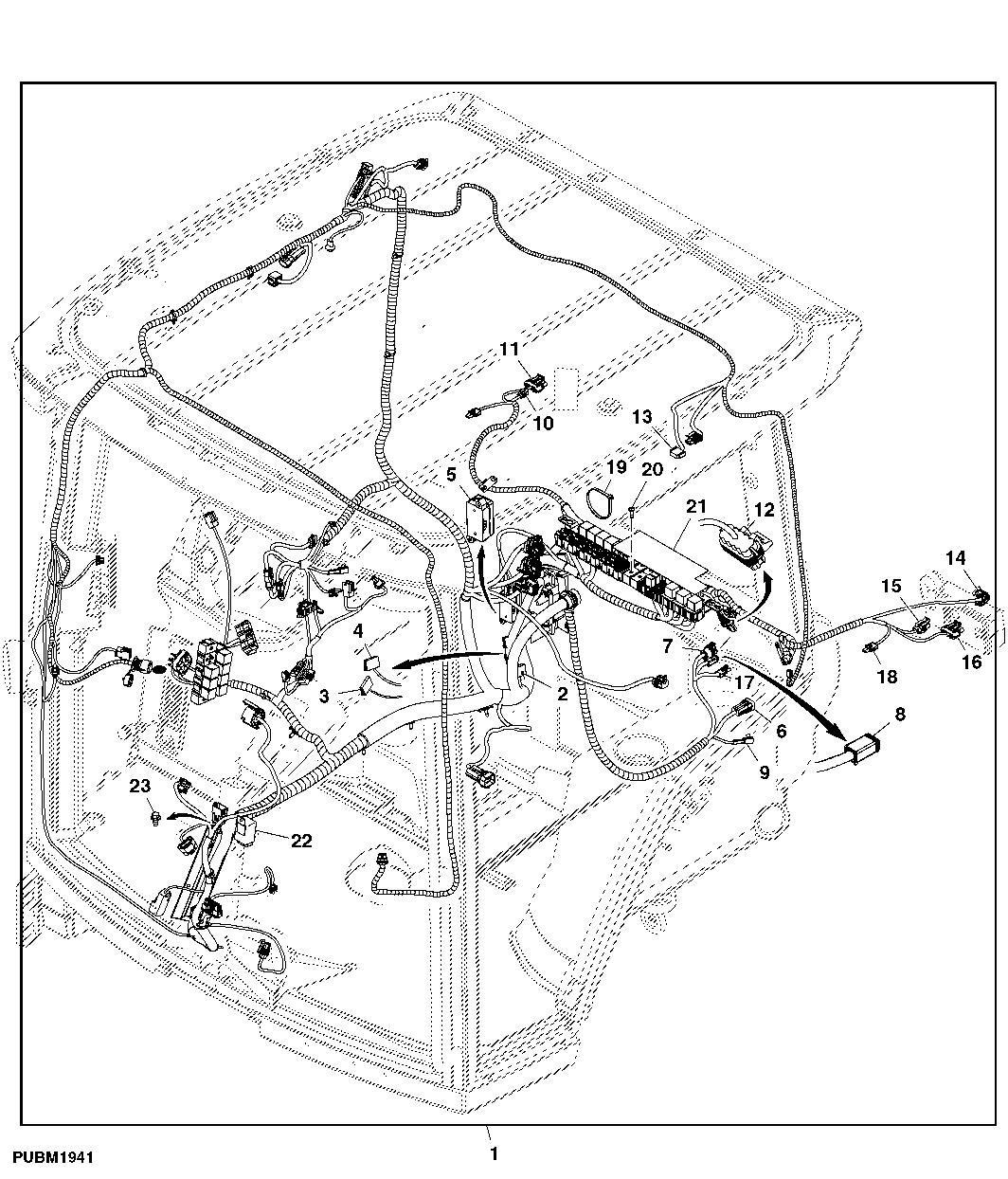

WIRING HARNESS (CAB) (3/3)

WIRING HARNESS (CAB) (3/3)

WIRING HARNESS (CAB) (3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

WIRING HARNESS (CAB) (3/3)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307688	1	Cab Wiring Harness	SUB FOR RE297556
2	57M8847	1	Elec. Connector Housing	(SPLICE PACK 6)
2	57M8849	1	Electrical Connector Cap	-
2	57M8848	1	Elec.Connect Locking Device	-
3	57M8848	1	Elec.Connect Locking Device	(SPLICE PACK 7)
3	57M8848	1	Elec.Connect Locking Device	-
3	57M8849	1	Electrical Connector Cap	-
4	57M8847	1	Elec. Connector Housing	(SPLICE PACK 8)
4	57M8848	1	Elec.Connect Locking Device	-
4	57M8849	1	Electrical Connector Cap	-
5	RE48875	1	Junction Block	-
6	57M7699	1	Elec. Connector Terminal	-
6	57M7697	1	Electrical Connector Assy	(TRAILER CONNECTOR)
7	RE210023	1	Electrical Connector Assy	(IMPLEMENT CAN DATA)
8	57M8015	1	Electrical Connector Assy	(IMPLEMENT CAN DATA)
8	57M8016	1	Elec.Connect Locking Device	-
9	57M7293	1	Elec. Connector Housing	(ENGINE HARNESS)
9	57M7295	1	Elec.Connect Locking Device	-
10	57M7254	1	Elec. Connector Housing	(RIGHT REAR FENDER FLOOD)
10	57M7289	1	Elec.Connect Locking Device	-
11	57M7469	1	Electrical Connector Assy	-
11	57M8416	1	Elec. Connector Housing	(RIGHT TAIL LAMP)
12	57M7262	1	Elec. Connector Housing	(TECU CONNECTOR)
12	57M8907	1	Elec.Connect Locking Device	-
13	57M7255	1	Elec. Connector Housing	(SSU CONNECTOR)
13	57M7290	1	Elec. Connector Accessory	-
13	57M7290	1	Elec. Connector Accessory	-
14	57M7260	1	Elec. Connector Housing	(LEFT HITCH UP/DOWN SWITCH)
14	57M7291	1	Electrical Connector Assy	-
15	57M7254	1	Elec. Connector Housing	LEFT REAR FENDER FLOOD
15	57M7289	1	Elec.Connect Locking Device	-
16	57M8416	1	Elec. Connector Housing	LEFT TAIL LAMP
16	57M7469	1	Electrical Connector Assy	-
17	RE12363	1	Electrical Connector Assy	(HITCH DOWN SWITCH)
17	R78053	1	Electrical Connector Assy	-
18	RE12363	1	Electrical Connector Assy	(LEFT EXTREMITY LIGHT)
18	R78053	1	Electrical Connector Assy	-
19	R105388	1	Tie Band	-
20	19M8649	8	Screw	M6 X 20
21	R219320	1	Label	-
22	AL202032	1	Flasher	SUB FOR AL32891
23	37M7059	1	Screw	M5 X 12, SUB FOR 37M7089
